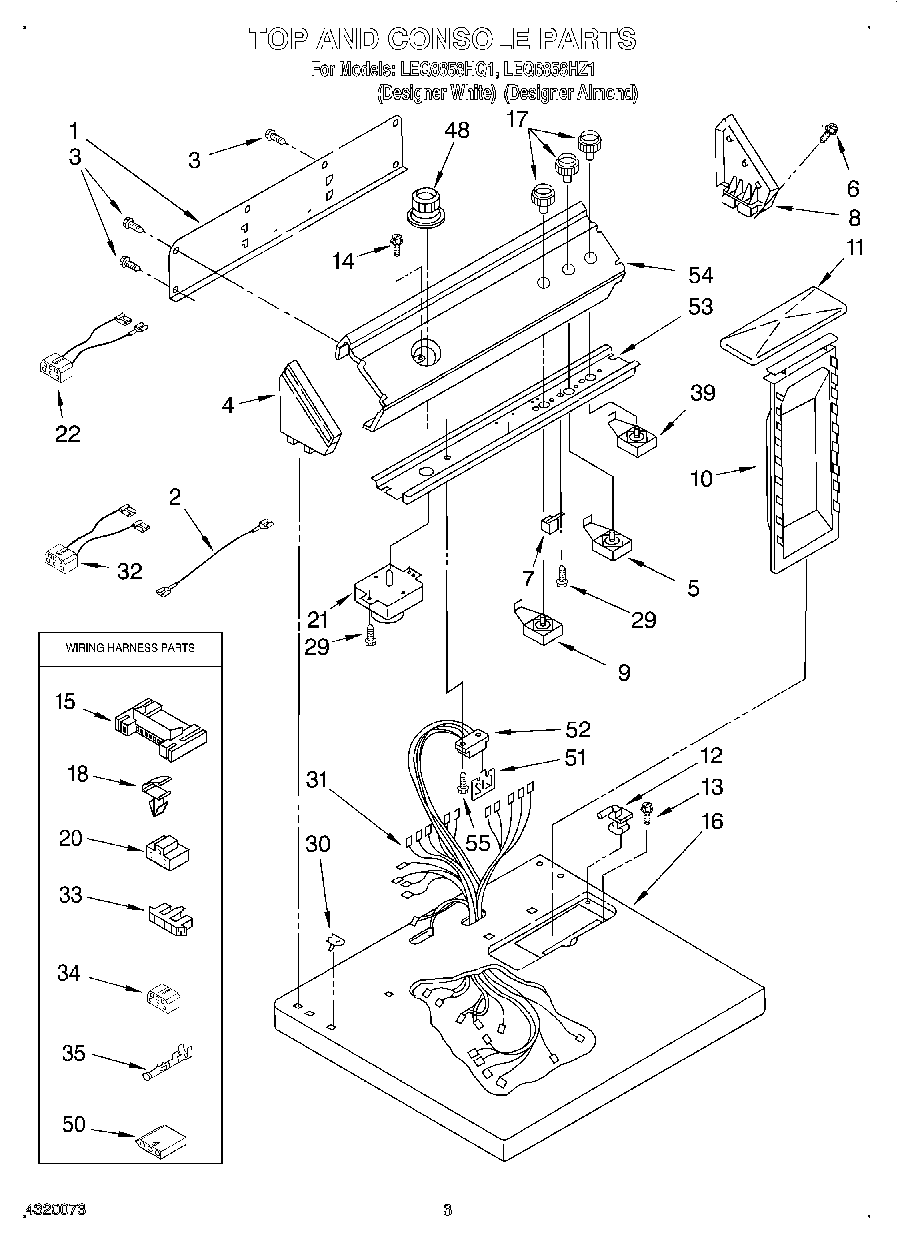

LEQ8858HZ1 02 – SECTION

LEQ8858HZ1 02 – SECTION

Written by

in

LEQ8858HZ1 02 – SECTION

Products

PositionProduct
Dryer
1Panel, Rear Console
2Wire, Jumper (Black)
3WP693995 Whirlpool Screw
4Cap, End (L.H.)
4Cap, End (L.H.) (Almond)
5WP3405156 Whirlpool Switch
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8Cap, End (R.H.)
8Cap, End (R.H.) (Almond)
9WP3399640 Whirlpool Switch
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Almond)
16Top (White)
173957797 Whirlpool Knob
17WP3957796 Whirlpool Knob
18WP3394427 Whirlpool Clip
203401144 Whirlpool Connector
21WP3976570 Whirlpool Timer
223397695 Whirlpool Wire Harness
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Electric
32Wire-Jumper Assembly
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
39WP3398095 Whirlpool Dryer Start Relay
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
503936144 Whirlpool Connector
51WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
523391885 Whirlpool Connector
53Bracket, Control
54WPL 3976770
54WPL 3976771
55350938 Whirlpool Spray Gun
55WP72107 Whirlpool Touchup
55799344 Whirlpool Refrigerator Paint
55Almond (Uncut)
55350930 Whirlpool White Spray Paint
55SCREW
55350956 Whirlpool Spray Assembly
5572017 Whirlpool Appliance Touch-Up Paint White
