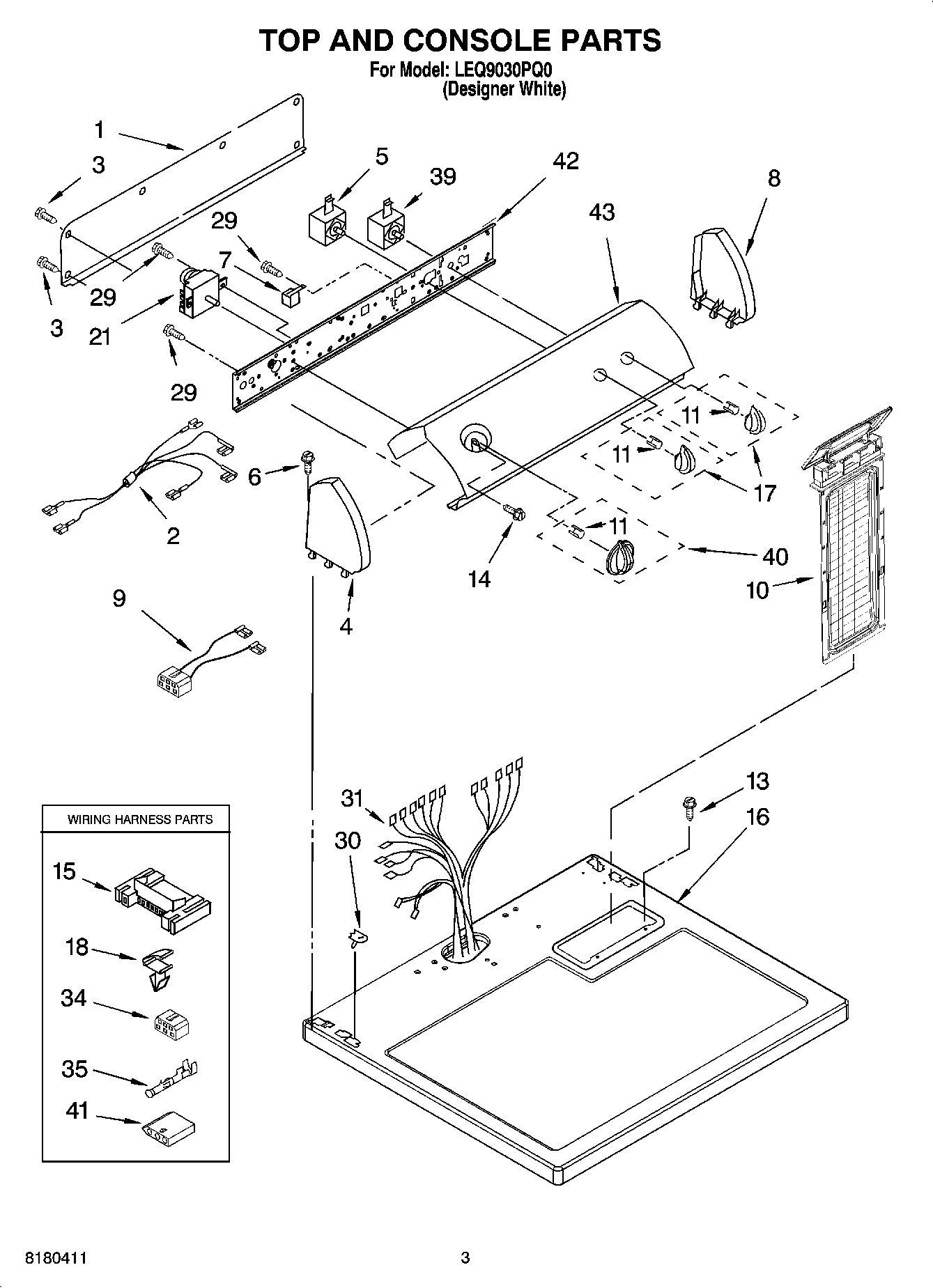

LEQ9030PQ0 02 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Wire, Jumper (PTS to Buzzer)
3	WP693995 Whirlpool Screw
5	WP3399640 Whirlpool Switch
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	W10820038 Whirlpool Endcap
9	3976562 Whirlpool Wire Harness
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
17	WPL 8544935
18	WP3394427 Whirlpool Clip
21	WP8299774 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
39	WP3404233 Whirlpool Dryer Starter Switch
40	W10756270 Whirlpool Dryer Timer Knob
41	3936144 Whirlpool Connector
42	Bracket, Control
43	Panel, Control
43	3404351 Whirlpool Dryer Rack
43	W11224254 Whirlpool Test Kit
43	4392065 Whirlpool Dryer Maintenance Kit
43	350930 Whirlpool White Spray Paint
43	799344 Whirlpool Refrigerator Paint
43	72017 Whirlpool Appliance Touch-Up Paint White
43	350938 Whirlpool Spray Gun
43	ACCESSORY PARTS
