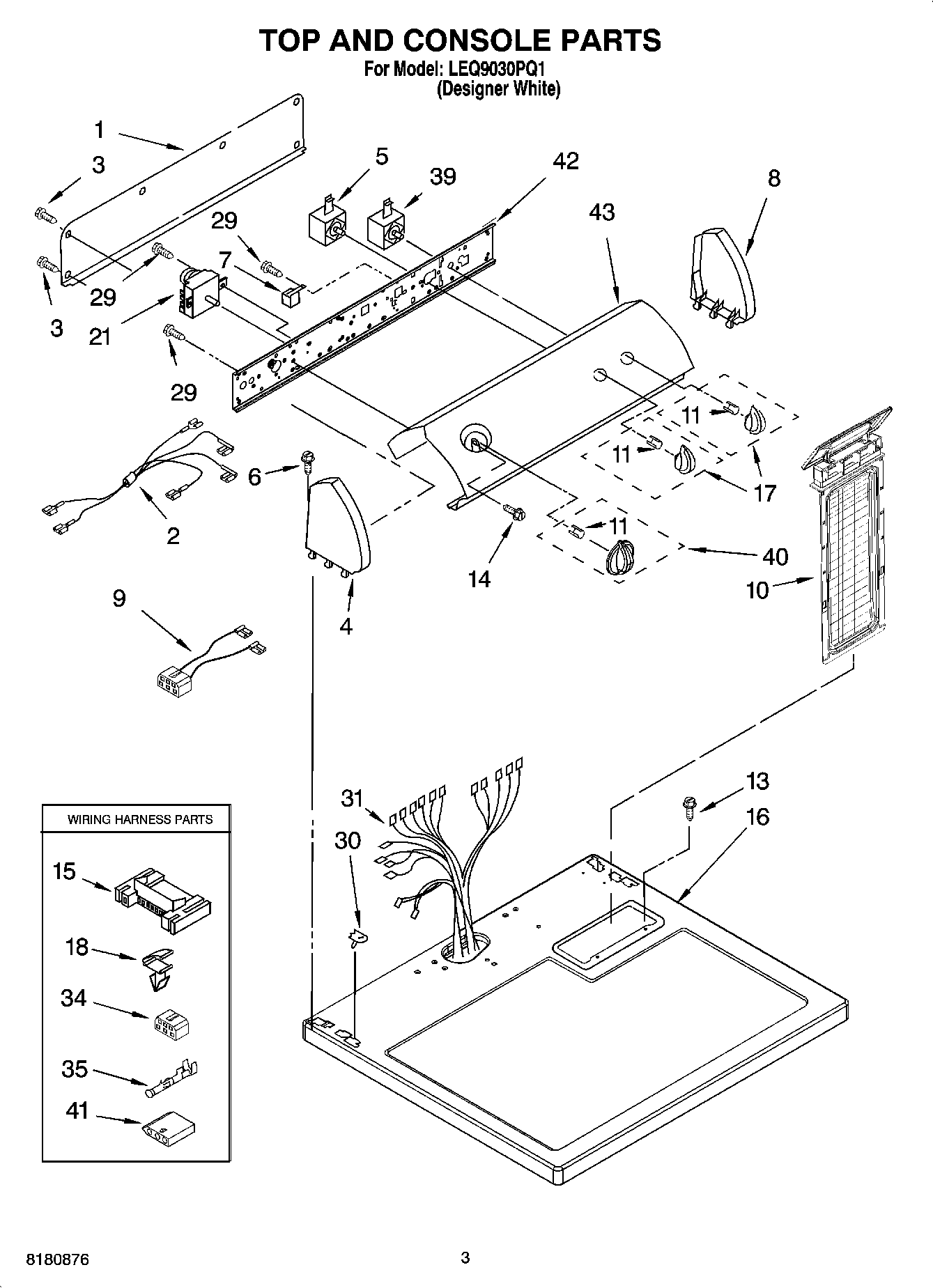

LEQ9030PQ1 02 – TOP AND CONSOLE PARTS

LEQ9030PQ1 02 – TOP AND CONSOLE PARTS

Written by

in

LEQ9030PQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (PTS to Buzzer)
3WP693995 Whirlpool Screw
5WP3399640 Whirlpool Switch
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8W10820038 Whirlpool Endcap
93976562 Whirlpool Wire Harness
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17WPL 8544935
18WP3394427 Whirlpool Clip
21WP8299774 Whirlpool Timer
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
34Block, Disconnect
35WP94614 Whirlpool Terminal
39WP8543274 Whirlpool PTS Switch
40W10756270 Whirlpool Dryer Timer Knob
413936144 Whirlpool Connector
42Bracket, Control
43Panel, Control
