LEQ9558KQ1 02 – SECTION

LEQ9558KQ1 02 – SECTION

Written by

in

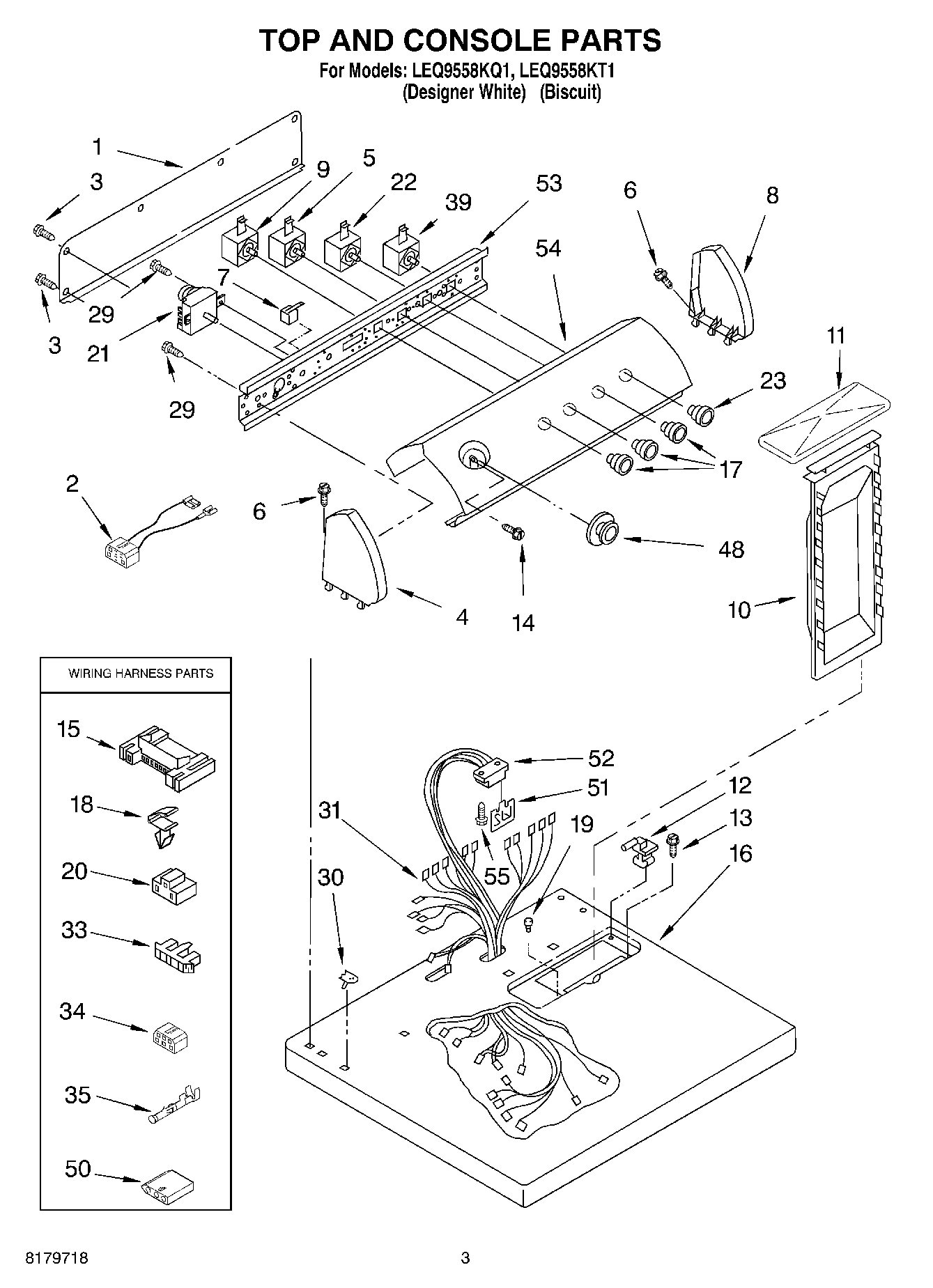

LEQ9558KQ1 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
23401695 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53405154 Whirlpool Primary Switch
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WPL 8271362
8W10820038 Whirlpool Endcap
98528330 Whirlpool Temperature Control Switch
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
173957797 Whirlpool Knob
17WP3957799 Whirlpool Knob
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
203401144 Whirlpool Connector
21WP3406725 Whirlpool Timer
223405152 Whirlpool Switch Assembly
23WPL 8271349
233957804 Whirlpool Knob
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318576506 Whirlpool Wire Harness
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
39WP3398094 Whirlpool Push To Start Switch
48WP3957754 Whirlpool Knob Assembly
48WP3957755 Whirlpool Knob
503936144 Whirlpool Connector
51WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
523391885 Whirlpool Connector
53Bracket, Control
54WPL 3977853
54WPL 3977854
554392901 Whirlpool Biscuit Spray Paint
5572017 Whirlpool Appliance Touch-Up Paint White
554392899 Whirlpool Biscuit Touch-Up Paint
55SCREW
55350938 Whirlpool Spray Gun
554392065 Whirlpool Dryer Maintenance Kit
55PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
55350930 Whirlpool White Spray Paint
55799344 Whirlpool Refrigerator Paint
