LEQ9857LW0 01 – SECTION

LEQ9857LW0 01 – SECTION

Written by

in

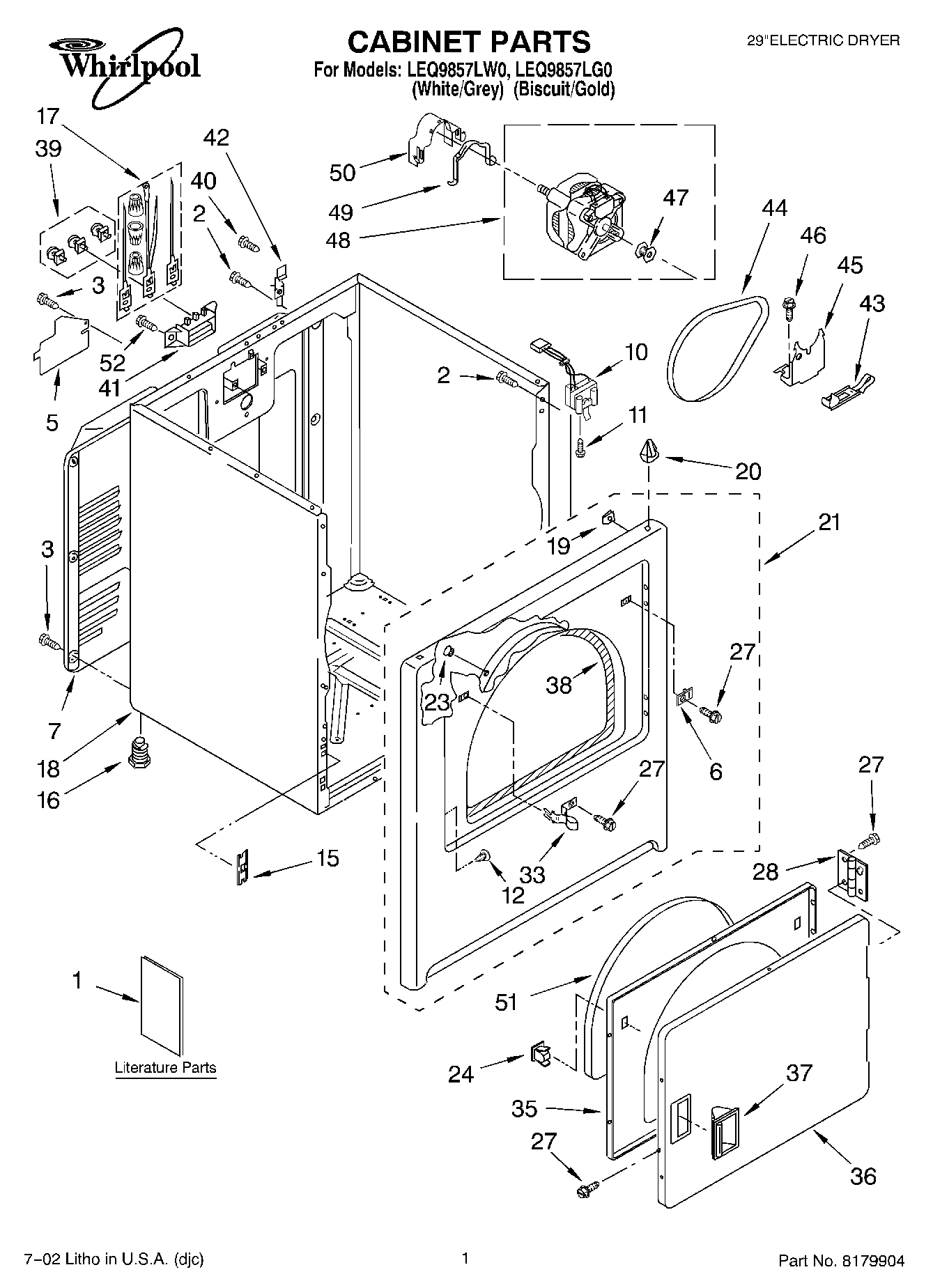

LEQ9857LW0 01 – SECTION

Products

PositionProduct
Dryer
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
2SCREW
3WP693995 Whirlpool Screw
5W11539855 Whirlpool Refrigerator Pump
6Plug, Strike Hole (Biscuit)
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP3404413 Whirlpool Plug
12Plug, Hinge Hole (4) (Biscuit)
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
18Cabinet (Biscuit)
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
21Panel, Front (Biscuit)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
36Door, Front (Biscuit)
37WP3405184 Whirlpool White Door Handle
37WP3405189 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40W10850756 Whirlpool Screw
41WP3397659 Whirlpool Terminal Block
42WP8066217 Whirlpool Hinge
43WP691366 Whirlpool Dryer Idler Pulley Assembly
44341241 Whirlpool Dryer Drum Belt
45WP348780 Whirlpool Base
463400500 Whirlpool Screw
47WP8066184 Whirlpool Dryer Motor Pulley
48279827 Whirlpool Dryer Drive Motor
49WP660658 Whirlpool Clamp
50WP3404162 Whirlpool Clamp
51SEAL-DOOR DRYER
52WP308685 Whirlpool Microwave Screw
