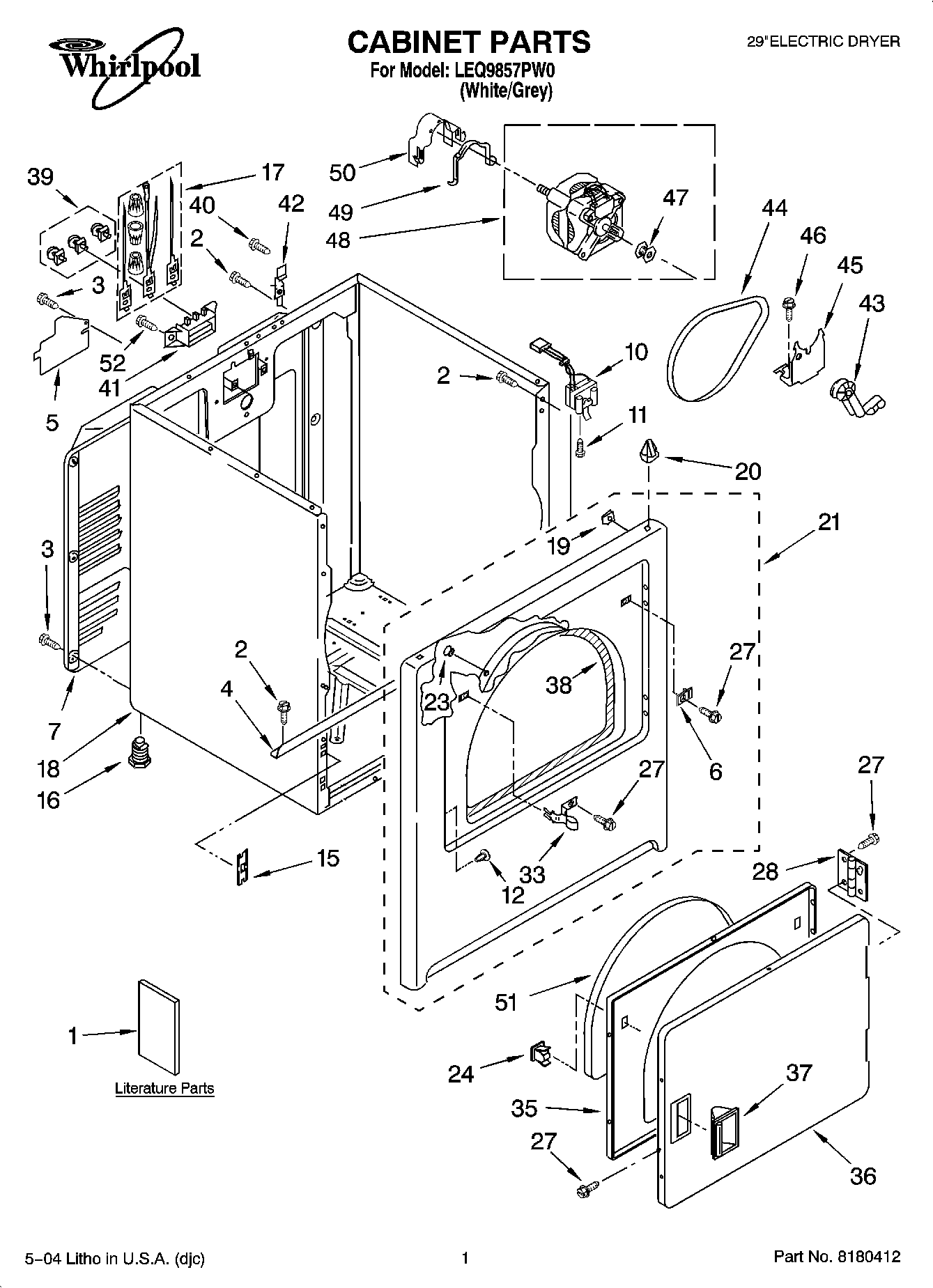

LEQ9857PW0 01 – CABINET PARTS

LEQ9857PW0 01 – CABINET PARTS

Written by

in

LEQ9857PW0 01 – CABINET PARTS

Products

PositionProduct
1Sheet, Cycle Feature
1WPL 677818
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Installation Instructions
1Wiring Diagram
1Use & Care Guide
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP3404413 Whirlpool Plug
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
37WP3405184 Whirlpool White Door Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40W10850756 Whirlpool Screw
41WP3397659 Whirlpool Terminal Block
42WP8066217 Whirlpool Hinge
43WP691366 Whirlpool Dryer Idler Pulley Assembly
44341241 Whirlpool Dryer Drum Belt
45WP348780 Whirlpool Base
463400500 Whirlpool Screw
47WP8066184 Whirlpool Dryer Motor Pulley
48279827 Whirlpool Dryer Drive Motor
49WP660658 Whirlpool Clamp
50WP3404162 Whirlpool Clamp
51SEAL-DOOR DRYER
52WP308685 Whirlpool Microwave Screw
