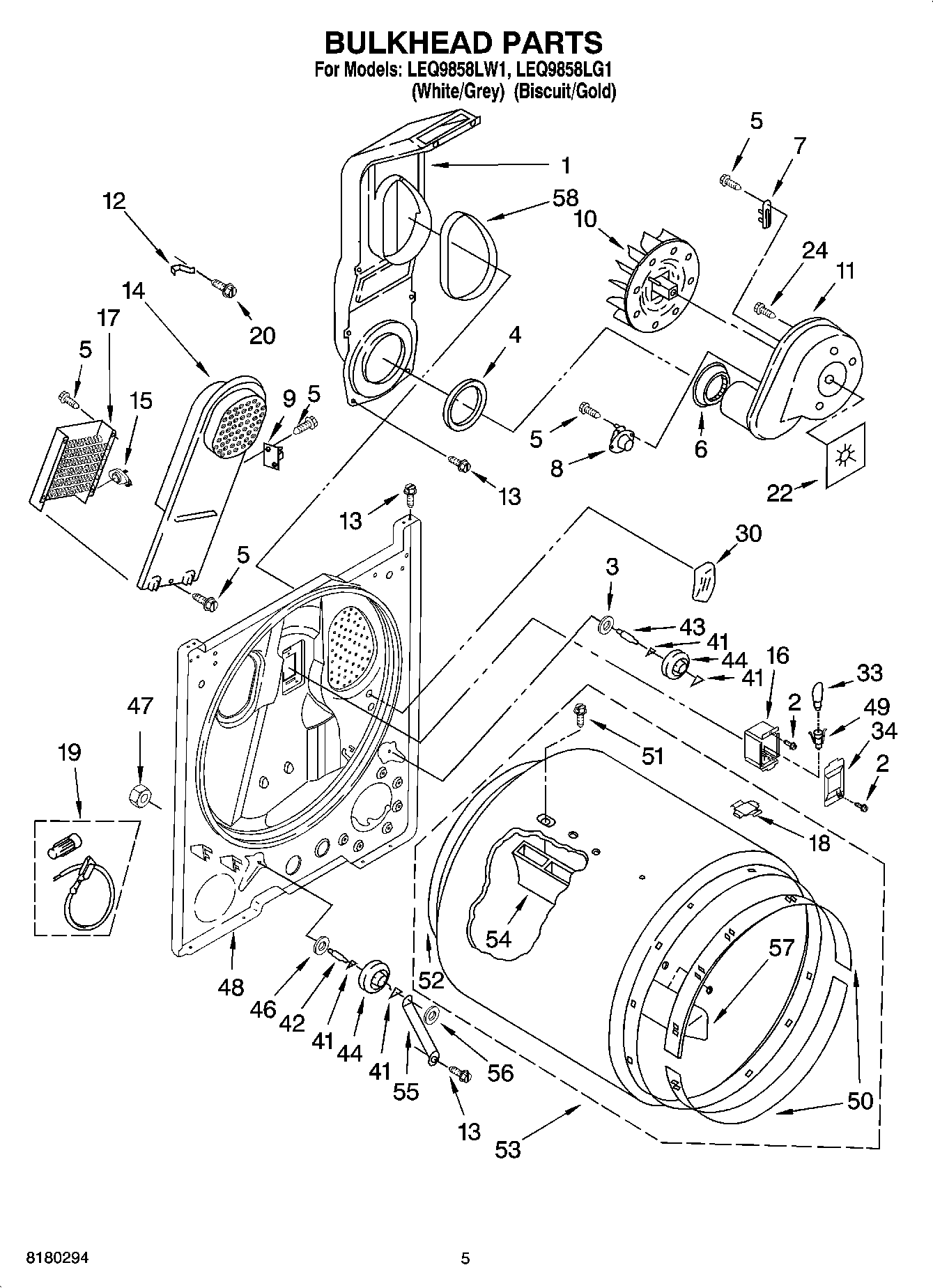

LEQ9858LW1 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP8318268 Whirlpool Thermostat
9	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	3977373 Whirlpool Bracket
17	279838 Whirlpool Dryer Heating Element 5400W
18	8066086 Whirlpool Plug
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	WP489463 Whirlpool Refrigerator Screw
22	Seal, Blower
24	WP488729 Whirlpool Refrigerator Door Screw
30	SENSOR KIT
33	WP22002263 Whirlpool Dryer 10W Light Bulb
34	W11226088 Whirlpool Lens Assembly
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	W10828905 Whirlpool Bulkhead OS1
49	W11700522 Whirlpool Socket
50	279441 Whirlpool Front Bearing Ring
51	WPW10109200 Whirlpool Screw
52	W10612022 Whirlpool Felt Seal
53	W10899578 Whirlpool Dryer Drum Assembly
54	BAFFLE-DRM
55	W11684613 Whirlpool Bracket
56	WP90296 Whirlpool Clip
57	WP3403636 Whirlpool Drum Baffle
58	SEAL
