LER1115AAW 04 – OVEN/BASE

LER1115AAW 04 – OVEN/BASE

Written by

in

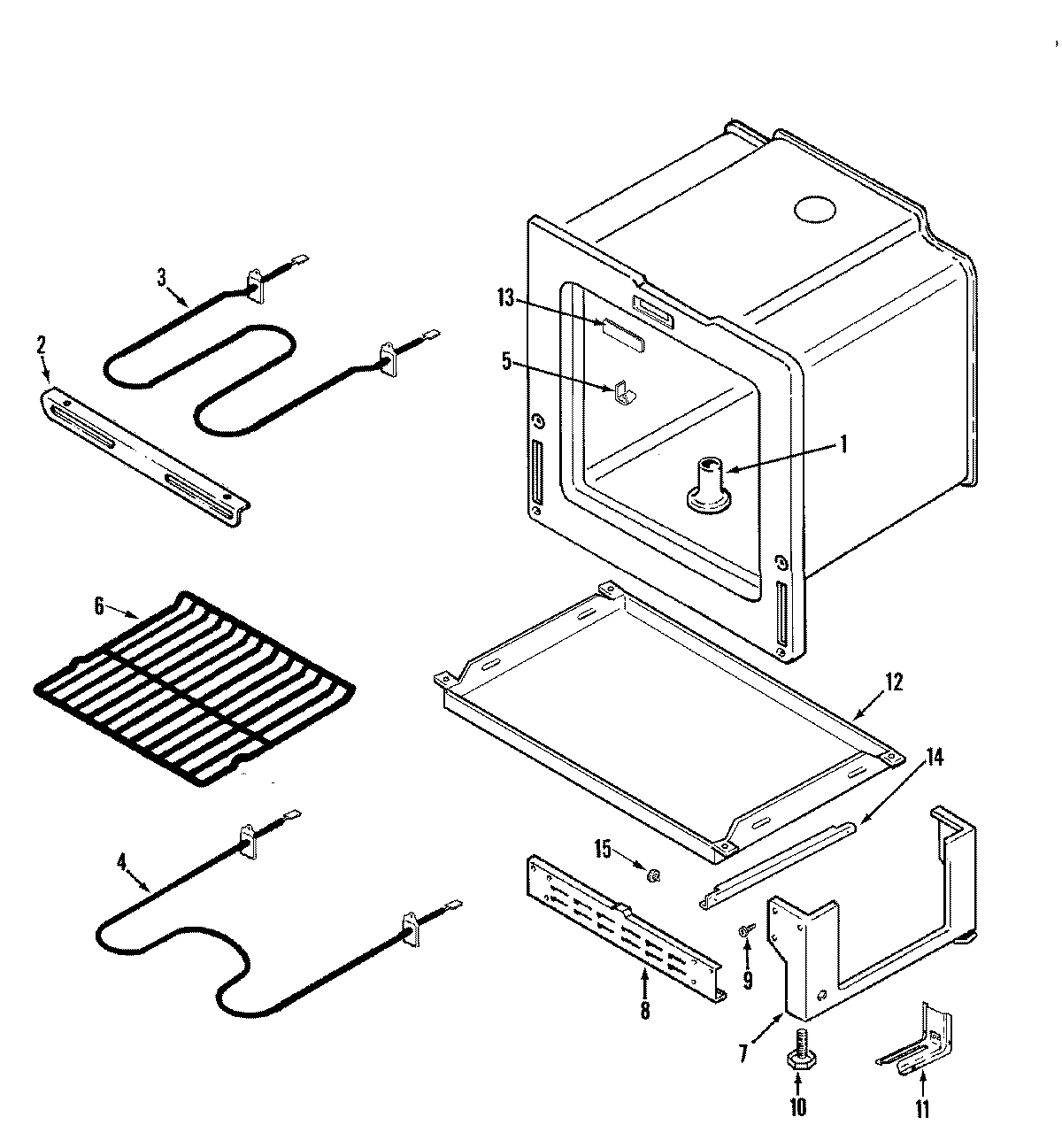

LER1115AAW 04 – OVEN/BASE

Products

PositionProduct
1MAY 8026P019-60
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
5WP7112P004-60 Whirlpool Thermal Clip
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12RETAINER, INSULATION (BOTTOM)
13PLUG, LOCK SLOT
14RUNNER, DRAWER
14SCREW
15WP74004078 Whirlpool Door Roller
15SHAFT, STORAGE DRAWER ROLLER
1574005230 Whirlpool Oven Lock Nut (8-32)
16MAY Y3401F02019
17MAY Y3413F01619
