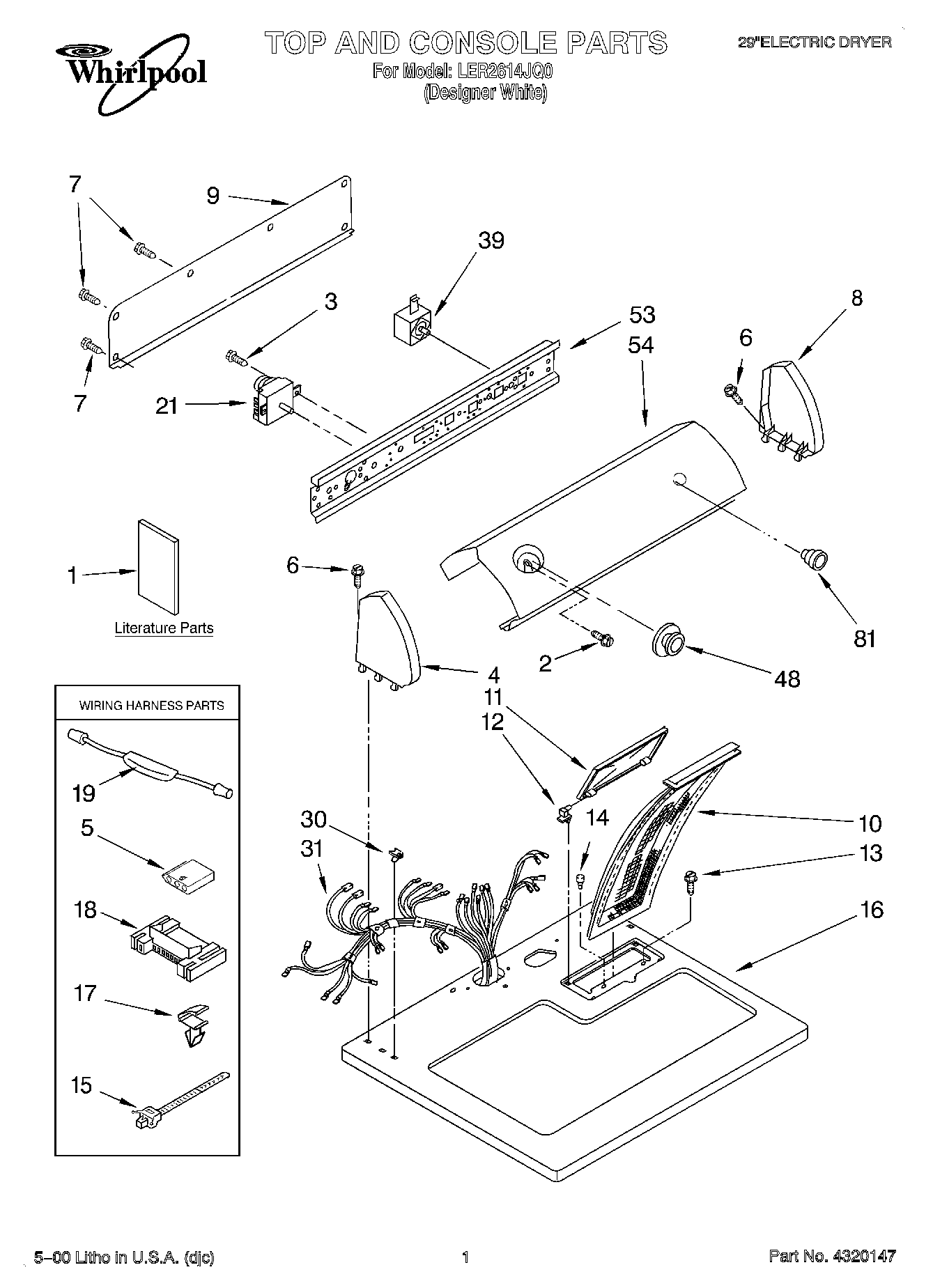

LER2614JQ0 01 – SECTION

Products

PositionProduct
1Label, Wiring Diagram
1Literature Parts (Guide, Use & Care)
1WPL LIT3397618
23400859 Whirlpool Screw
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Bumper, Lint Lid
15Tie, Cable
16Top
17WP3394427 Whirlpool Clip
183395683 Whirlpool Connector
19279872 Whirlpool Resistor
21Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48WP3957754 Whirlpool Knob Assembly
53Bracket, Control
54Panel, Control
813957804 Whirlpool Knob
81799344 Whirlpool Refrigerator Paint
8172017 Whirlpool Appliance Touch-Up Paint White
81350938 Whirlpool Spray Gun
81350930 Whirlpool White Spray Paint
