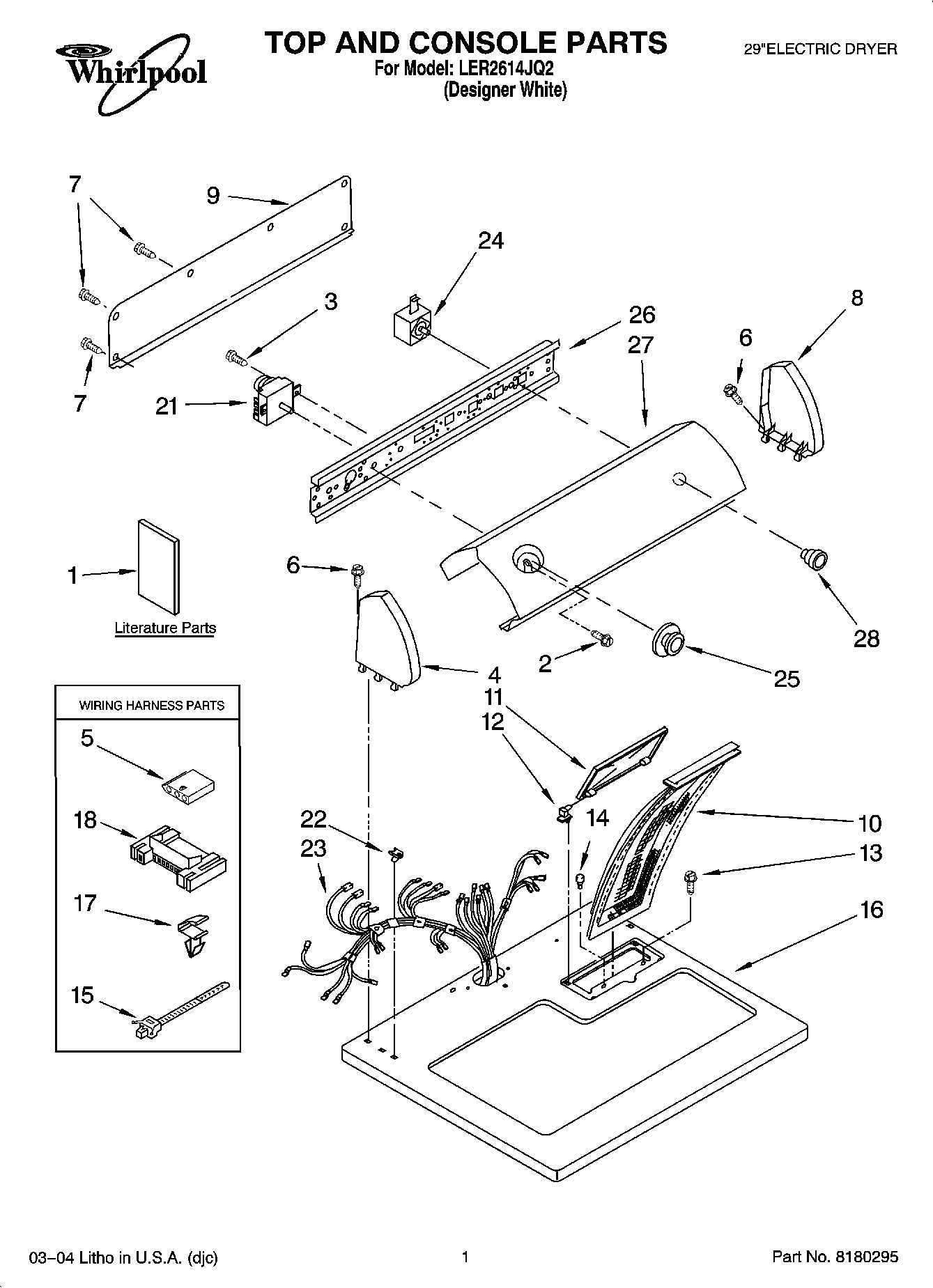

LER2614JQ2 01 – TOP AND CONSOLE PARTS

LER2614JQ2 01 – TOP AND CONSOLE PARTS

Written by

in

LER2614JQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Installation Instructions)
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Use & Care Guide)
1Literature Parts (Label, Wiring Diagram)
1Dryer
23400859 Whirlpool Screw
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Bumper, Lint Lid
15Tie, Cable
16Top
17WP3394427 Whirlpool Clip
183395683 Whirlpool Connector
21WP8299780 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23Harness, Wiring
24WP3977456 Whirlpool Start Switch
25WP3957754 Whirlpool Knob Assembly
26Bracket, Control
27Panel, Control
28350938 Whirlpool Spray Gun
28ACCESSORY PARTS
2872017 Whirlpool Appliance Touch-Up Paint White
283957804 Whirlpool Knob
28799344 Whirlpool Refrigerator Paint
284392065 Whirlpool Dryer Maintenance Kit
28WP689790 Whirlpool Dryer Rack
28W11224254 Whirlpool Test Kit
28350930 Whirlpool White Spray Paint
