LER3330AAB 01 – BODY

LER3330AAB 01 – BODY

Written by

in

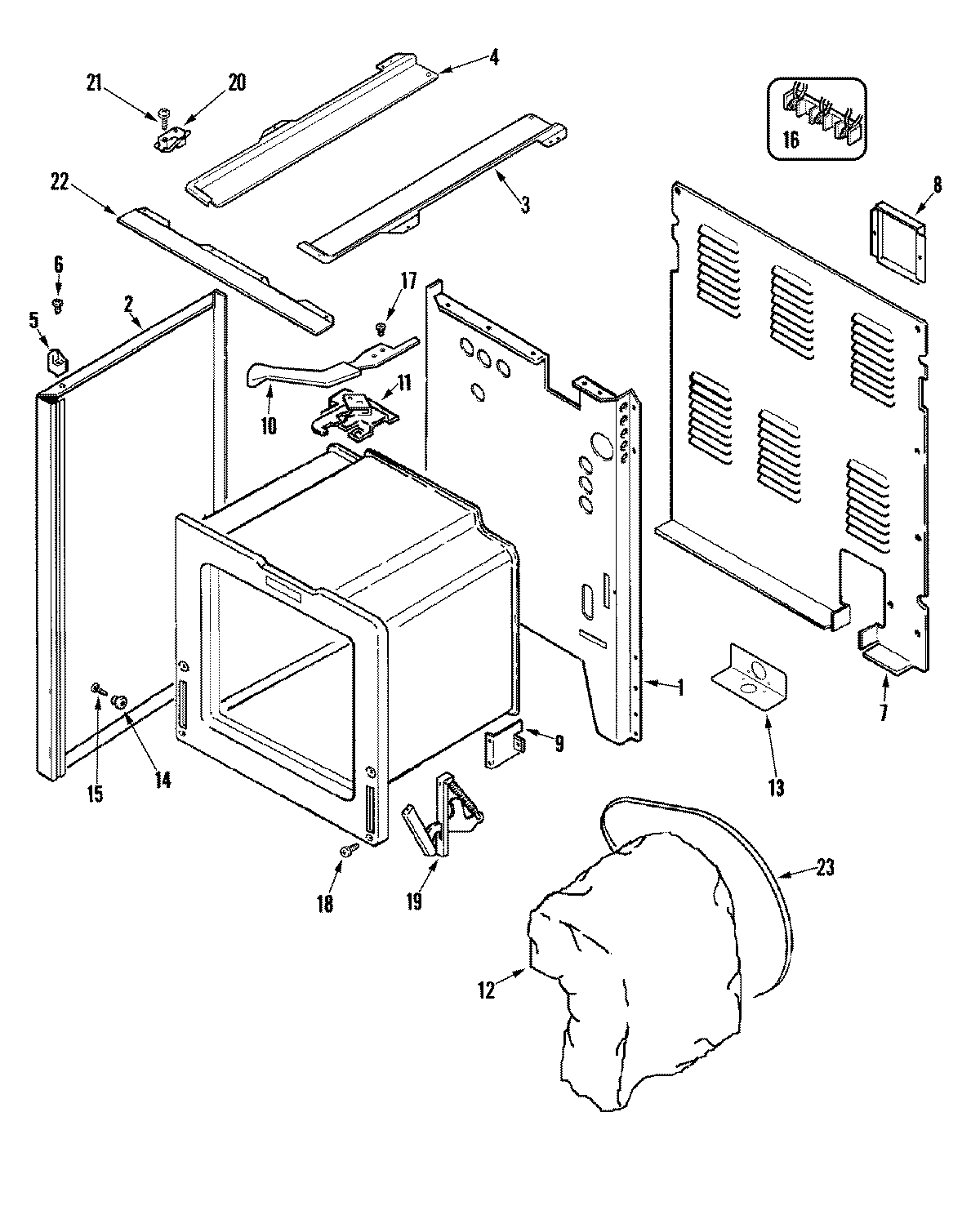

LER3330AAB 01 – BODY

Products

PositionProduct
1MAY 74009677
2MAY 74003283
3MAY 74003378
4MAY 74003379
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6SCREW (8BX3/8-NI)
7MAY 74009744
8MAY 74010256
8MAY 71001394
9SUPPORT,OVEN REAR
10MAY 74003005
11SCREW
11MAY 74009710
1174003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12MAY 74009201
12WP74010942 Whirlpool Insulation
13W10190166 Whirlpool Service Bracket
13SCREW, GROUND (GRN)
14MAY 8004P024-60
15W11693756 Whirlpool Screw Assembly
15MAY 74007476
16WPW10245259 Whirlpool Terminal Block
17SCREW, LEVER
18SCREW (10-24X5/16-NI)
19HINGE-OVEN DOOR
1974011142 Whirlpool Stove Range Oven Door Hinge and Spring
20MAY 74009591
21MAY 7101P330-60
22MAY 74003384
23MAY 74003385
