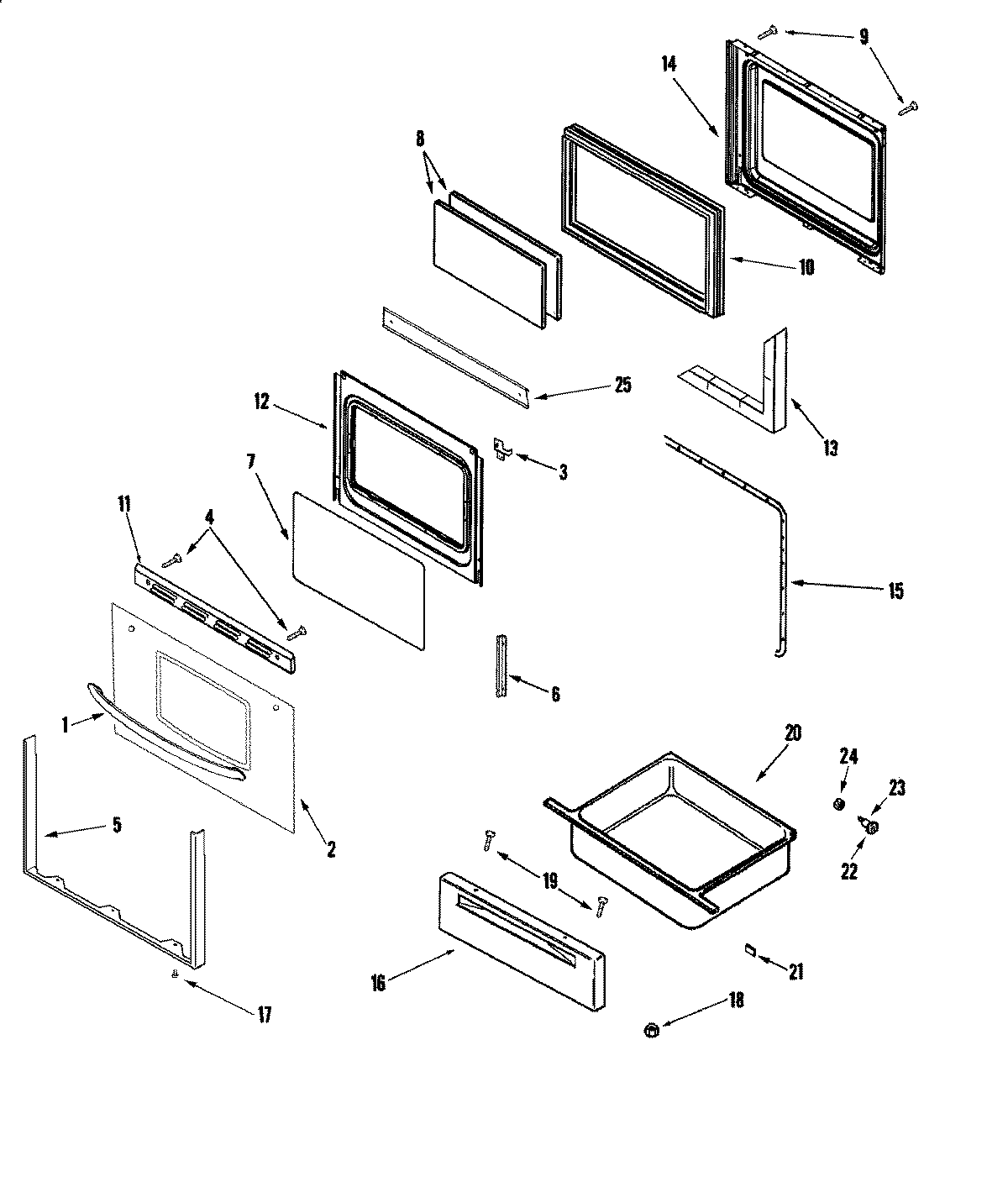

LER3330AAB 03 – DOOR/DRAWER (SERIES 10)

LER3330AAB 03 – DOOR/DRAWER (SERIES 10)

Written by

in

LER3330AAB 03 – DOOR/DRAWER (SERIES 10)

Products

PositionProduct
1MAY 74010338
1MAY 7701P539-60
2MAY 74010362
2TAPE, FOIL 29“ X 2“
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
4MAY 74001521
5WP74004224 Whirlpool Tape
5MAY 74004324
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10FRAME, GLASS
11MAY 74010239
12MAY 7101P356-60
12MAY 74009502
13INSULATION, OVEN DOOR
14MAY 74003642
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
16MAY 74009685
17WP98008545 Whirlpool Screw
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21WP74005546 Whirlpool RU Spacer
22WP74004078 Whirlpool Door Roller
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
