LER3330AAB 04 – DOOR/DRAWER (SERIES 15)

LER3330AAB 04 – DOOR/DRAWER (SERIES 15)

Written by

in

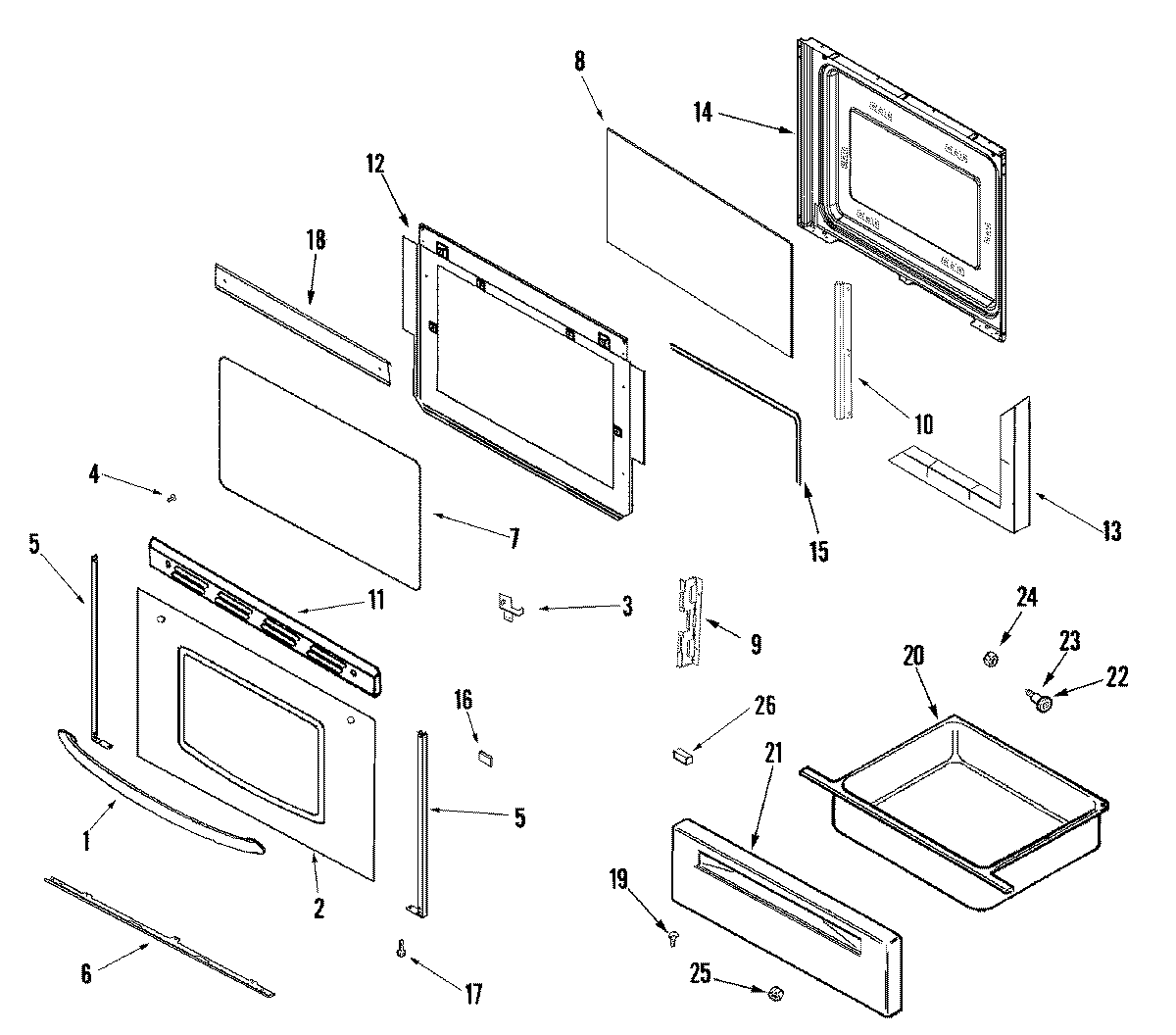

LER3330AAB 04 – DOOR/DRAWER (SERIES 15)

Products

PositionProduct
1MAY 74010338
2MAY 74010362
2TAPE, FOIL 29“ X 2“
3SCREW, 8 X 1/2
33801F831-45 Whirlpool Bracket Assembly
3SCREW (10ABX1/4P TR ZN)
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
5WP3608F117-70 Whirlpool Door Trim
5WP74004224 Whirlpool Tape
5WP3608F116-70 Whirlpool Door Trim
6SUPPORT, GLASS (BLK)
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
9MAY 74003650
9SCREW
103801F886-51 Whirlpool Mounting Bracket
11MAY 74010239
123601F373-51 Whirlpool Baffle
12MAY 7101P356-60
13INSULATION, OVEN DOOR
14LINING, DOOR
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
16SPACER, RUBBER (BLK-SQUARE)
17WP98008545 Whirlpool Screw
20MAY 74008337
21MAY 74009685
22WP74004078 Whirlpool Door Roller
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WPW10131078 Whirlpool Nut Assembly
26WP74005546 Whirlpool RU Spacer
