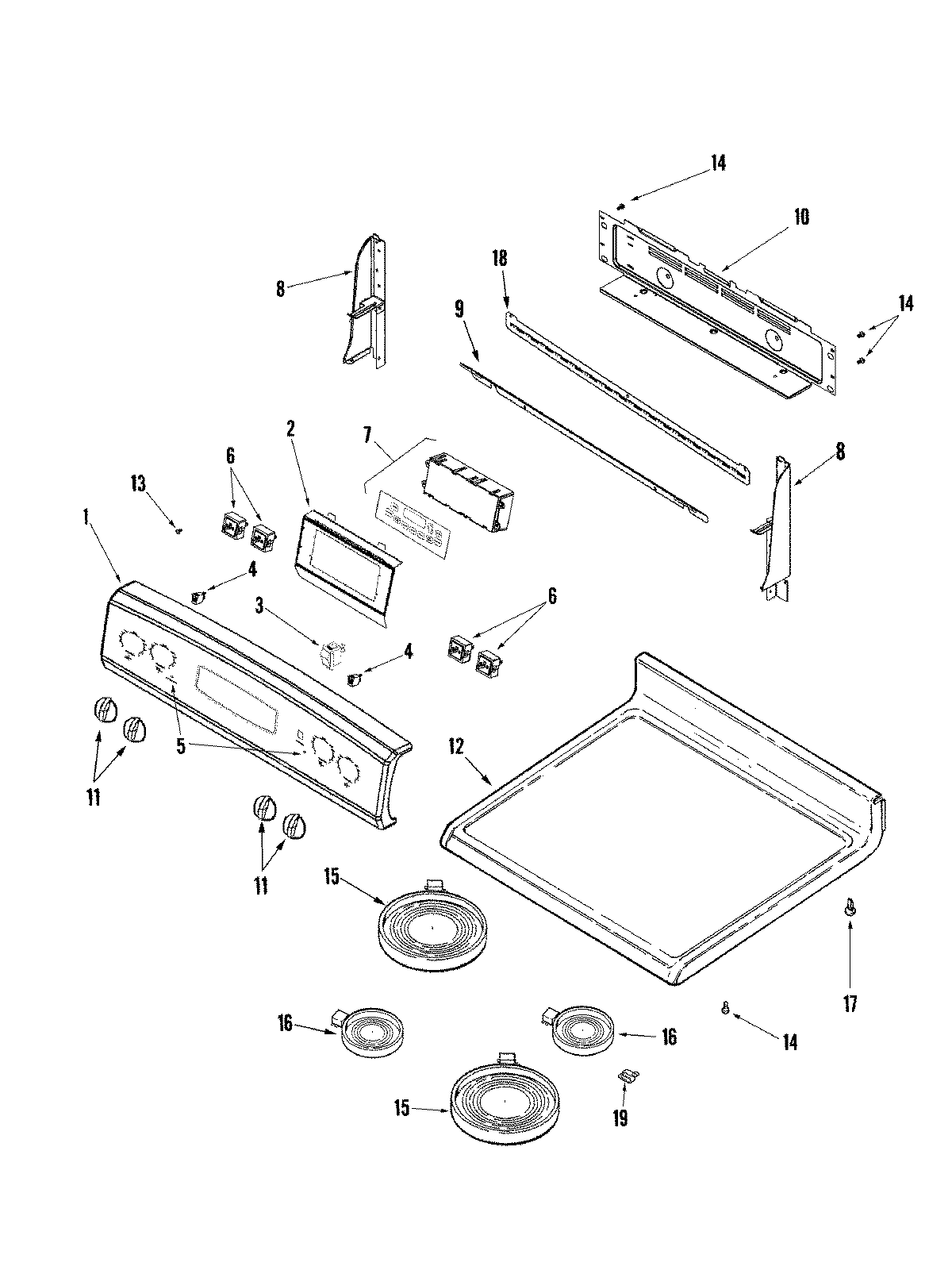

LER3330AAW 02 – CONTROL PANEL/TOP ASSEMBLY

LER3330AAW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

LER3330AAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010740
2MAY 74008716
374008717 Whirlpool White Rocker Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
75701M760-60 Whirlpool Electronic Control Board
8MAY 74010212
8MAY 74010211
8WP74003976 Whirlpool Screw
8WP98008544 Whirlpool Screw Assembly
9MAY 74009701
10MAY 74009943
11WP74010331 Whirlpool White Knob
12MAY 74010368
13SCREW
14SCREW (6ABX.25-ZN)
15W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18WP90767 Whirlpool Screw
18MAY 74009978
198004P093-60 Whirlpool Support C
20MAY 74003285
