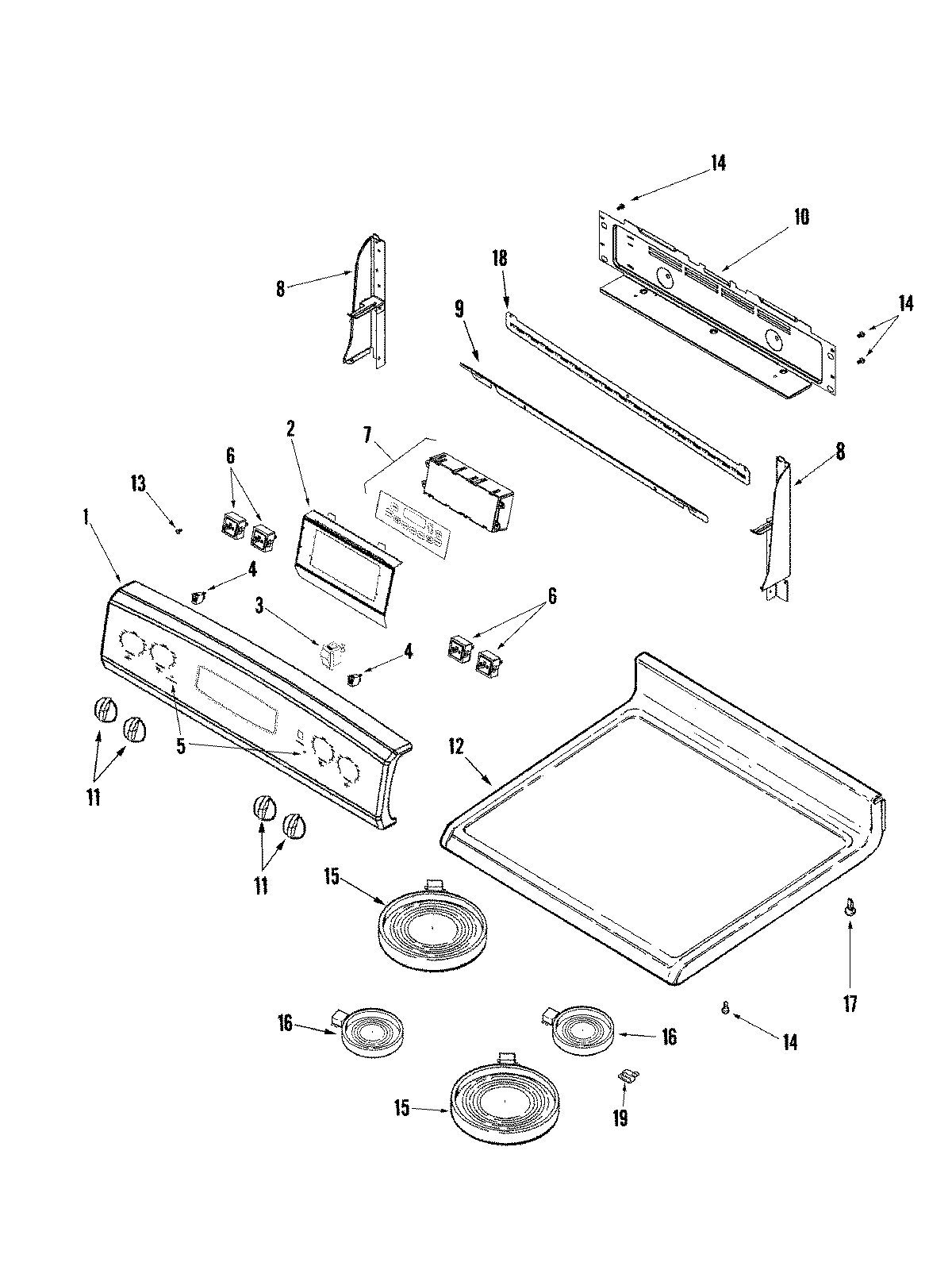

LER3330AAZ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74010878
2	MAY 74008716
3	SWITCH, ROCKER (BLK)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P239-60 Whirlpool Oven Switch
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	5701M760-60 Whirlpool Electronic Control Board
8	WP98008545 Whirlpool Screw
8	WP74003976 Whirlpool Screw
8	MAY 74010202
8	MAY 74010201
9	MAY 74009701
10	MAY 74009943
11	MAY 74010332
12	MAY 74010369
13	SCREW
14	SCREW (6ABX.25-ZN)
15	W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W11189172 Whirlpool Glide Drawer
18	MAY 74009978
18	WP90767 Whirlpool Screw
19	8004P093-60 Whirlpool Support C
20	MAY 74003285
