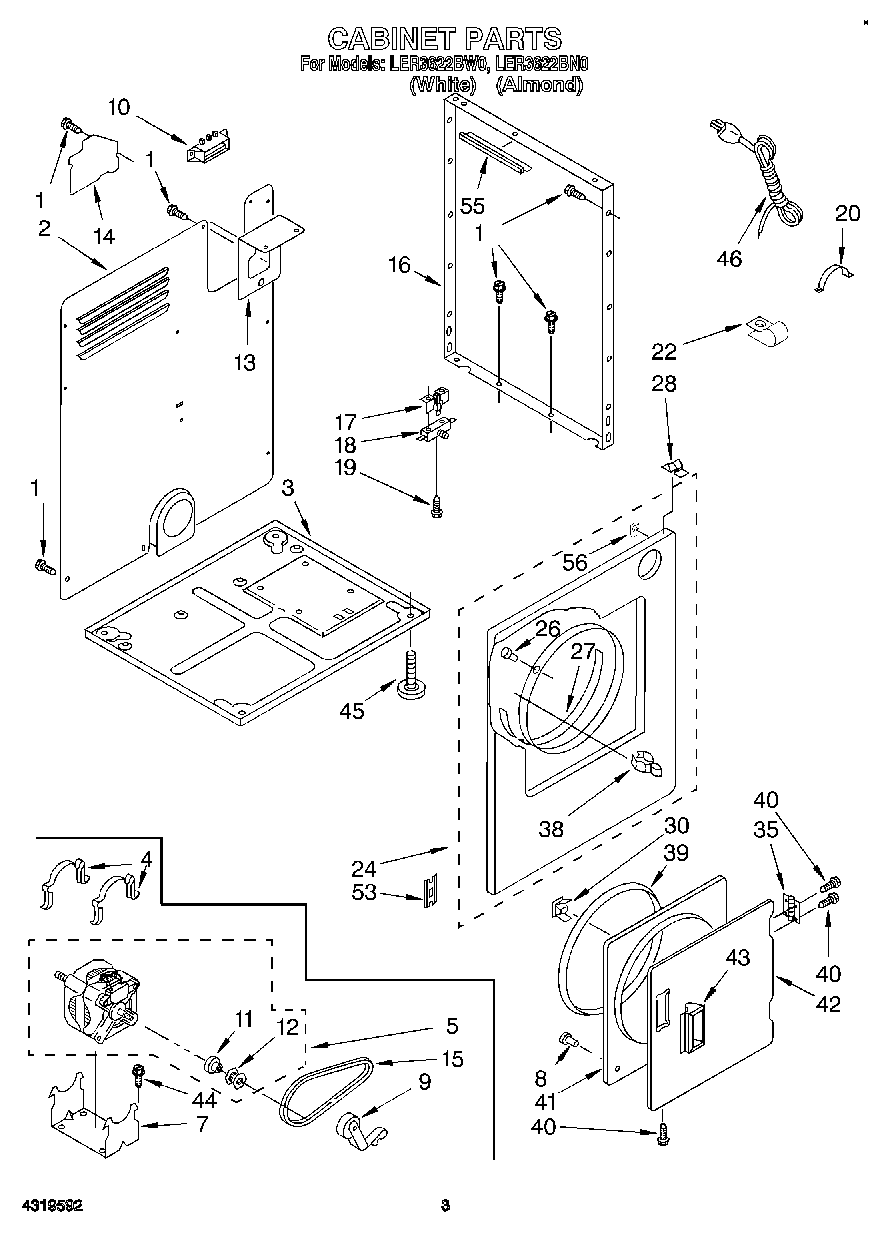

LER3622BN0 02 – SECTION

Products

Position	Product
1	SCREW
2	Panel, Rear (240 Volt)
3	WP348726 Whirlpool Base Assembly
4	WP660658 Whirlpool Clamp
5	279827 Whirlpool Dryer Drive Motor
7	696541 Whirlpool Base
8	238614 Whirlpool Bumper Hinge
9	WP691366 Whirlpool Dryer Idler Pulley Assembly
10	279320 Whirlpool Dryer Rear Terminal Block Kit
11	WP3393657 Whirlpool Belt Retainer
12	8066051 Whirlpool Motor Pulley
13	279304 Whirlpool Block Terminal
14	W11736322 Whirlpool Cover Assembly
15	3394652 Whirlpool Drum Belt
16	Panel, Side (White)
16	Panel, Side (Almond)
17	WP691581 Whirlpool Actuator
18	W10820036 Whirlpool Door Switch Kit
19	WP98129 Whirlpool Screw
20	8528351 Whirlpool Clip
22	W11712577 Whirlpool Clip
24	280044 Whirlpool Panel
24	Front Panel Assembly (xAlmond)
26	279220 Whirlpool Clip
27	279264 Whirlpool Bearing and Seal Kit
28	WP345670 Whirlpool Lock
30	WP3389441 Whirlpool Door Catch
35	Hinge & Pin Assembly (2)
38	279570 Whirlpool Dryer Door Latch Kit
39	W11613302 Whirlpool Door Seal
40	WP694091 Whirlpool Screw
41	Door, Rear
42	Door, Front (Almond)
42	Door, Front (White)
43	Handle, Door (Almond)
43	WP3405184 Whirlpool White Door Handle
44	WP3390631 Whirlpool Screw
45	WP233550 Whirlpool Leveling Feet
46	PT220L Whirlpool Dryer Power Cord
53	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
55	686770 Whirlpool Support Bracket
56	WP98234 Whirlpool Nut
