LER3622BN0 03 – SECTION

Products

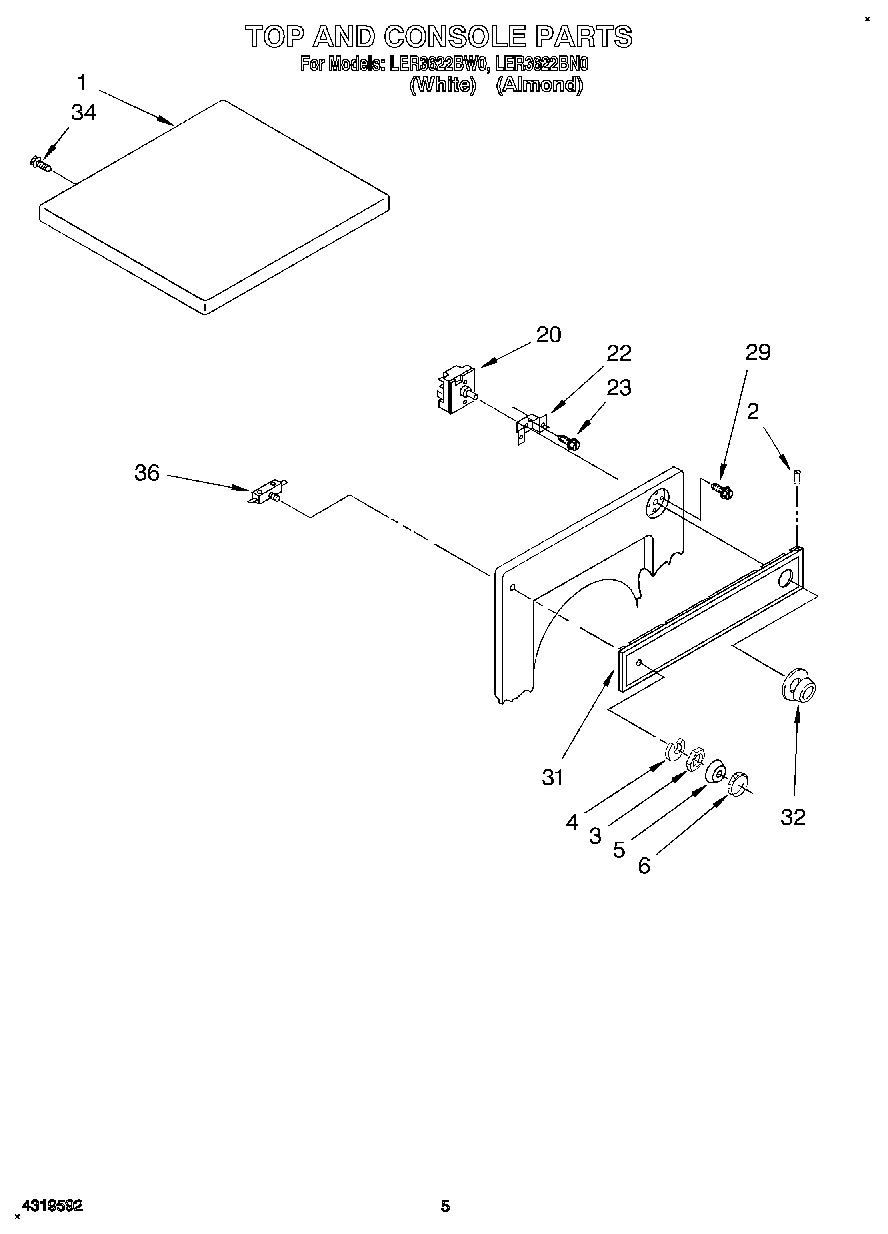

Position	Product
1	345703 Whirlpool White Maintop
1	Top (Almond)
2	Rivet, Plastic (4)
3	Nut, Hex
4	Lockwasher
5	Ring, Trim
6	Nut, Knurled
20	WP8563882 Whirlpool Timer Assembly
22	348171 Whirlpool Bracket
23	303776 Whirlpool Dishwasher Screw
29	WPW10139210 Whirlpool Screw
31	Panel, Control (White)
31	Panel, Control (Almond)
32	Timer Knob & Dial (White)
32	Timer Knob & Dial (Almond)
34	SCREW
36	Switch, Push-To-Start
