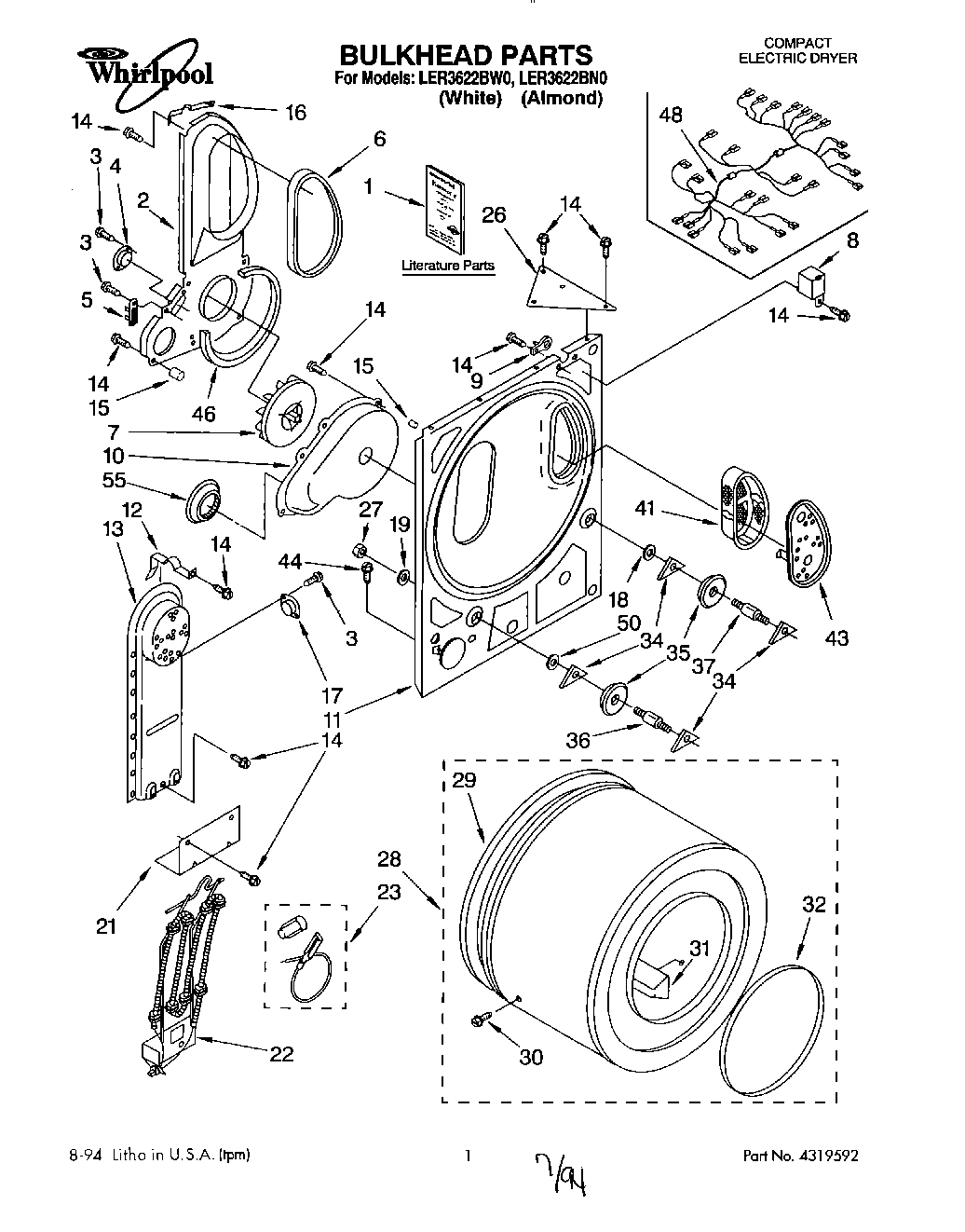

LER3622BW0 01 – SECTION

Products

Position	Product
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Label, Wiring Diagram)
1	Instructions, Installation
1	Literature Parts (Label, Operating Instructions)
2	Air Duct Assembly
3	WPW10139210 Whirlpool Screw
4	THRMST-FIX
5	WP3392519 Whirlpool Dryer Thermal Fuse
6	SEAL
7	WP696426 Whirlpool Wheel
8	WP694419 Whirlpool Buzzer Adjuster
9	279872 Whirlpool Resistor
10	696419 Whirlpool Housing
11	279848 Whirlpool Bulkhead
12	279771 Whirlpool Clip
13	Box, Heater
14	SCREW
15	W10491983 Whirlpool Tine Tip
16	345396 Whirlpool Clip
17	THRMST-FIX
18	Washer, Support
19	Washer, Support
21	Reflector, Heat
22	Element, Heater
23	279457 Whirlpool Dryer Heating Element Wide Spade Connection
26	345325 Whirlpool Gusset
27	WP3359452 Whirlpool Nut
28	3391834 Whirlpool Drum
29	SEAL
30	Screw, 11-16 x 7/8
31	685207 Whirlpool Dryer Baffle
32	WP3394508 Whirlpool Bearing Ring
34	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35	349241T Whirlpool Dryer Drum Support Roller Kit
36	SHAFT SUPPORT ROLLER DRYER
37	SHAFT SUPPORT ROLLER DRYER
41	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
44	WP3390631 Whirlpool Screw
46	Seal, Air Duct
48	Harness, Wiring
50	WP3388703 Whirlpool Washer
55	350938 Whirlpool Spray Gun
55	350956 Whirlpool Spray Assembly
55	72017 Whirlpool Appliance Touch-Up Paint White
55	799344 Whirlpool Refrigerator Paint
55	Leveler (Thinner)
55	WP72107 Whirlpool Touchup
55	Almond (Uncut)
55	W11233063 Whirlpool Shield Assembly
55	350930 Whirlpool White Spray Paint
