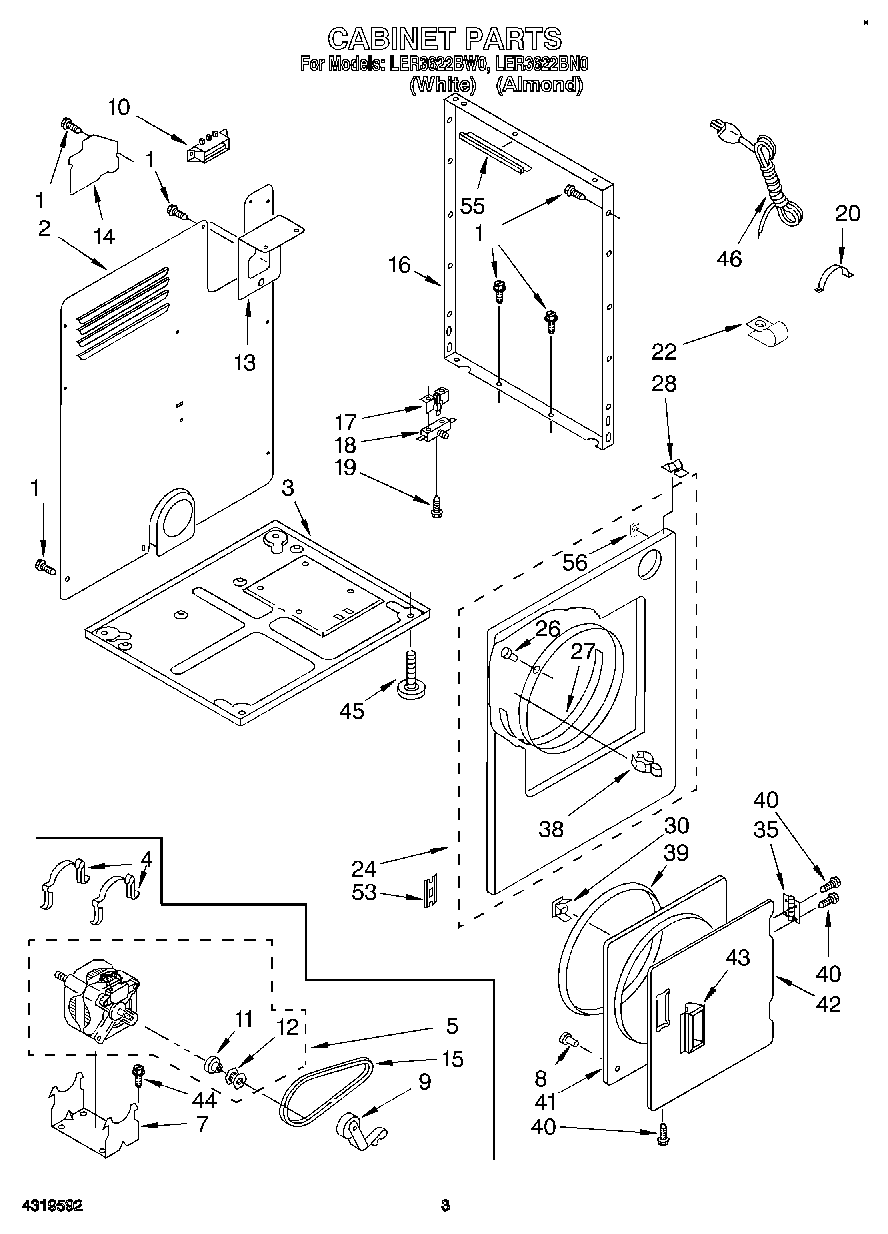

| 1 | SCREW |
| 2 | Panel, Rear (240 Volt) |
| 3 | WP348726 Whirlpool Base Assembly |
| 4 | WP660658 Whirlpool Clamp |
| 5 | 279827 Whirlpool Dryer Drive Motor |
| 7 | 696541 Whirlpool Base |
| 8 | 238614 Whirlpool Bumper Hinge |
| 9 | WP691366 Whirlpool Dryer Idler Pulley Assembly |
| 10 | 279320 Whirlpool Dryer Rear Terminal Block Kit |
| 11 | WP3393657 Whirlpool Belt Retainer |
| 12 | 8066051 Whirlpool Motor Pulley |
| 13 | 279304 Whirlpool Block Terminal |
| 14 | W11736322 Whirlpool Cover Assembly |
| 15 | 3394652 Whirlpool Drum Belt |
| 16 | Panel, Side (White) |
| 16 | Panel, Side (Almond) |
| 17 | WP691581 Whirlpool Actuator |
| 18 | W10820036 Whirlpool Door Switch Kit |
| 19 | WP98129 Whirlpool Screw |
| 20 | 8528351 Whirlpool Clip |
| 22 | W11712577 Whirlpool Clip |
| 24 | 280044 Whirlpool Panel |
| 24 | Front Panel Assembly (xAlmond) |
| 26 | 279220 Whirlpool Clip |
| 27 | 279264 Whirlpool Bearing and Seal Kit |
| 28 | WP345670 Whirlpool Lock |
| 30 | WP3389441 Whirlpool Door Catch |
| 35 | Hinge & Pin Assembly (2) |
| 38 | 279570 Whirlpool Dryer Door Latch Kit |
| 39 | W11613302 Whirlpool Door Seal |
| 40 | WP694091 Whirlpool Screw |
| 41 | Door, Rear |
| 42 | Door, Front (Almond) |
| 42 | Door, Front (White) |
| 43 | Handle, Door (Almond) |
| 43 | WP3405184 Whirlpool White Door Handle |
| 44 | WP3390631 Whirlpool Screw |
| 45 | WP233550 Whirlpool Leveling Feet |
| 46 | PT220L Whirlpool Dryer Power Cord |
| 53 | W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip |
| 55 | 686770 Whirlpool Support Bracket |
| 56 | WP98234 Whirlpool Nut |
