LER3622DQ1 03 – SECTION
Written by
in

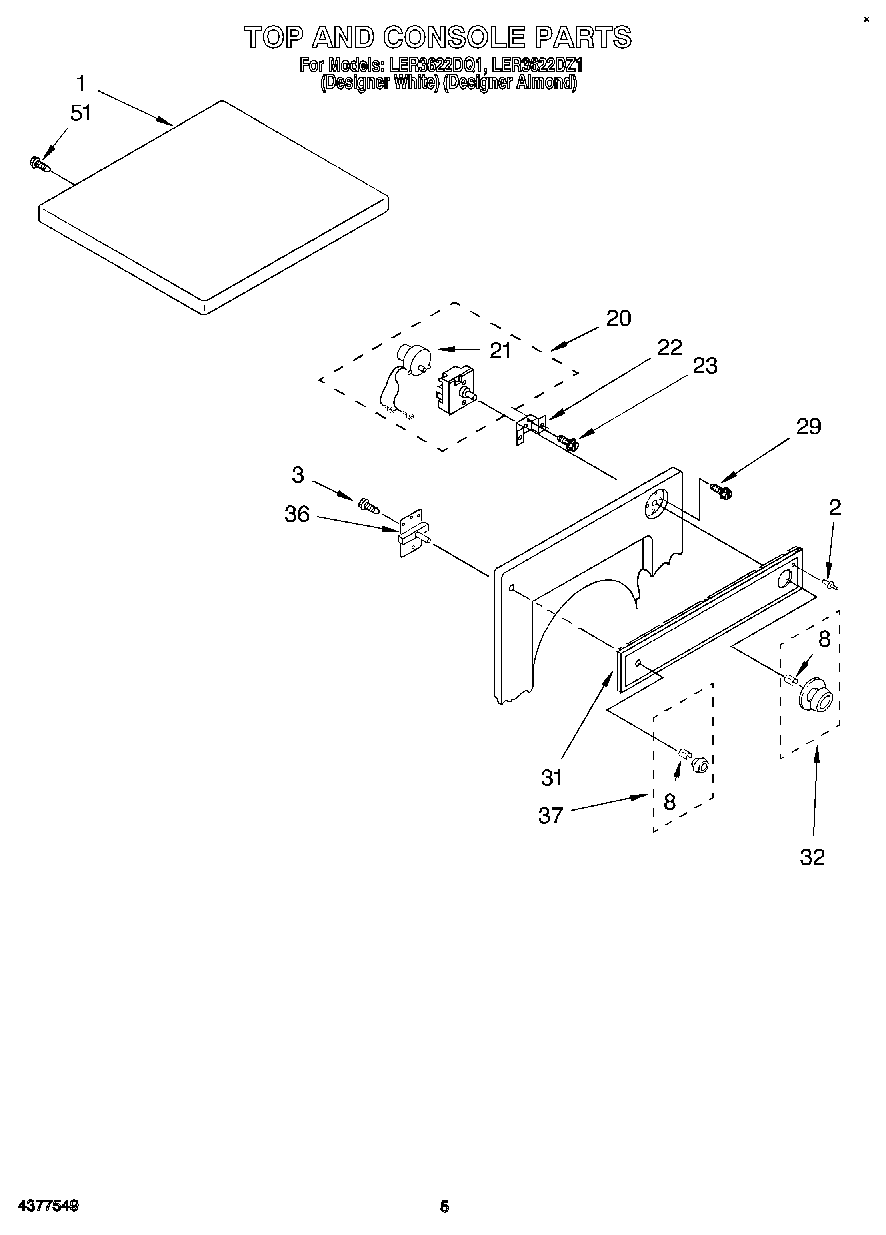

LER3622DQ1 03 – SECTION
Products
Position
Product
1
Top (Almond)
1
345703 Whirlpool White Maintop
2
Rivet, Plastic (4)
3
WP3390631 Whirlpool Screw
8
WP688805 Whirlpool Spring Clip
20
WP8563882 Whirlpool Timer Assembly
21
(Timer Motor Not Serviceable)
22
348171 Whirlpool Bracket
23
303776 Whirlpool Dishwasher Screw
29
WPW10139210 Whirlpool Screw
31
Panel, Control (Almond)
31
Panel, Control (White)
32
Timer Knob & Dial (White)
32
Timer Knob & Dial (Almond)
36
Switch, Push-To-Start
37
WP3957800 Whirlpool Knob
51
SCREW
←
