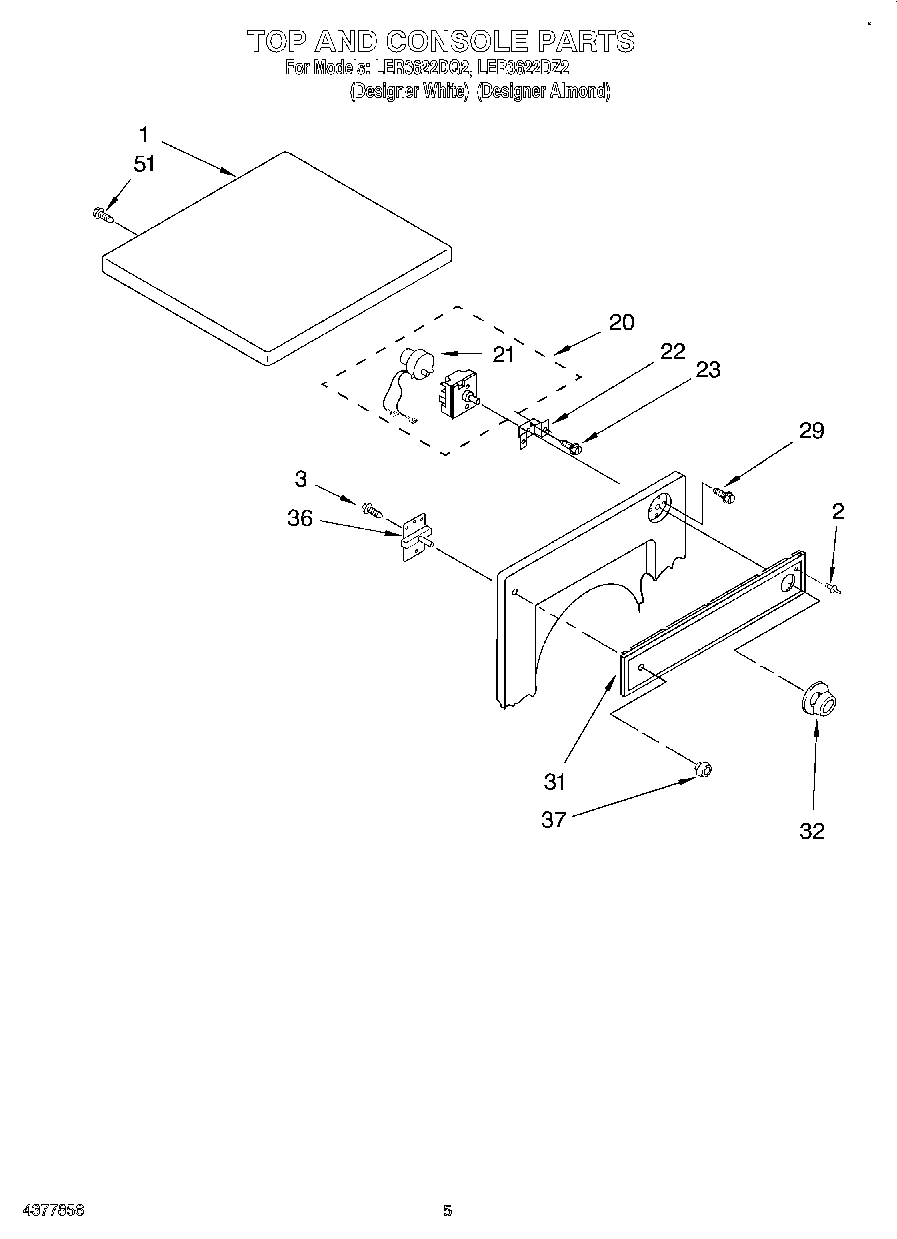

LER3622DQ2 03 – SECTION

LER3622DQ2 03 – SECTION

Written by

in

LER3622DQ2 03 – SECTION

Products

PositionProduct
1Top (Almond)
1345703 Whirlpool White Maintop
2Rivet, Plastic (4)
3WP3390631 Whirlpool Screw
20WP8563882 Whirlpool Timer Assembly
21(Timer Motor Not Serviceable)
22348171 Whirlpool Bracket
23WP3400882 Whirlpool Screw
29WPW10139210 Whirlpool Screw
31Panel, Control (Almond)
31Panel, Control (White)
32Timer Knob & Dial (White)
32Timer Knob & Dial (Almond)
36Switch, Push-To-Start
37WP3957800 Whirlpool Knob
51SCREW
