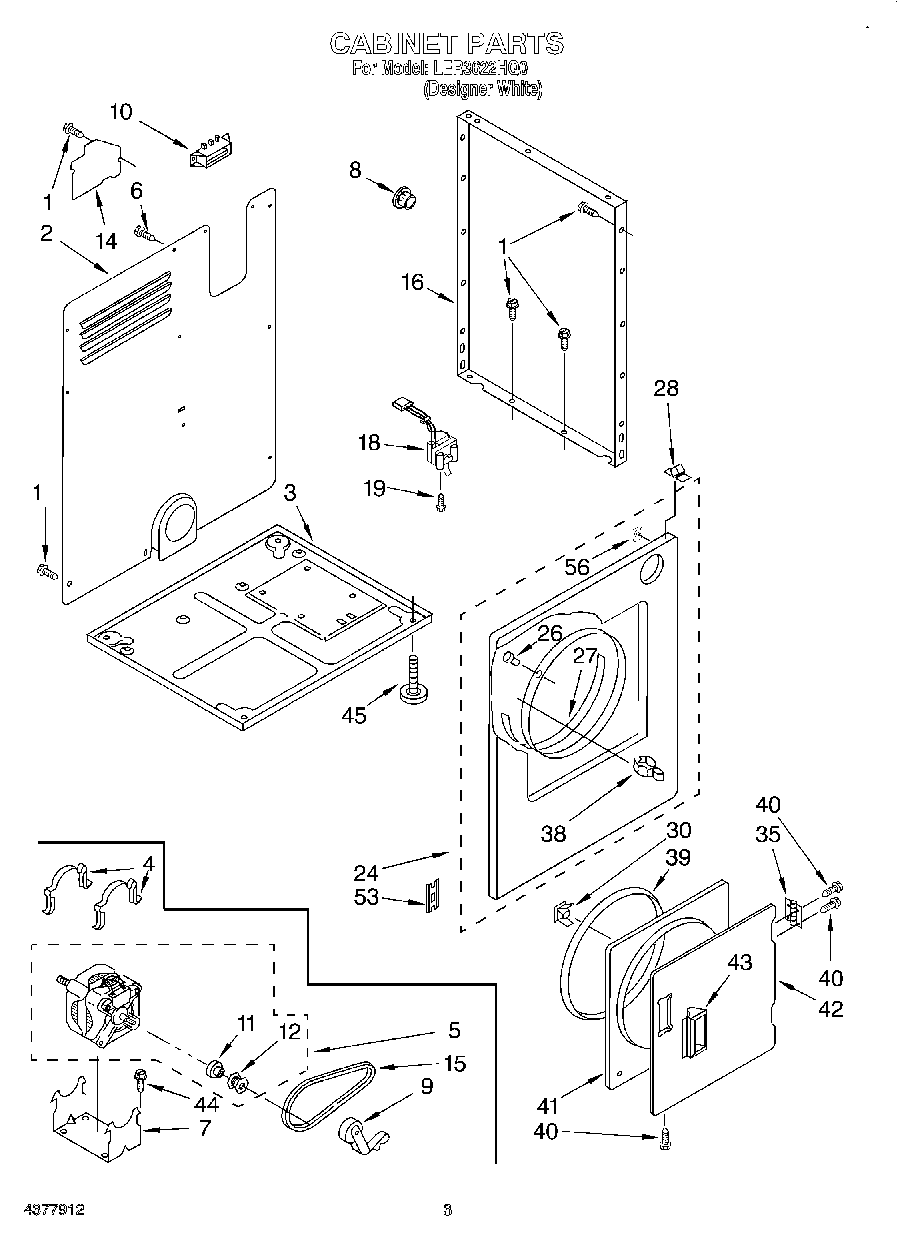

LER3622HQ0 02 – SECTION

Products

PositionProduct
1SCREW
2280050 Whirlpool Rear Panel
3WP348726 Whirlpool Base Assembly
4WP660658 Whirlpool Clamp
5279827 Whirlpool Dryer Drive Motor
6W10850756 Whirlpool Screw
7696541 Whirlpool Base
8Bushing, Snap
9WP691366 Whirlpool Dryer Idler Pulley Assembly
10WP3397659 Whirlpool Terminal Block
11WP3393657 Whirlpool Belt Retainer
128066051 Whirlpool Motor Pulley
14W11539855 Whirlpool Refrigerator Pump
153394652 Whirlpool Drum Belt
16Panel, Side (2) (White)
18WP3406105 Whirlpool Door Switch
19WP3395530 Whirlpool Screw
24280044 Whirlpool Panel
26279220 Whirlpool Clip
27279264 Whirlpool Bearing and Seal Kit
28WP345670 Whirlpool Lock
30WP3389441 Whirlpool Door Catch
35WP348023 Whirlpool Hinge
38279570 Whirlpool Dryer Door Latch Kit
39W11613302 Whirlpool Door Seal
40WP694091 Whirlpool Screw
41280077 Whirlpool Door
42WP348205 Whirlpool Door
43WP686711 Whirlpool Door Handle
44WP3390631 Whirlpool Screw
45WP233550 Whirlpool Leveling Feet
53W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
56WP98234 Whirlpool Nut
