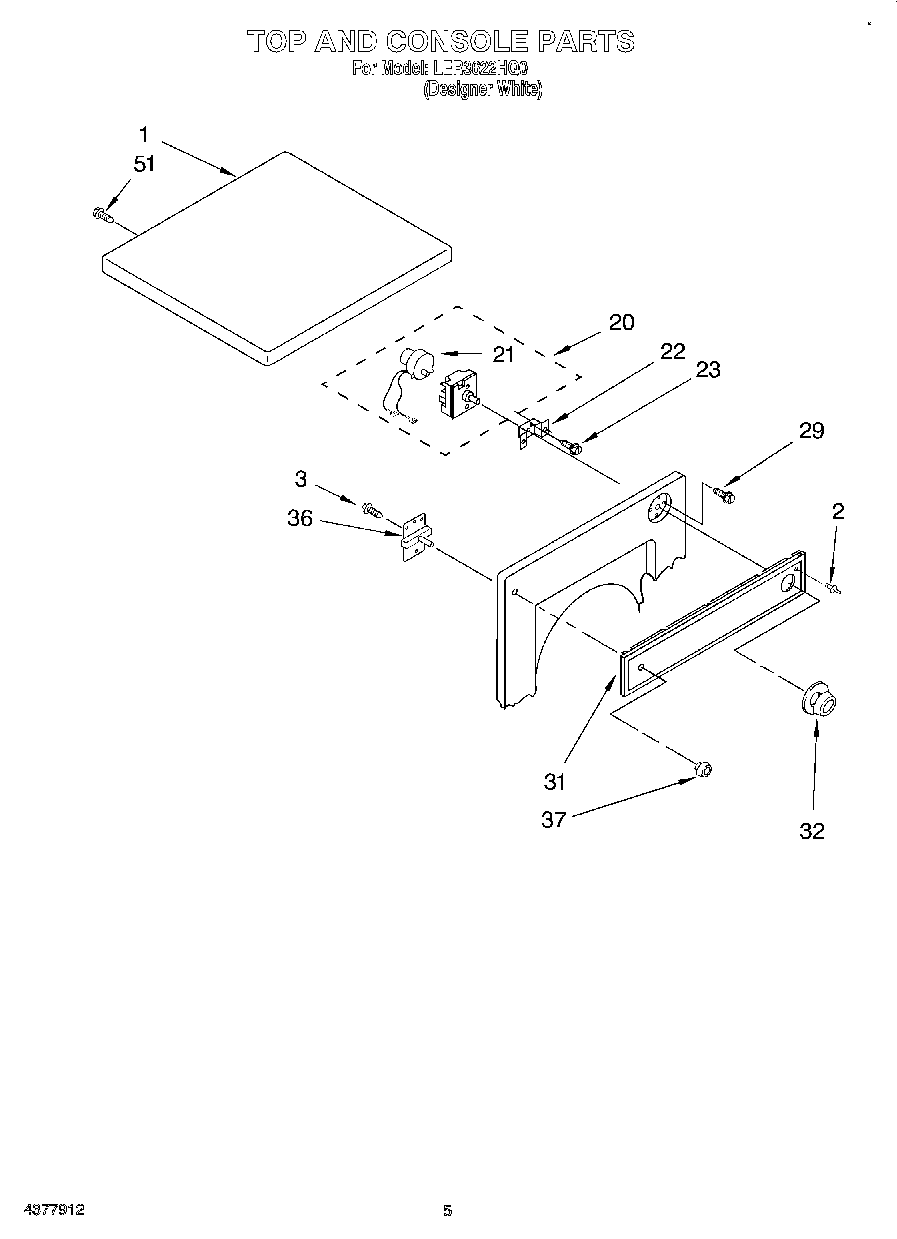

LER3622HQ0 03 – SECTION

Products

Position	Product
1	345703 Whirlpool White Maintop
2	Rivet, Plastic (4)
3	WP3390631 Whirlpool Screw
20	WP8563882 Whirlpool Timer Assembly
21	(Timer Motor Not Serviceable)
22	348171 Whirlpool Bracket
23	WP3400882 Whirlpool Screw
29	WPW10139210 Whirlpool Screw
31	Panel, Control (White)
32	Timer Knob & Dial (White)
36	Switch, Push-To-Start
37	WP3957800 Whirlpool Knob
51	SCREW
