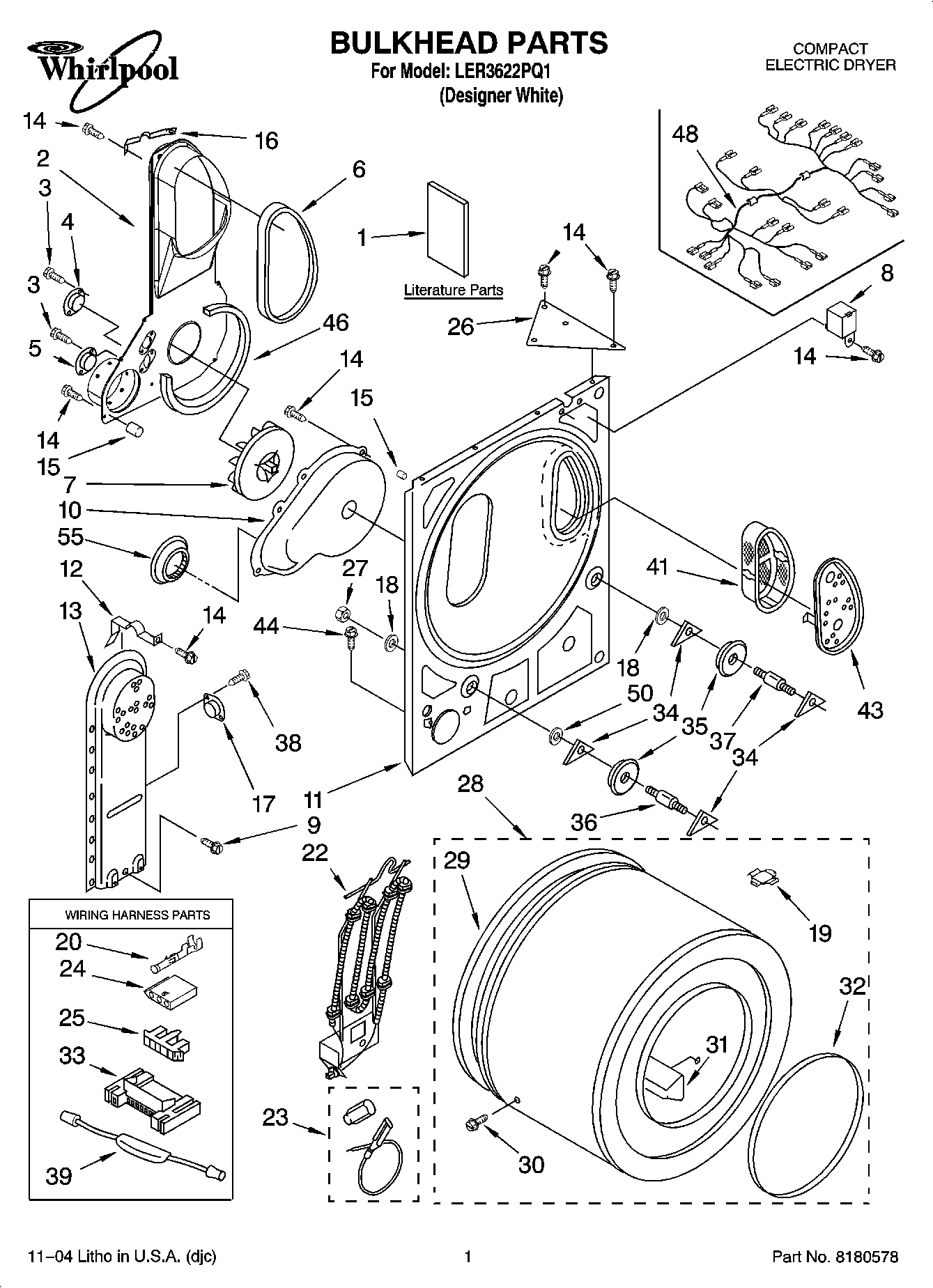

LER3622PQ1 01 – BULKHEAD PARTS

LER3622PQ1 01 – BULKHEAD PARTS

Products

PositionProduct
1Label, Wiring Diagram
1Label, Operating Instructions
1Use & Care Guide
2Air Duct Assembly
3WPW10139210 Whirlpool Screw
4THRMST-FIX
5WP3403607 Whirlpool Thermoprotector
6SEAL
7WP696426 Whirlpool Wheel
8WP694419 Whirlpool Buzzer Adjuster
9WP489463 Whirlpool Refrigerator Screw
10696419 Whirlpool Housing
11279848 Whirlpool Bulkhead
12279771 Whirlpool Clip
13WP3401380 Whirlpool Box
14SCREW
15W10491983 Whirlpool Tine Tip
16345396 Whirlpool Clip
17THRMST-FIX
18WP348197 Whirlpool Washer Assembly
198066086 Whirlpool Plug
20WP94614 Whirlpool Terminal
22WP279843 Whirlpool Heating Element
23279457 Whirlpool Dryer Heating Element Wide Spade Connection
243936144 Whirlpool Connector
25Connector, Timer
26345325 Whirlpool Gusset
27WP3359452 Whirlpool Nut
283391834 Whirlpool Drum
29SEAL
30WPW10109200 Whirlpool Screw
31685207 Whirlpool Dryer Baffle
32WP3394508 Whirlpool Bearing Ring
333395683 Whirlpool Connector
34WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35349241T Whirlpool Dryer Drum Support Roller Kit
36SHAFT SUPPORT ROLLER DRYER
37SHAFT SUPPORT ROLLER DRYER
38WP90767 Whirlpool Screw
39279872 Whirlpool Resistor
41W10828351 Whirlpool Dryer Filter Lint Screen with Cover
44WP3390631 Whirlpool Screw
468066094 Whirlpool Seal
488299821 Whirlpool Wire Harness
50WP3388703 Whirlpool Washer
55W11233063 Whirlpool Shield Assembly
