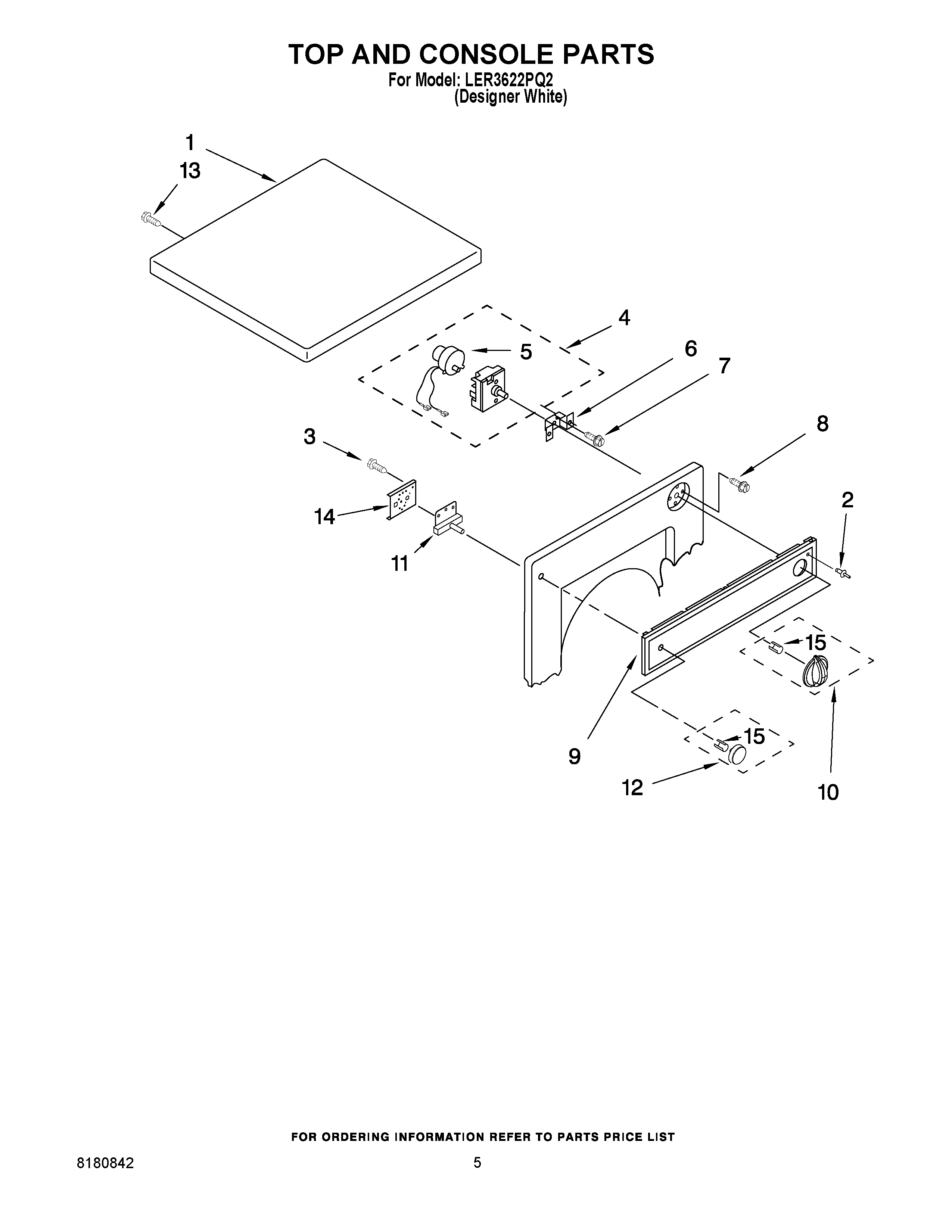

LER3622PQ2 03 – TOP AND CONSOLE PARTS

Products

Position	Product
1	345703 Whirlpool White Maintop
2	Rivet, Plastic (4)
3	WP3390631 Whirlpool Screw
4	WP8563882 Whirlpool Timer Assembly
5	CABINET (NOT A SERVICEABLE PART)
6	348171 Whirlpool Bracket
7	WP486579 Whirlpool Air Conditioner Screw
8	WPW10139210 Whirlpool Screw
9	Panel, Control
10	W10756270 Whirlpool Dryer Timer Knob
11	WP3977456 Whirlpool Start Switch
12	WP8544939 Whirlpool Knob Assembly
13	SCREW
14	3406860 Whirlpool Bracket
15	WP8536939 Whirlpool Spring Clip
