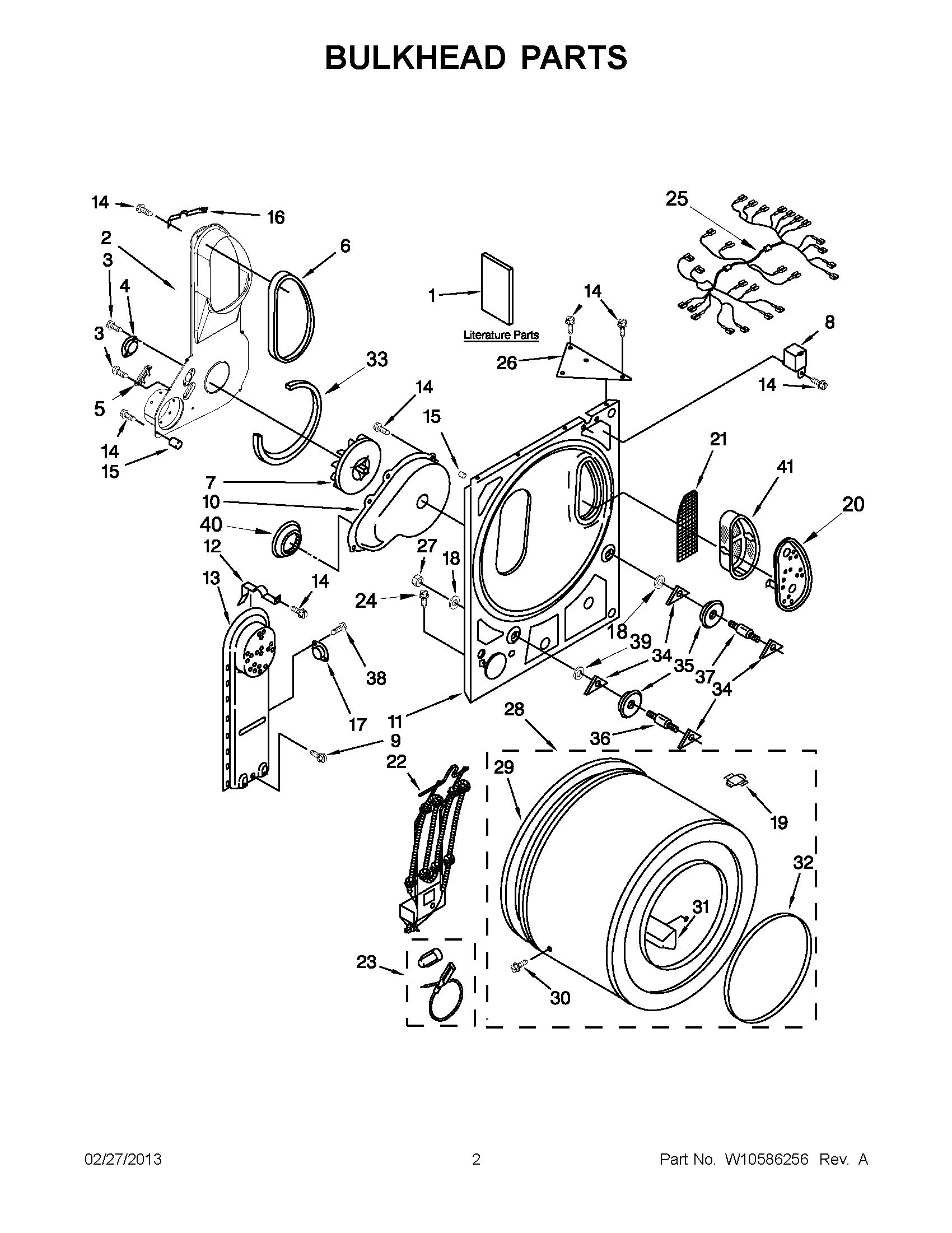

LER3622PQ3 01 – BULKHEAD PARTS

Products

Position	Product
1	GUIDE, USE & CARE
1	LABEL, WIRING DIAGRAM
2	Air Duct Assembly
3	WP90767 Whirlpool Screw
4	THRMST-FIX
5	WP3392519 Whirlpool Dryer Thermal Fuse
6	SEAL
7	WP696426 Whirlpool Wheel
8	W10503559 Whirlpool Buzzer Adjuster
9	WP489463 Whirlpool Refrigerator Screw
10	696419 Whirlpool Housing
11	279848 Whirlpool Bulkhead
12	279771 Whirlpool Clip
13	WP3401380 Whirlpool Box
14	SCREW
15	W10491983 Whirlpool Tine Tip
16	345396 Whirlpool Clip
17	THRMST-FIX
18	WP348197 Whirlpool Washer Assembly
19	8066086 Whirlpool Plug
21	Screen, Back-Up
22	WP279843 Whirlpool Heating Element
23	279457 Whirlpool Dryer Heating Element Wide Spade Connection
24	WP3390631 Whirlpool Screw
25	W10488665 Whirlpool Wire Harness
26	345325 Whirlpool Gusset
27	WP3359452 Whirlpool Nut
28	3391834 Whirlpool Drum
29	SEAL
30	W10853898 Whirlpool Screw
31	685207 Whirlpool Dryer Baffle
32	WP3394508 Whirlpool Bearing Ring
33	8066094 Whirlpool Seal
34	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35	349241T Whirlpool Dryer Drum Support Roller Kit
36	SHAFT SUPPORT ROLLER DRYER
37	SHAFT SUPPORT ROLLER DRYER
39	WP3388703 Whirlpool Washer
40	W11233063 Whirlpool Shield Assembly
41	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
