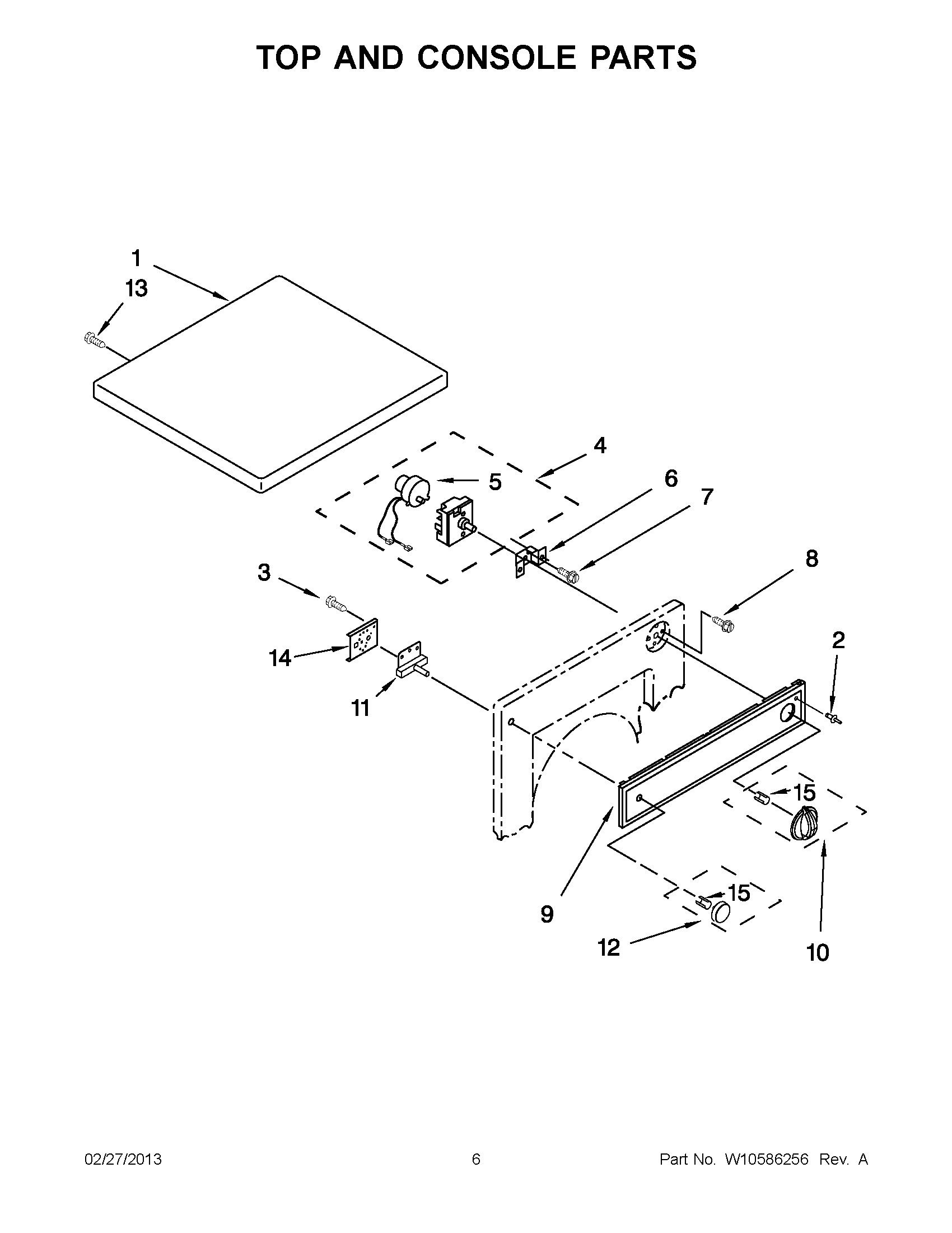

LER3622PQ3 03 – TOP AND CONSOLE PARTS
Written by
in
LER3622PQ3 03 – TOP AND CONSOLE PARTS
Products
Position
Product
1
345703 Whirlpool White Maintop
2
Rivet, Plastic (4)
3
WP3390631 Whirlpool Screw
4
WP8563882 Whirlpool Timer Assembly
5
CABINET (NOT A SERVICEABLE PART)
6
348171 Whirlpool Bracket
7
WP3400882 Whirlpool Screw
8
WP90767 Whirlpool Screw
9
Panel, Control
10
W10756270 Whirlpool Dryer Timer Knob
11
WPW10503561 Whirlpool Push To Start Switch
12
WP8544939 Whirlpool Knob Assembly
13
SCREW
14
3406860 Whirlpool Bracket
15
WP8536939 Whirlpool Spring Clip
←
