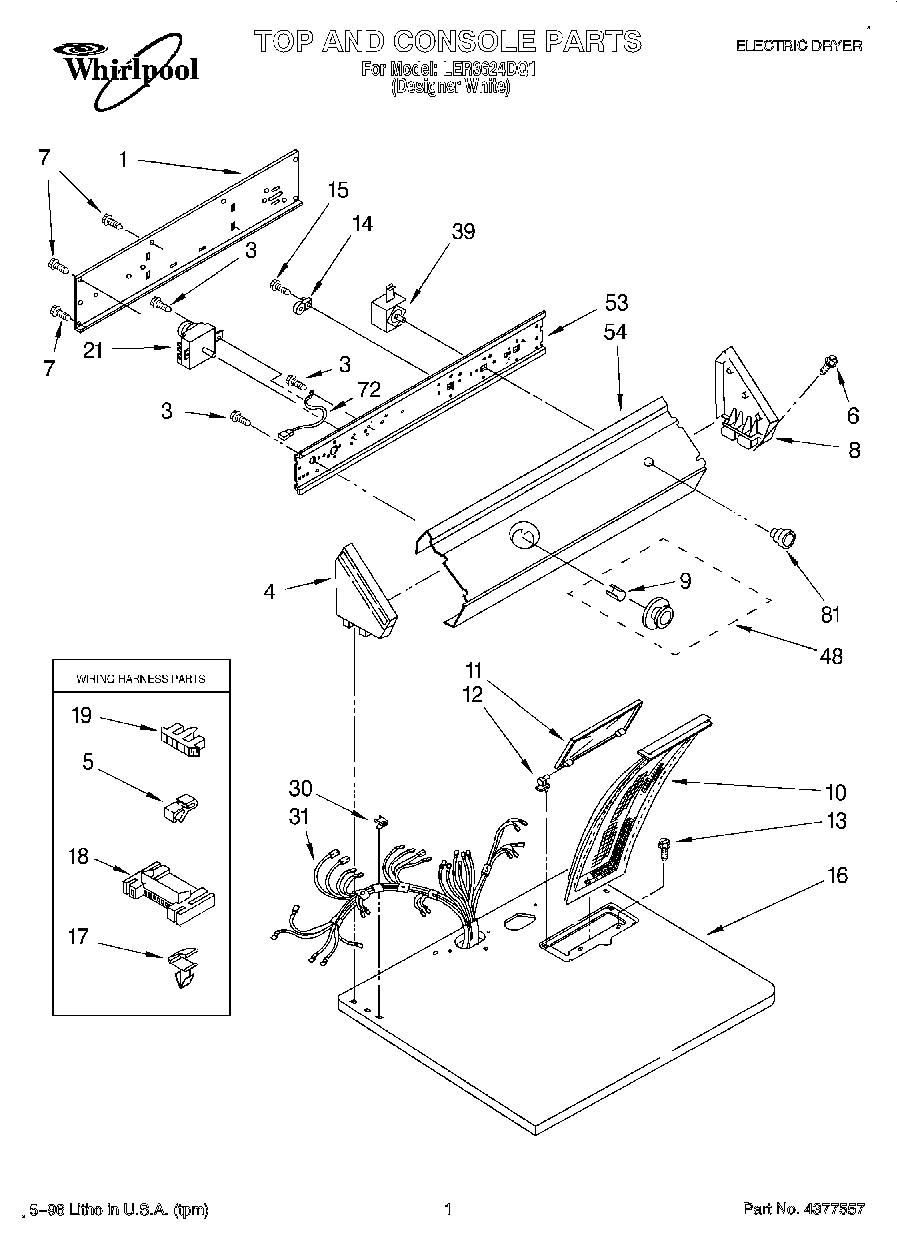

LER3624DQ1 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Label, Wiring Diagram
	Guide, Use & Care
	Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.)
5	Clip, Retainer
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	Cap, End (R.H.)
9	WP688805 Whirlpool Spring Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	279872 Whirlpool Resistor
15	WP488729 Whirlpool Refrigerator Door Screw
16	Top (White)
17	WP3394427 Whirlpool Clip
18	3395683 Whirlpool Connector
19	Connector, Timer
21	WP3976568 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
72	Wire, Ground
81	WP3957800 Whirlpool Knob
