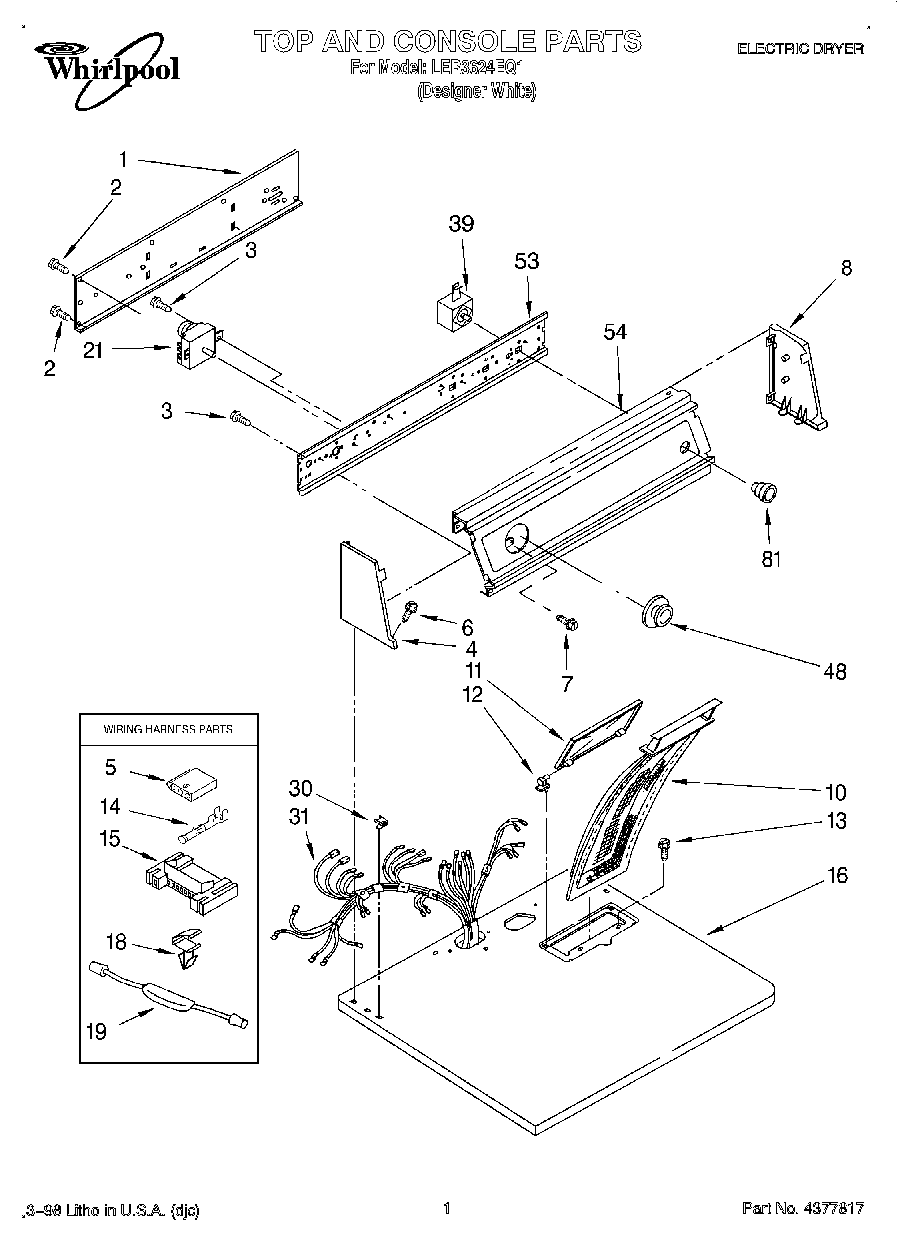

LER3624EQ1 01 – SECTION

LER3624EQ1 01 – SECTION

Written by

in

LER3624EQ1 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Wiring Diagram
WPL LIT3397618
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
WPL LIT3406071
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP693995 Whirlpool Screw
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.)
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8Cap, End (R.H.)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP94614 Whirlpool Terminal
153395683 Whirlpool Connector
16Top (White)
18WP3394427 Whirlpool Clip
19279872 Whirlpool Resistor
21WP3976568 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control
81WP3957800 Whirlpool Knob
