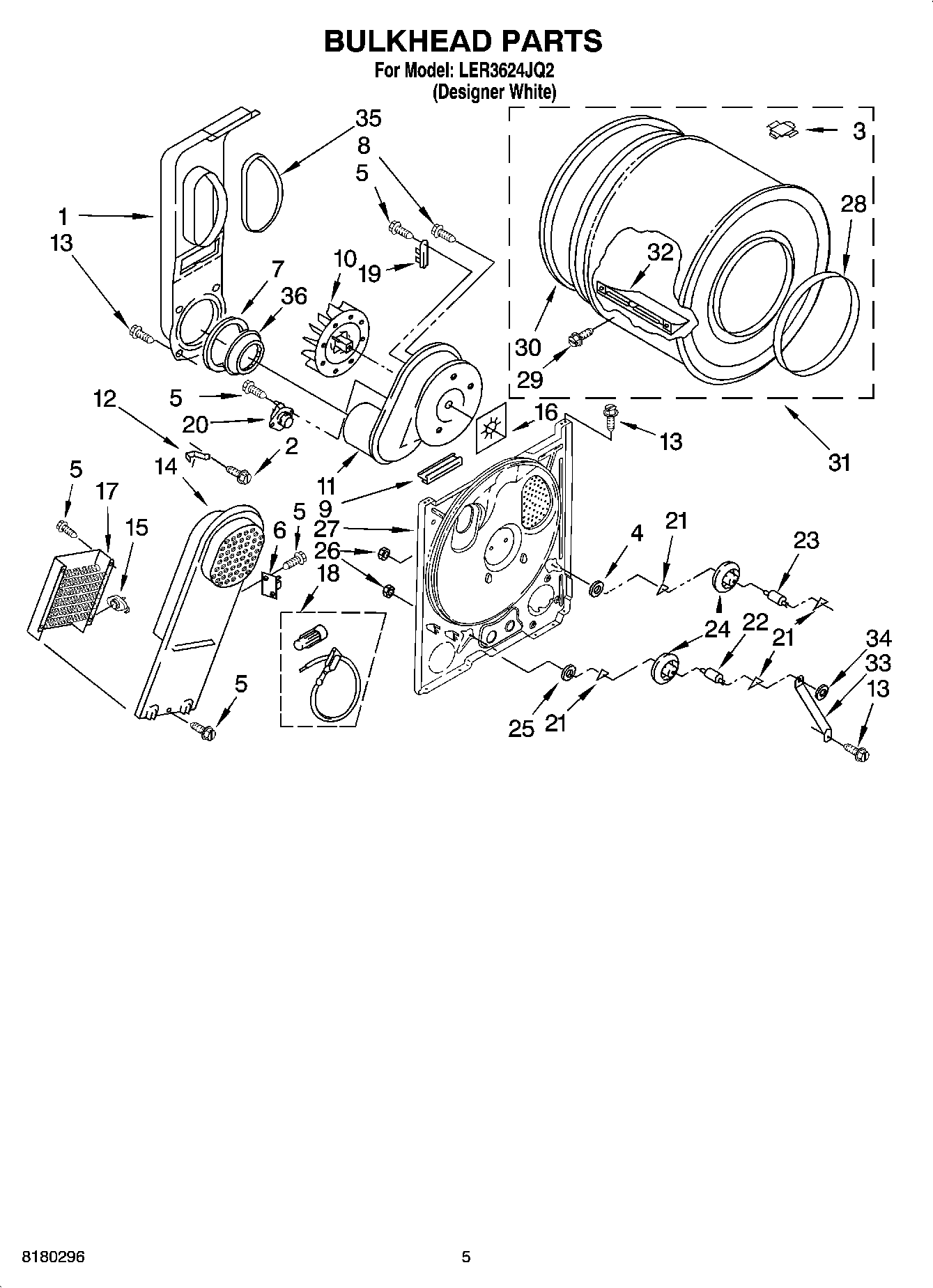

LER3624JQ2 03 – BULKHEAD PARTS

Products

Position	Product
1	279505 Whirlpool Chute
2	WP489463 Whirlpool Refrigerator Screw
3	8066086 Whirlpool Plug
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7	W11415783 Whirlpool Seal
8	WP488729 Whirlpool Refrigerator Door Screw
9	686889 Whirlpool Pad
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	Seal, Blower
17	279838 Whirlpool Dryer Heating Element 5400W
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
19	WP3392519 Whirlpool Dryer Thermal Fuse
20	WP694674 Whirlpool Cycling Thermostat
21	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
22	SHAFT SUPPORT ROLLER DRYER
23	SHAFT SUPPORT ROLLER DRYER
24	349241T Whirlpool Dryer Drum Support Roller Kit
25	WP348197 Whirlpool Washer Assembly
26	WP3359452 Whirlpool Nut
27	BULKHEAD
28	WP3394508 Whirlpool Bearing Ring
29	WPW10109200 Whirlpool Screw
30	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
31	3396775 Whirlpool Drum Assembly
32	WP342847 Whirlpool Drum Baffle
33	Bracket, Support
34	WP90296 Whirlpool Clip
35	SEAL
36	W11233063 Whirlpool Shield Assembly
