LER3634EW2 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	WPL LIT3397618
	Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	WPL LIT3406071
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun

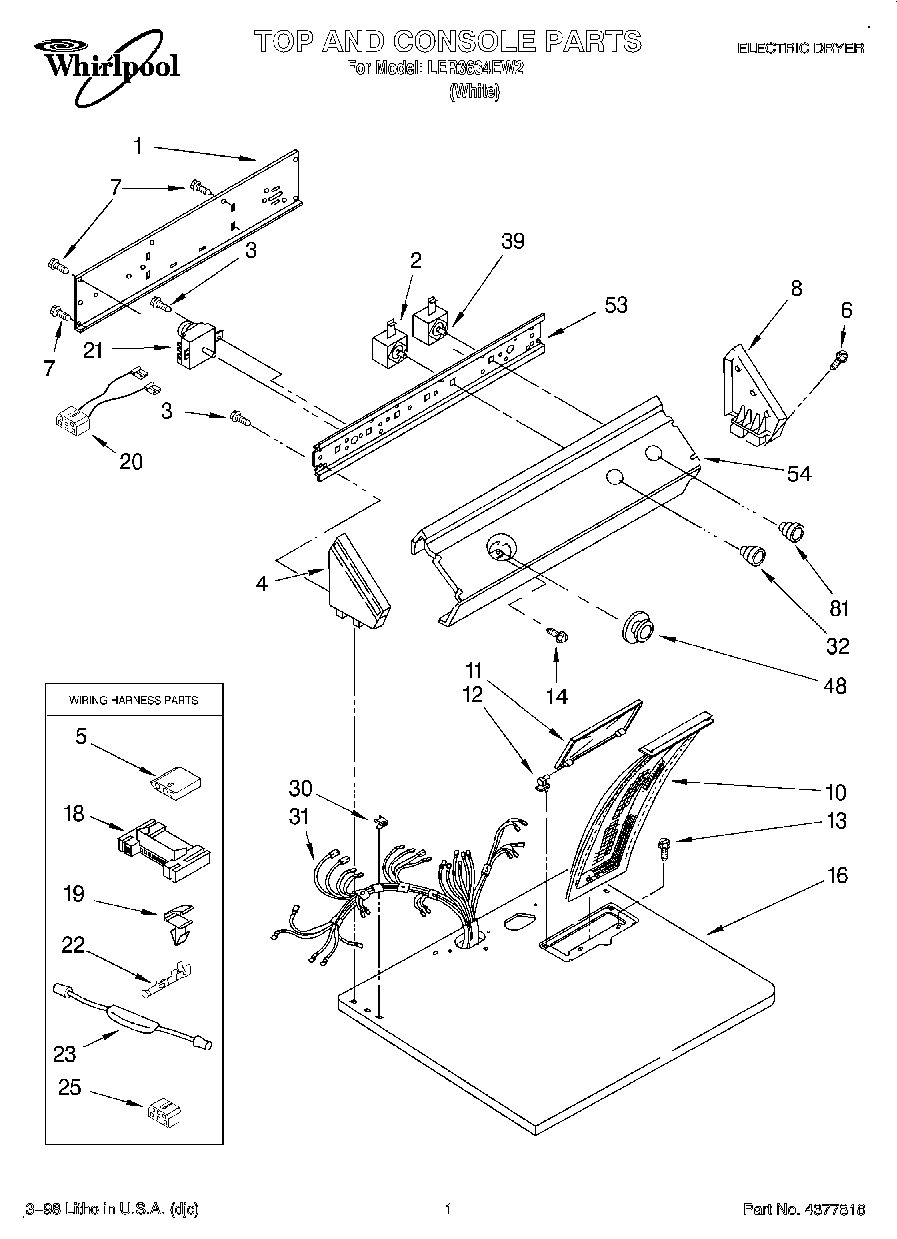

1	Panel, Rear Console
2	3399638 Whirlpool Switch
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.)
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	Cap, End (R.H.)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
16	Top (White)
18	3395683 Whirlpool Connector
19	WP3394427 Whirlpool Clip
20	8283286 Whirlpool Wire Harness
21	WP3976568 Whirlpool Timer
22	WP94614 Whirlpool Terminal
23	279872 Whirlpool Resistor
25	Block, Disconnect
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	KNOB
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control
81	Knob, Push-To-Start
