LER3725AAC 03 – DOOR/DRAWER

LER3725AAC 03 – DOOR/DRAWER

Written by

in

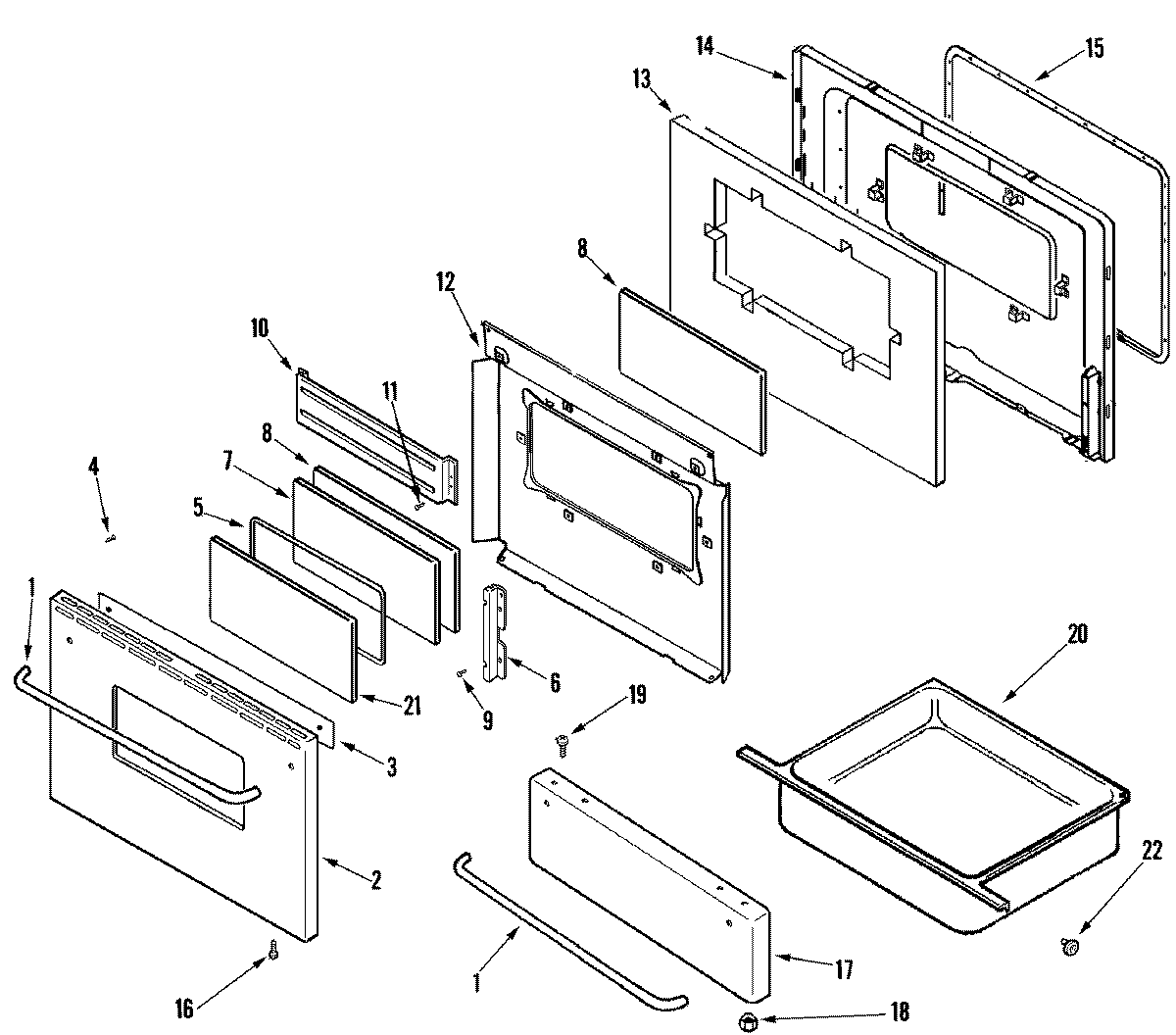

LER3725AAC 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74006514
2MAY 74005271
2MAY 74003643
3MAY 74003146
4MAY 74001521
5MAY 7201P017-60
6MAY 74003048
7MAY 74002002
8GLASS, INNER
10MAY 74005458
11MAY 7101P356-60
12MAY 74001843
13MAY 74001842
14LINING, OVEN DOOR
15GASKT-DOOR OVEN
16SCREW
17MAY 74006665
18WPW10131078 Whirlpool Nut Assembly
19WP7101P072-60 Whirlpool Screw
20DRAWER, STORAGE
20WP3801F813-51 Whirlpool Bracket
21MAY 74001072
2274005230 Whirlpool Oven Lock Nut (8-32)
22SHAFT, STORAGE DRAWER ROLLER
22WP74004078 Whirlpool Door Roller
