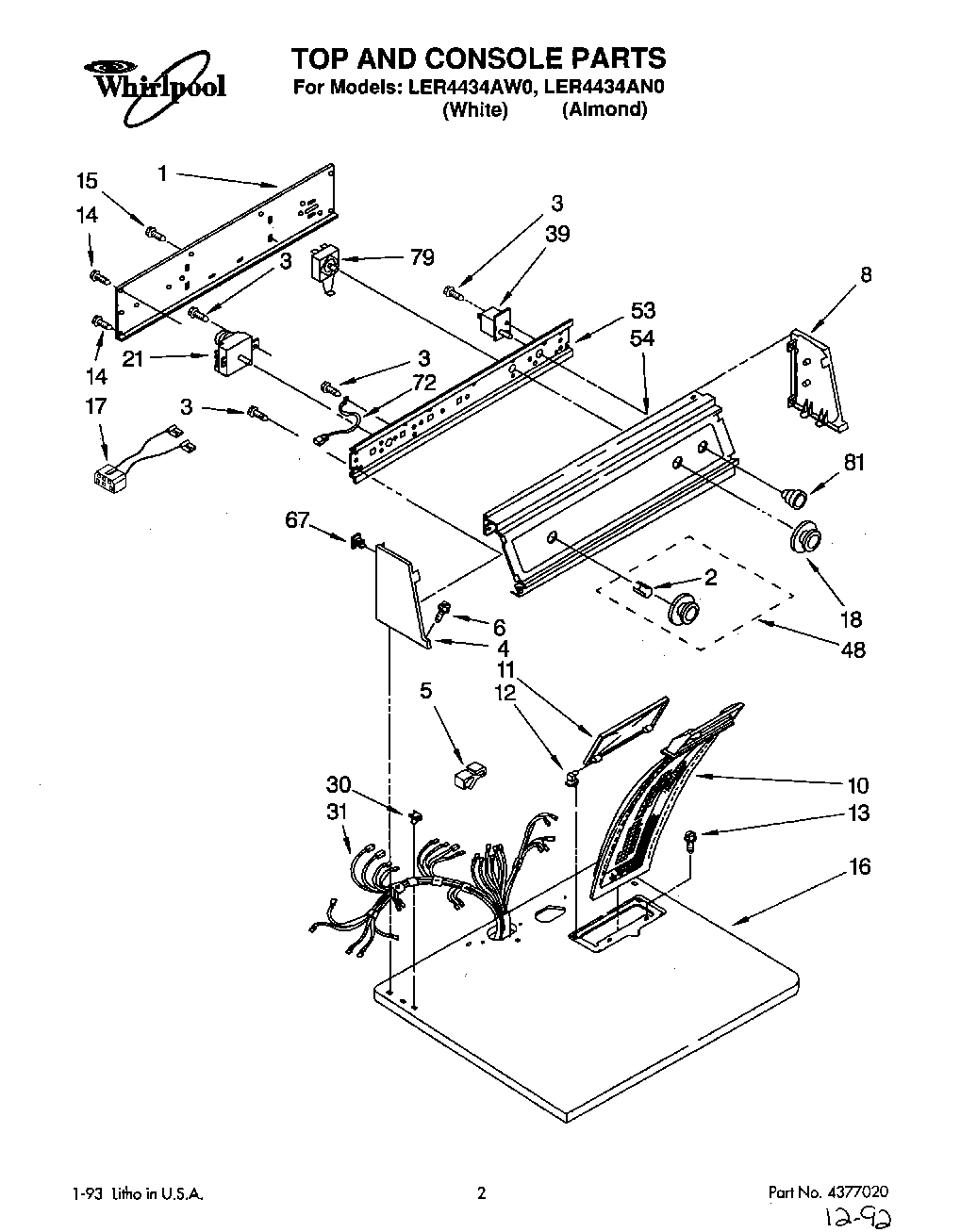

LER4434AN0 01 – SECTION

Products

PositionProduct
List, Service Parts
Instructions, Installation
Use & Care Guide
Dryer
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
350930 Whirlpool White Spray Paint
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
2WP688805 Whirlpool Spring Clip
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
5Clip, Retainer
6WP388326 Whirlpool Screw
8Cap, End (R.H.) (White)
8Cap, End (R.H.) (Almond)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP489069 Whirlpool Compactor Screw
15WP693995 Whirlpool Screw
16Top (White)
16Top (Almond)
178283286 Whirlpool Wire Harness
18KNOB
21WP3396215 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39Switch, Push-To-Start
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
67WP689559 Whirlpool Nut
72Wire, Ground
79Switch, Temperature
81Knob, Push To Start
