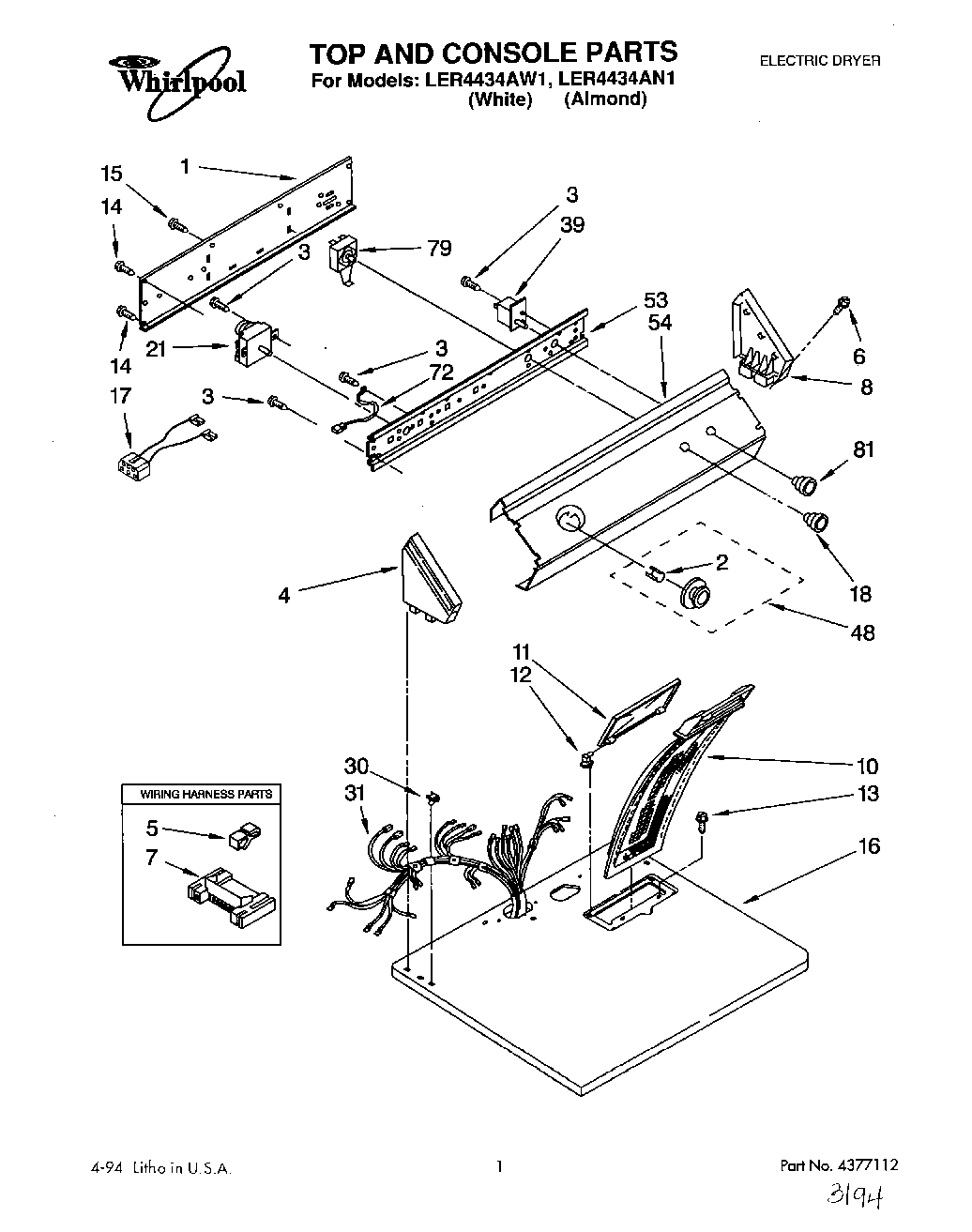

LER4434AW1 01 – SECTION

Products

Position	Product
	Label, Wiring Diagram
	Instructions, Installation
	Use & Care Guide
	Dryer
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
1	Panel, Rear Console
2	WP688805 Whirlpool Spring Clip
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
5	Clip, Retainer
6	WP388326 Whirlpool Screw
7	3395683 Whirlpool Connector
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.) (White)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP489069 Whirlpool Compactor Screw
15	WP693995 Whirlpool Screw
16	Top (White)
16	Top (Almond)
17	8283286 Whirlpool Wire Harness
18	KNOB
21	WP3396215 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	Switch, Push-To-Start
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
79	Switch, Temperature
81	Knob, Push To Start
