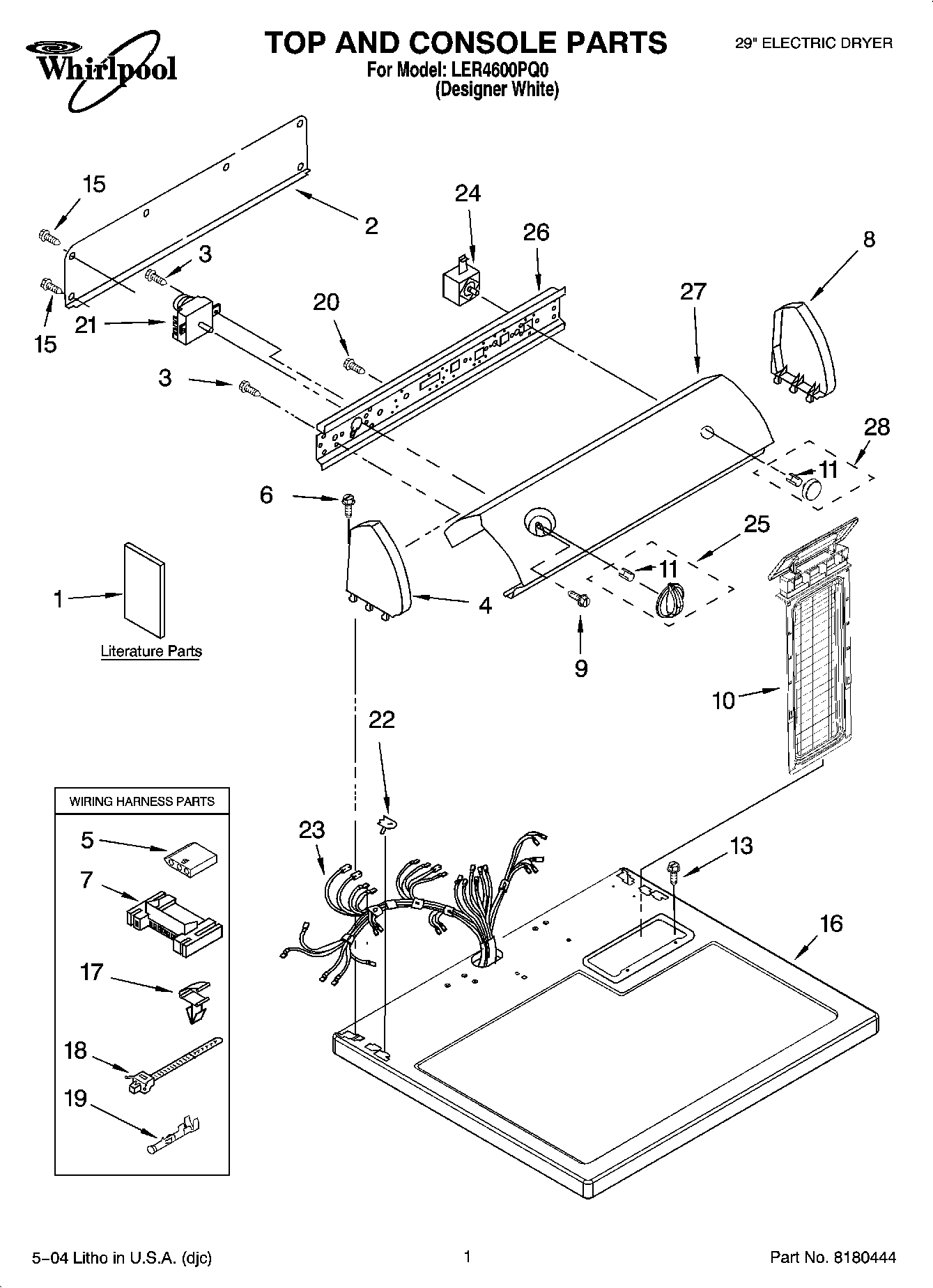

LER4600PQ0 01 – TOP AND CONSOLE PARTS

LER4600PQ0 01 – TOP AND CONSOLE PARTS

Written by

in

LER4600PQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
1Wiring Diagram
1Sheet, Cycle Feature
1Use & Care Guide
1Installation Instructions
1Following May Be Purchased
2W10103406 Whirlpool Rear Panel
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
93400859 Whirlpool Screw
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16Top
17WP3394427 Whirlpool Clip
18Tie, Cable
19WP94614 Whirlpool Terminal
20WP90767 Whirlpool Screw
21WP8299778 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23WPW10450292 Whirlpool Wire Harness
24WP3977456 Whirlpool Start Switch
25W10756270 Whirlpool Dryer Timer Knob
26Bracket, Control
27Panel, Control
28ACCESSORY PARTS
284392065 Whirlpool Dryer Maintenance Kit
28350938 Whirlpool Spray Gun
28WP8544939 Whirlpool Knob Assembly
2872017 Whirlpool Appliance Touch-Up Paint White
28799344 Whirlpool Refrigerator Paint
28W11224254 Whirlpool Test Kit
28WP689790 Whirlpool Dryer Rack
28350930 Whirlpool White Spray Paint
