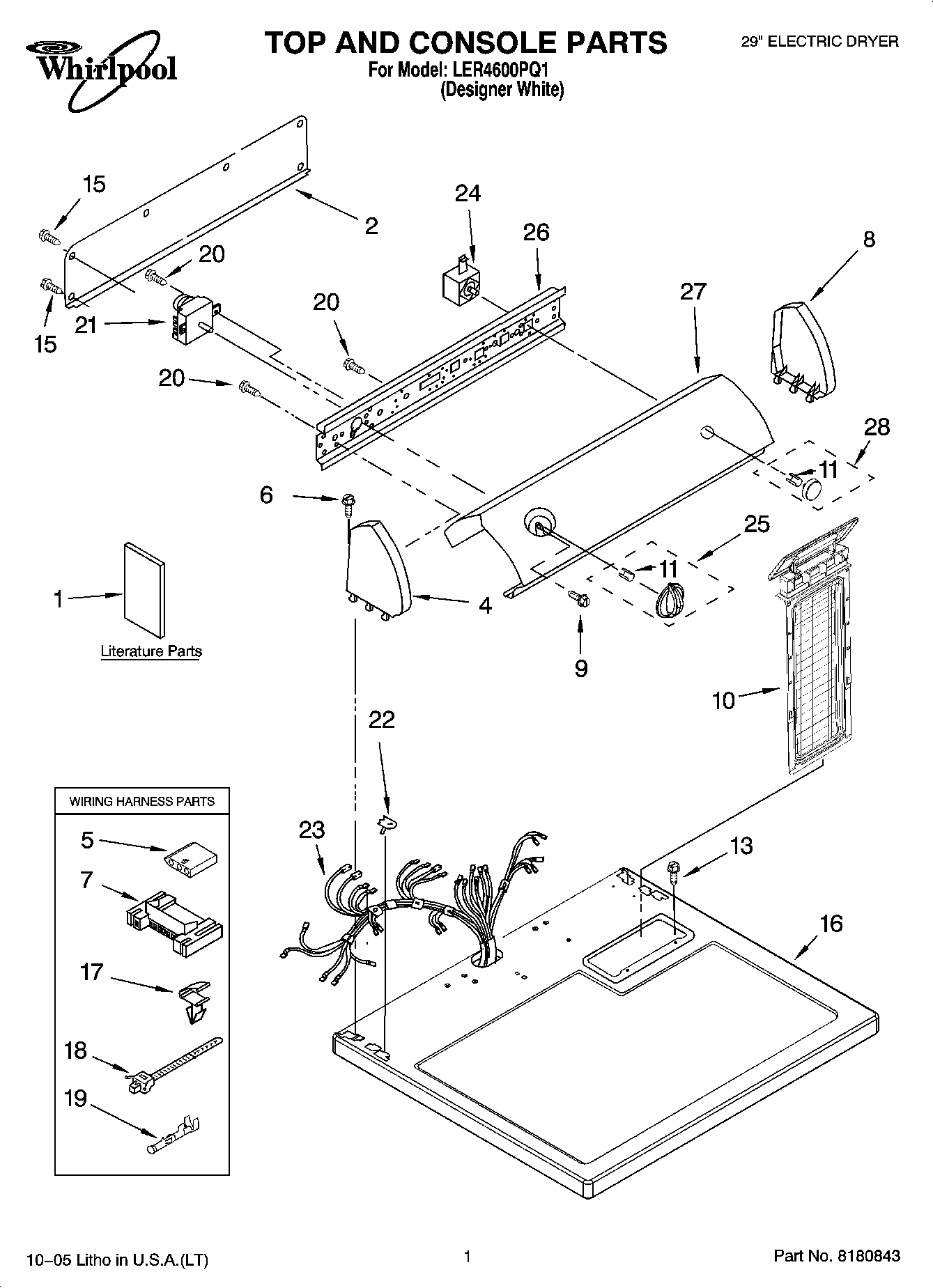

LER4600PQ1 01 – TOP AND CONSOLE PARTS

LER4600PQ1 01 – TOP AND CONSOLE PARTS

Written by

in

LER4600PQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide
1WPL 677818
1Sheet, Cycle Feature
1Installation Instructions
1Following May Be Purchased
1Wiring Diagram
2W10103406 Whirlpool Rear Panel
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
93400859 Whirlpool Screw
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16Top
17WP3394427 Whirlpool Clip
18Tie, Cable
19WP94614 Whirlpool Terminal
20WP90767 Whirlpool Screw
21WP8299778 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23WPW10450292 Whirlpool Wire Harness
24WP3977456 Whirlpool Start Switch
25W10756270 Whirlpool Dryer Timer Knob
26Bracket, Control
27Panel, Control
28WP8544939 Whirlpool Knob Assembly
