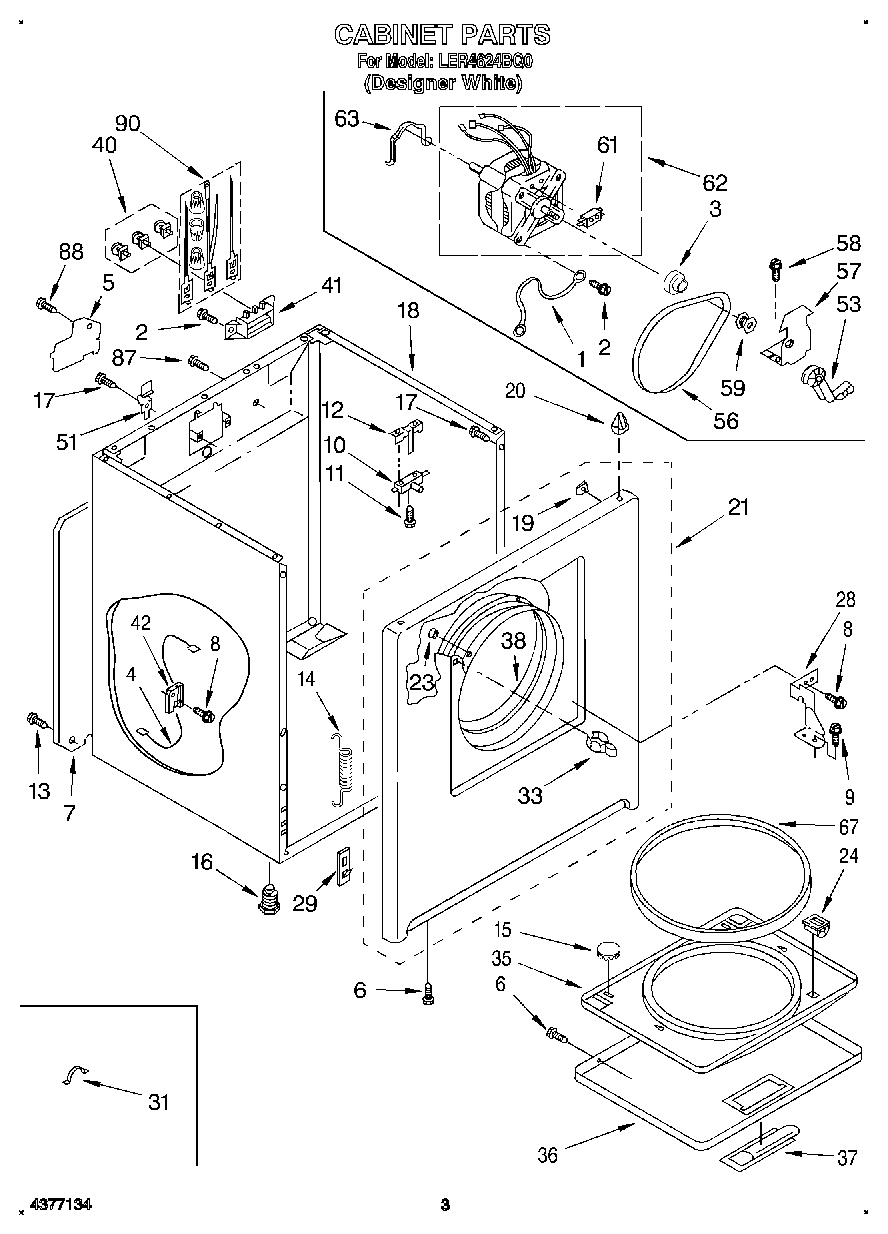

LER4624BQ0 02 – SECTION

Products

Position	Product
1	Wire, Ground (Motor)
2	WP308685 Whirlpool Microwave Screw
3	WP3393657 Whirlpool Belt Retainer
4	Cable, Door (2)
5	W11736322 Whirlpool Cover Assembly
6	WP694091 Whirlpool Screw
7	Panel, Rear
8	WP90767 Whirlpool Screw
9	WP488627 Whirlpool Refrigerator Screw
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	WP691581 Whirlpool Actuator
13	WP489069 Whirlpool Compactor Screw
14	WP337186 Whirlpool Door Spring
15	WP660975 Whirlpool Button Plug
16	49621 Whirlpool Leveling Feet
17	SCREW
18	Cabinet (White)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Upper Front Panel Assembly (White)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
28	Hinge, Door (R.H.)
28	WP238460 Whirlpool Hinge
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
31	8528351 Whirlpool Clip
35	Door, Rear
36	Door, Front (White)
37	WP348721 Whirlpool Handle
38	279264 Whirlpool Bearing and Seal Kit
40	279393 Whirlpool Terminal Block Screw and Nut Kit
41	279320 Whirlpool Dryer Rear Terminal Block Kit
42	GUIDE
42	Guide, Cable (R.H.)
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	W11613302 Whirlpool Door Seal
87	W10850756 Whirlpool Screw
88	WP693995 Whirlpool Screw
90	279318 Whirlpool Terminal
