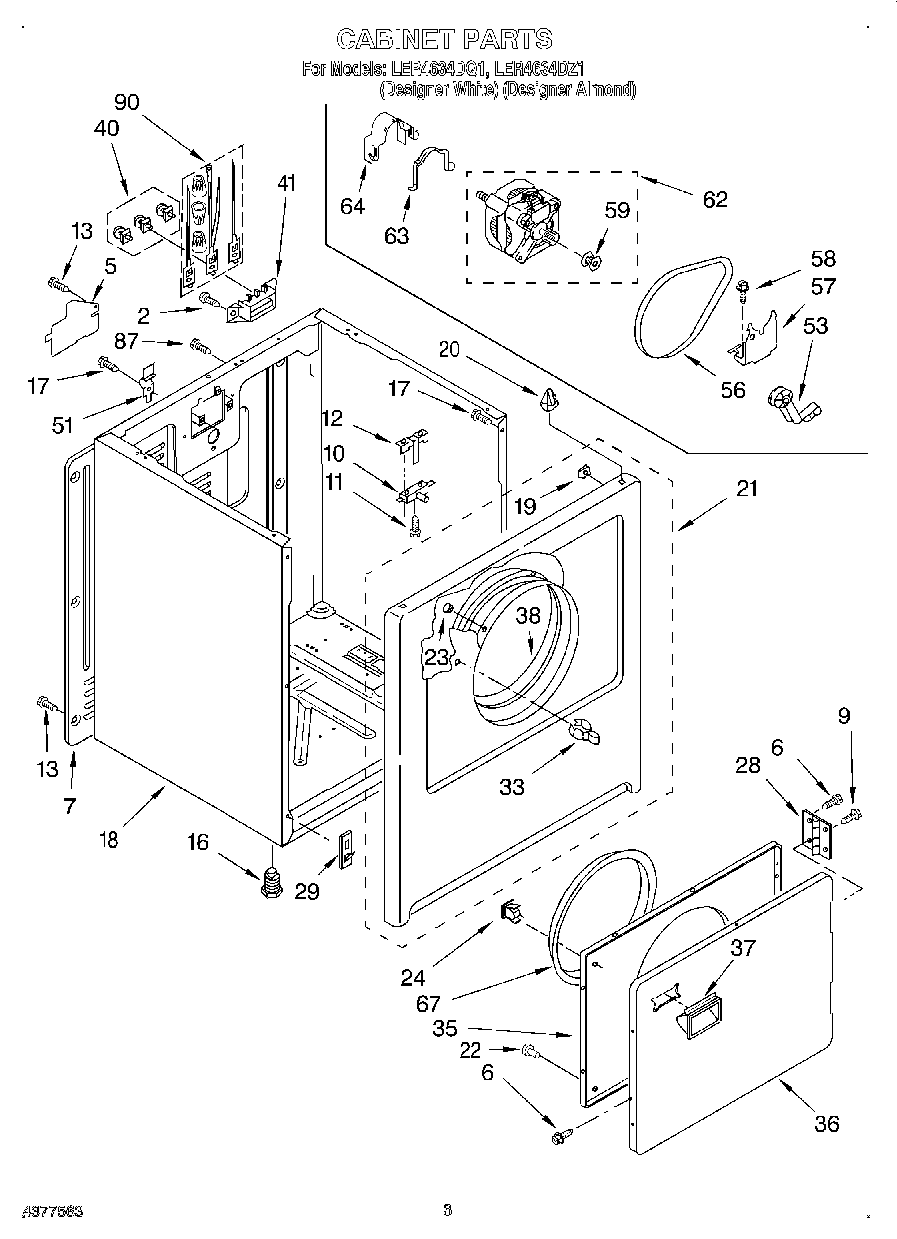

LER4634DZ1 02 – SECTION

Products

Position	Product
2	WP308685 Whirlpool Microwave Screw
5	W11539855 Whirlpool Refrigerator Pump
6	WP694091 Whirlpool Screw
7	280040 Whirlpool Rear Panel
9	WP488627 Whirlpool Refrigerator Screw
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	WP691581 Whirlpool Actuator
13	WP693995 Whirlpool Screw
16	49621 Whirlpool Leveling Feet
17	SCREW
18	Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
18	Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Upper Front Panel Assembly (Almond)
21	Upper Front Panel Assembly (White)
22	238614 Whirlpool Bumper Hinge
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
28	WPW10362431 Whirlpool Hinge Assembly
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
35	Door, Rear
36	Door, Front (White)
36	Door, Front (Almond)
37	Handle, Door (Almond)
37	WP3405184 Whirlpool White Door Handle
38	279264 Whirlpool Bearing and Seal Kit
40	279393 Whirlpool Terminal Block Screw and Nut Kit
41	279320 Whirlpool Dryer Rear Terminal Block Kit
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	WP3404162 Whirlpool Clamp
67	WP3390733 Whirlpool Door Seal Assembly
87	W10850756 Whirlpool Screw
90	279318 Whirlpool Terminal
