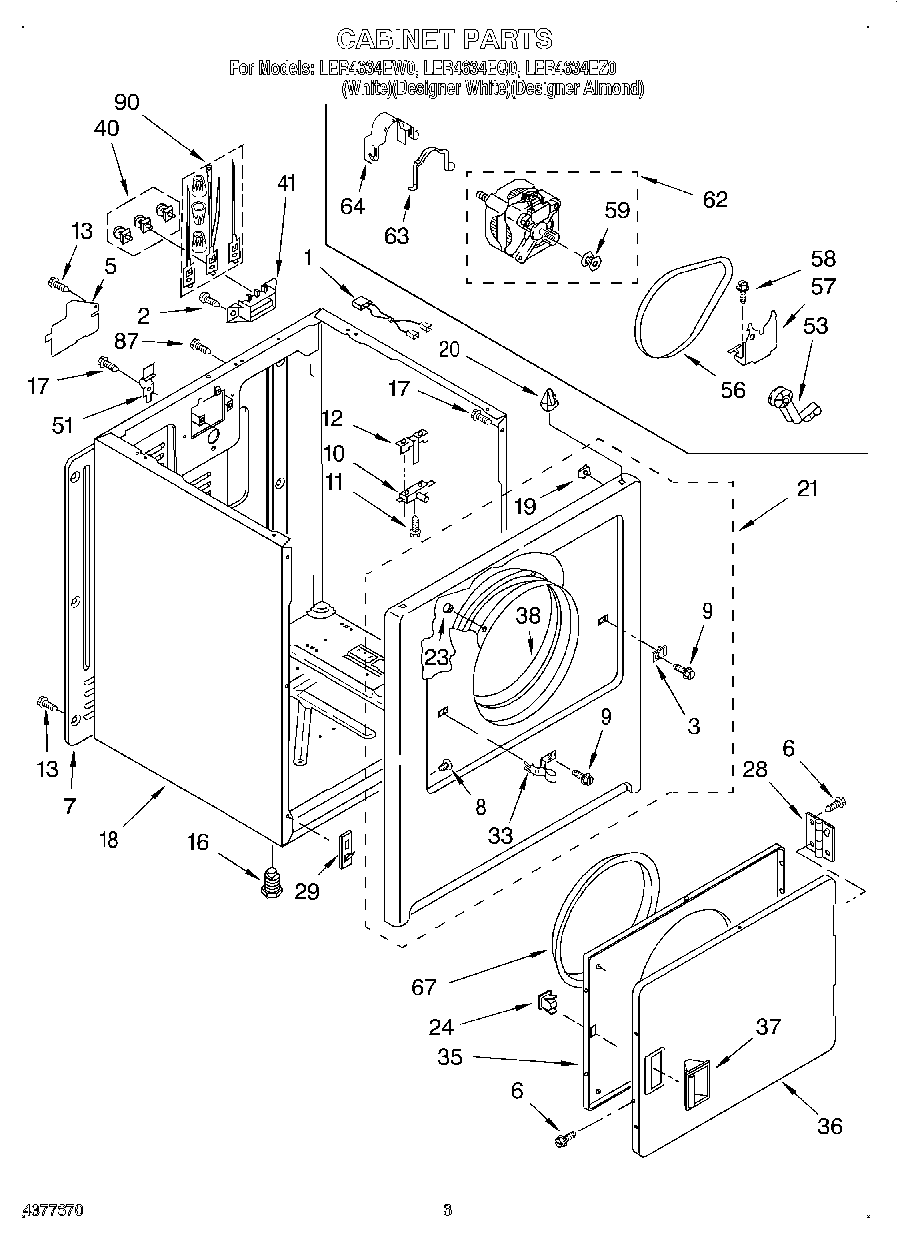

LER4634EQ0 02 – SECTION

Products

Position	Product
1	WP3406105 Whirlpool Door Switch
2	WP308685 Whirlpool Microwave Screw
3	WP3403630 Whirlpool Plug
5	W11539855 Whirlpool Refrigerator Pump
6	WP694091 Whirlpool Screw
7	280040 Whirlpool Rear Panel
8	Plug, Hinge Hole (4) (Almond)
8	WP3404413 Whirlpool Plug
9	WP488627 Whirlpool Refrigerator Screw
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	WP691581 Whirlpool Actuator
13	WP693995 Whirlpool Screw
16	49621 Whirlpool Leveling Feet
17	SCREW
18	Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
18	Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel Front Assembly
21	Front Panel Assembly (Almond)
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
28	WPW10362431 Whirlpool Hinge Assembly
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33	W11429589 Whirlpool Strike
35	Door, Rear
36	Door, Front (Almond)
36	WP3403361 Whirlpool Door
37	WP3405184 Whirlpool White Door Handle
37	Handle, Door (Almond)
38	279264 Whirlpool Bearing and Seal Kit
40	279393 Whirlpool Terminal Block Screw and Nut Kit
41	279320 Whirlpool Dryer Rear Terminal Block Kit
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	WP3404162 Whirlpool Clamp
67	WP3390733 Whirlpool Door Seal Assembly
87	W10850756 Whirlpool Screw
90	279318 Whirlpool Terminal
