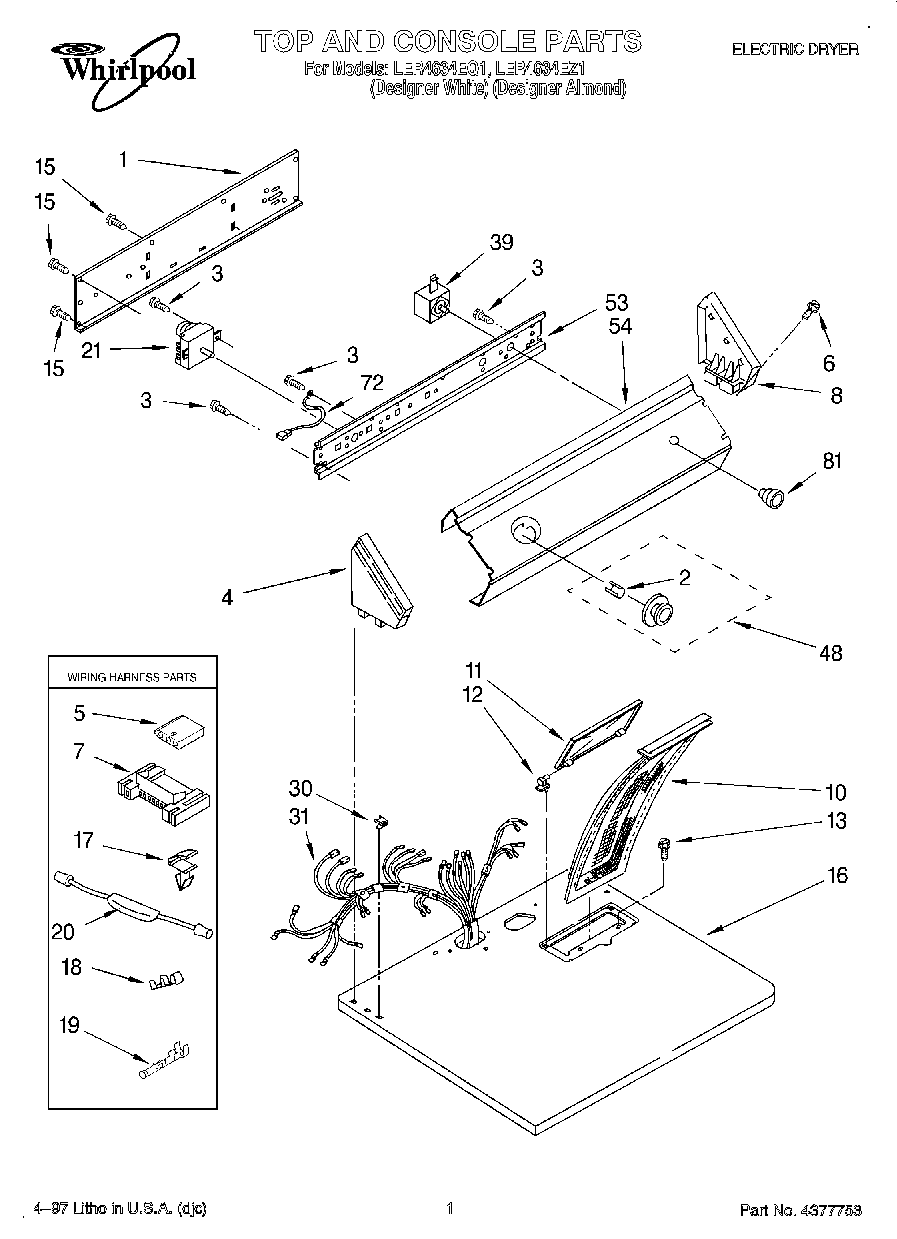

LER4634EQ1 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Warning
	WPL LIT3397618
	Label, Wiring Diagram
	Instructions, Door Reversing
	WPL LIT3406071
	Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear Console
2	WP688805 Whirlpool Spring Clip
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.)
5	Connector (Door Switch)
6	WP388326 Whirlpool Screw
7	3395683 Whirlpool Connector
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top (White)
16	Top (Almond)
17	WP3394427 Whirlpool Clip
18	W10113937 Whirlpool Clamp
19	WP94614 Whirlpool Terminal
20	279872 Whirlpool Resistor
21	WP3976569 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	3957753 Whirlpool Knob
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
81	WP3957800 Whirlpool Knob
