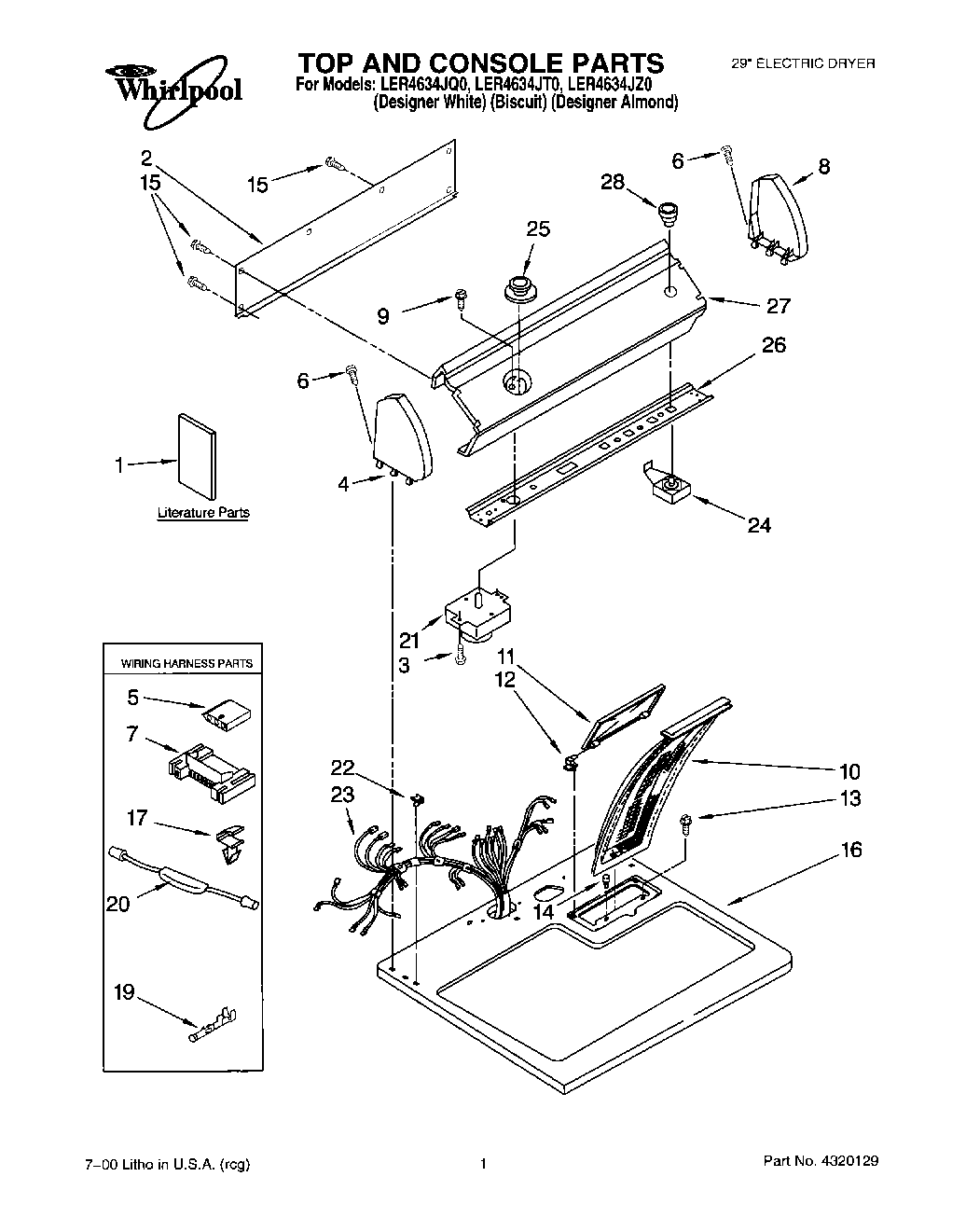

LER4634JT0 01 – SECTION

LER4634JT0 01 – SECTION

Written by

in

LER4634JT0 01 – SECTION

Products

PositionProduct
Dryer
1Literature Parts (Use And care Guide)
1Label, Wiring Diagram
1WPL LIT3397618
2W10103406 Whirlpool Rear Panel
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
4Cap, End (L.H.) (Almond)
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8Cap, End (R.H.) (Almond)
8WPL 8271362
8W10820038 Whirlpool Endcap
93400859 Whirlpool Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Bumper, Lint Lid
15WP693995 Whirlpool Screw
16Top
16Top (Almond)
16Top (Biscuit)
17WP3394427 Whirlpool Clip
19WP94614 Whirlpool Terminal
20279872 Whirlpool Resistor
21WP3976584 Whirlpool Timer Assembly
22WP357213 Whirlpool Hinge Stopper
23Harness, Wiring
24WP3395382 Whirlpool Push To Start Switch
25WP3957754 Whirlpool Knob Assembly
25WP3957755 Whirlpool Knob
26Bracket, Control
27Panel, Control (Almond)
27Panel, Control (Biscuit)
27Panel, Control (White)
2872017 Whirlpool Appliance Touch-Up Paint White
28350956 Whirlpool Spray Assembly
28350938 Whirlpool Spray Gun
284392901 Whirlpool Biscuit Spray Paint
28799344 Whirlpool Refrigerator Paint
28WP72107 Whirlpool Touchup
28Almond (Uncut)
28350930 Whirlpool White Spray Paint
284392899 Whirlpool Biscuit Touch-Up Paint
28WPL 8271349
28PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
283957804 Whirlpool Knob
28WPL 8271342
