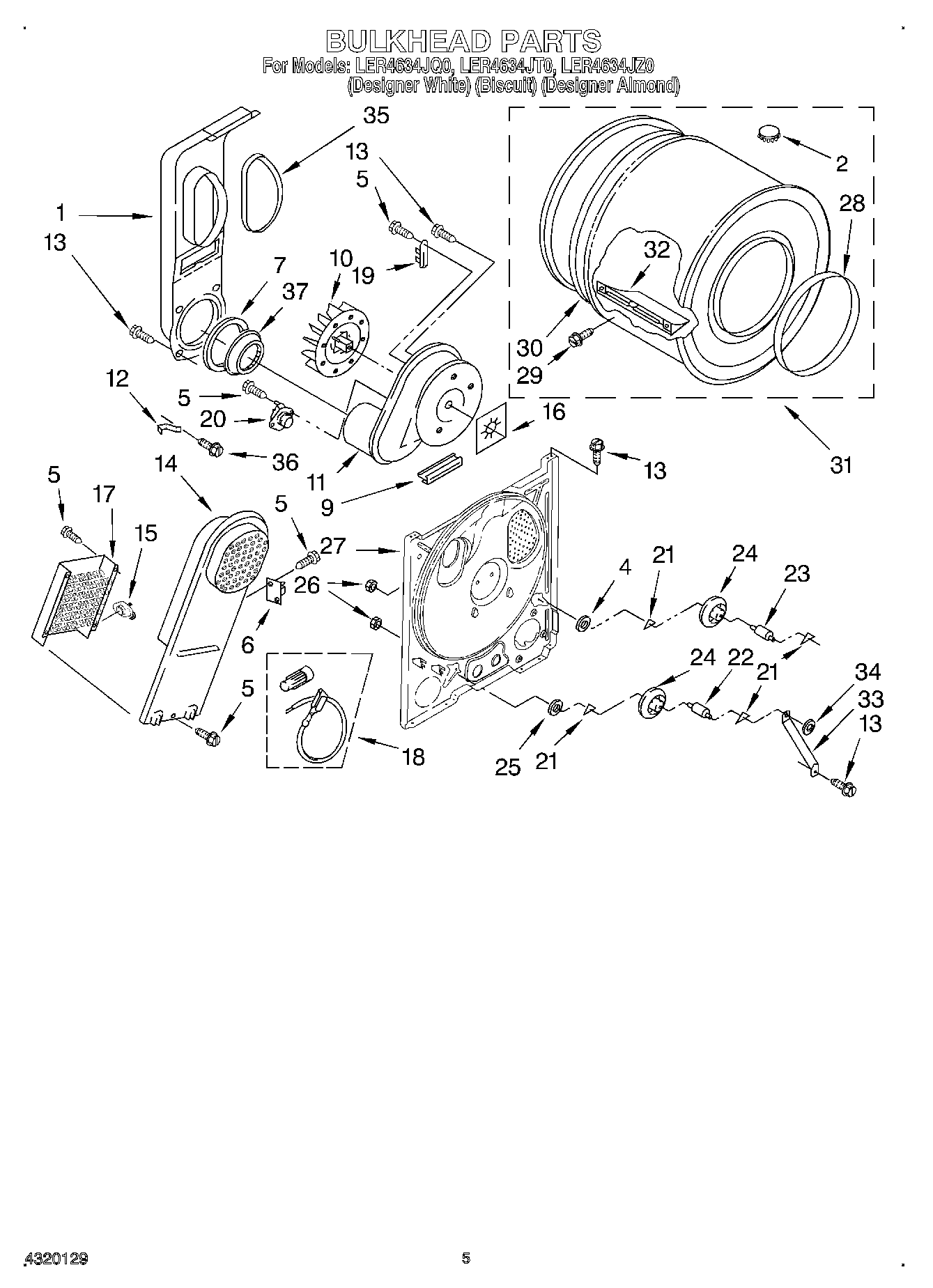

LER4634JZ0 03 – SECTION

Products

PositionProduct
1279505 Whirlpool Chute
28066086 Whirlpool Plug
4WP3388703 Whirlpool Washer
5WP90767 Whirlpool Screw
6279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7W11415783 Whirlpool Seal
9686889 Whirlpool Pad
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
16Seal, Blower
17279838 Whirlpool Dryer Heating Element 5400W
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19WP3392519 Whirlpool Dryer Thermal Fuse
20WP3387134 Whirlpool Dryer Cycling Thermostat
21WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
22SHAFT SUPPORT ROLLER DRYER
23SHAFT SUPPORT ROLLER DRYER
24349241T Whirlpool Dryer Drum Support Roller Kit
25WP348197 Whirlpool Washer Assembly
26WP3359452 Whirlpool Nut
27Bulkhead
28WP3394509 Whirlpool Bearing Ring
29WPW10109200 Whirlpool Screw
30239087 Whirlpool Dryer Rear Drum Seal Green Stitches
31697760 Whirlpool Drum Assembly Primary OS2
32WP342847 Whirlpool Drum Baffle
33Bracket, Support
34WP90296 Whirlpool Clip
35SEAL
36WP489463 Whirlpool Refrigerator Screw
37W11233063 Whirlpool Shield Assembly
