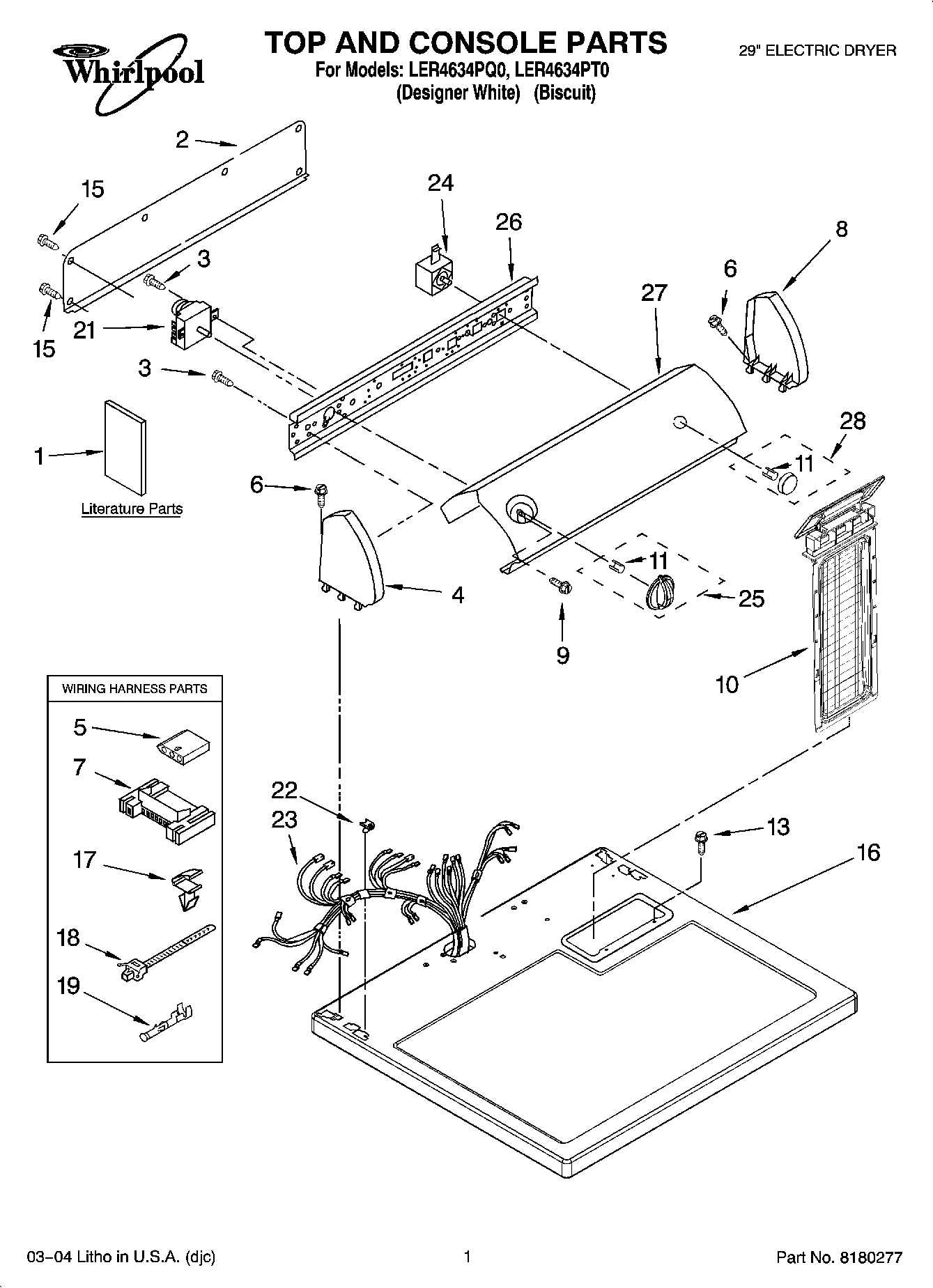

LER4634PQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Dryer
1	Literature Parts (Label, Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Sheet, Cycle Feature)
1	Literature Parts (Installation Instructions)
1	Following May Be Purchased
1	DO-IT-YOURSELF REPAIR MANUALS
2	W10103406 Whirlpool Rear Panel
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (BIscuit)
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3395683 Whirlpool Connector
8	WPL 8271362
8	W10820038 Whirlpool Endcap
9	3400859 Whirlpool Screw
10	WP8557862 Whirlpool Screen
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top
16	Top
17	WP3394427 Whirlpool Clip
18	Tie, Cable
19	WP94614 Whirlpool Terminal
21	WP8299778 Whirlpool Timer
22	WP357213 Whirlpool Hinge Stopper
23	WPW10450292 Whirlpool Wire Harness
24	WP3977456 Whirlpool Start Switch
25	Timer Knob Assembly (Biscuit)
25	W10756270 Whirlpool Dryer Timer Knob
26	Bracket, Control
27	Panel, Control (White)
27	Panel, Control (Biscuit)
28	72017 Whirlpool Appliance Touch-Up Paint White
28	WP8544941 Whirlpool Knob
28	WP8544939 Whirlpool Knob Assembly
28	350938 Whirlpool Spray Gun
28	799344 Whirlpool Refrigerator Paint
28	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
28	WP689790 Whirlpool Dryer Rack
28	350930 Whirlpool White Spray Paint
28	W11224254 Whirlpool Test Kit
28	4392065 Whirlpool Dryer Maintenance Kit
28	4392899 Whirlpool Biscuit Touch-Up Paint
28	4392901 Whirlpool Biscuit Spray Paint
28	WPL ARI117601A
