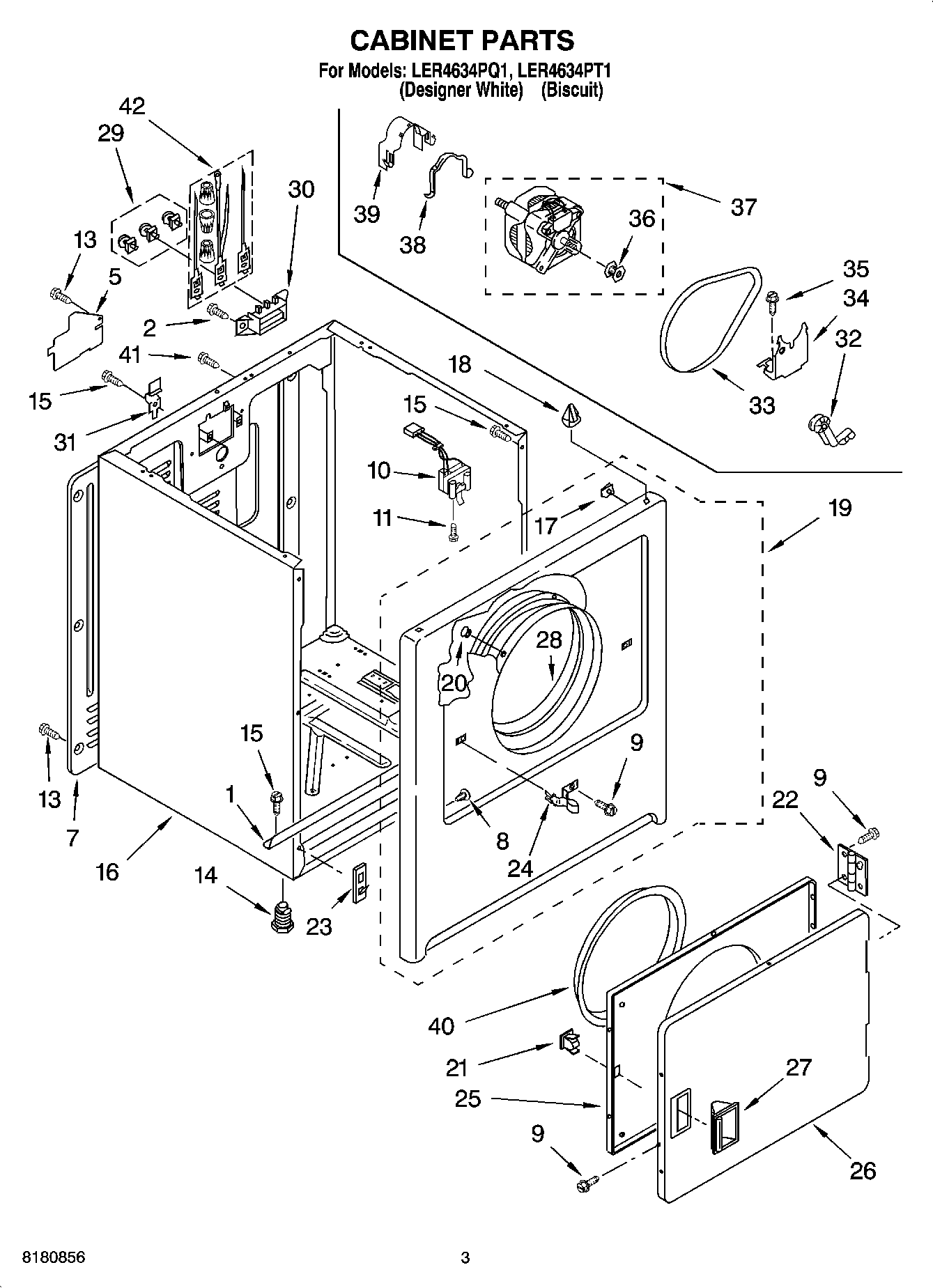

LER4634PQ1 02 – CABINET PARTS

Products

Position	Product
1	Bracket, Cabinet
2	WP308685 Whirlpool Microwave Screw
5	W11539855 Whirlpool Refrigerator Pump
7	280040 Whirlpool Rear Panel
8	Plug, Hinge Hole (4) (Biscuit)
8	WP3404413 Whirlpool Plug
9	WP488627 Whirlpool Refrigerator Screw
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
13	WP693995 Whirlpool Screw
14	49621 Whirlpool Leveling Feet
15	SCREW
16	8533643 Whirlpool Dryer White Cabinet
16	Cabinet (Biscuit)
17	WP98234 Whirlpool Nut
18	WP18776 Whirlpool Lock
19	Panel Front Assembly
19	Front Panel Assembly (Biscuit)
20	279220 Whirlpool Clip
21	279570 Whirlpool Dryer Door Latch Kit
22	WPW10362431 Whirlpool Hinge Assembly
23	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
25	Door, Rear
26	WP3403361 Whirlpool Door
26	WP3403363 Whirlpool Door
27	WP3405184 Whirlpool White Door Handle
27	WP3405189 Whirlpool Handle
28	279264 Whirlpool Bearing and Seal Kit
29	279393 Whirlpool Terminal Block Screw and Nut Kit
30	WP3397659 Whirlpool Terminal Block
31	WP8066217 Whirlpool Hinge
32	WP691366 Whirlpool Dryer Idler Pulley Assembly
33	341241 Whirlpool Dryer Drum Belt
34	WP348780 Whirlpool Base
35	3400500 Whirlpool Screw
36	WP8066184 Whirlpool Dryer Motor Pulley
37	279827 Whirlpool Dryer Drive Motor
38	WP660658 Whirlpool Clamp
39	WP3404162 Whirlpool Clamp
40	SEAL-DOOR DRYER
41	W10850756 Whirlpool Screw
42	279318 Whirlpool Terminal
