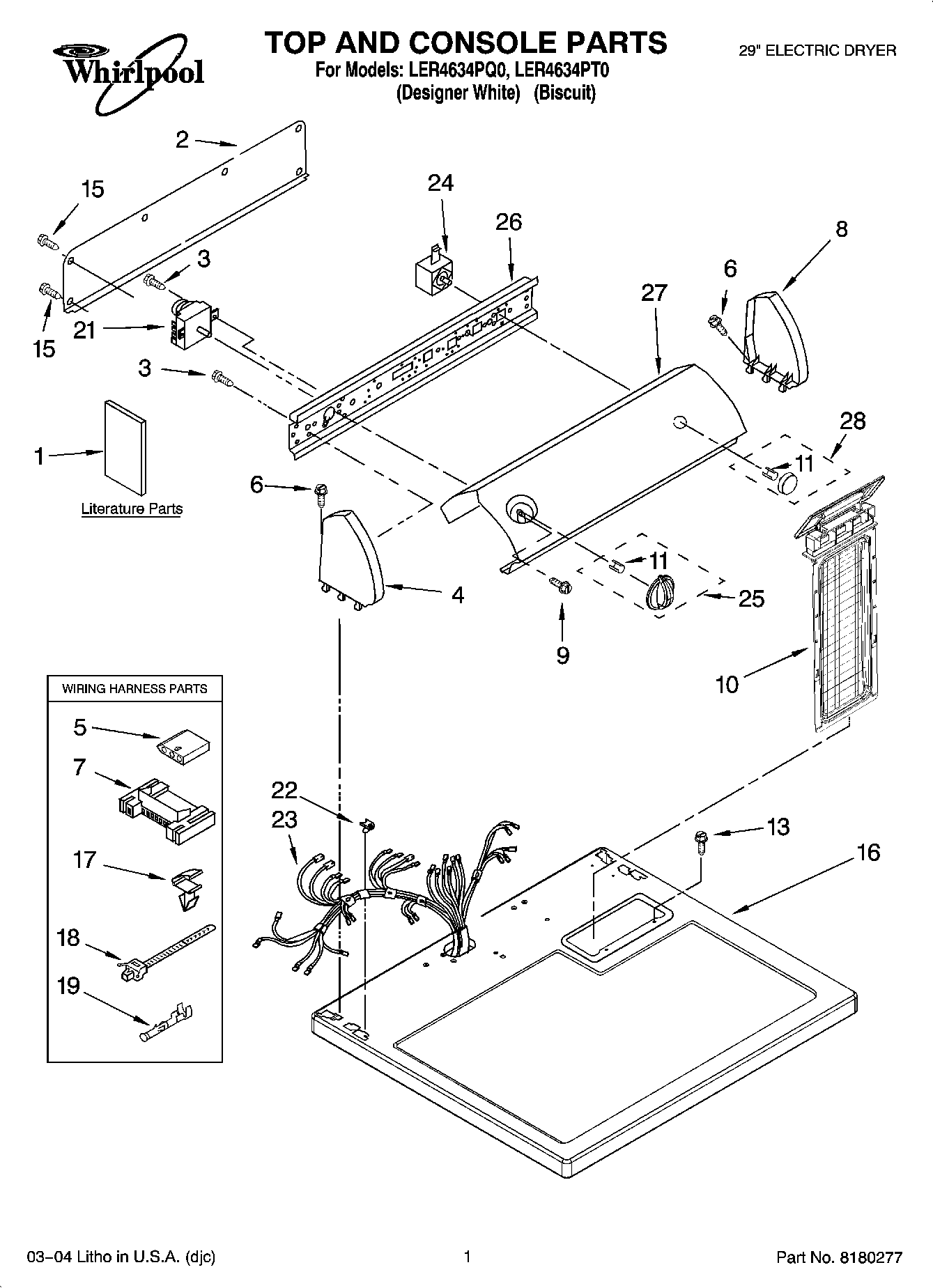

LER4634PT0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Dryer
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Use & Care Guide)
1DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Installation Instructions)
1Following May Be Purchased
2W10103406 Whirlpool Rear Panel
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8WPL 8271362
8W10820038 Whirlpool Endcap
93400859 Whirlpool Screw
10WP8557862 Whirlpool Screen
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16Top
16Top
17WP3394427 Whirlpool Clip
18Tie, Cable
19WP94614 Whirlpool Terminal
21WP8299778 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23WPW10450292 Whirlpool Wire Harness
24WP3977456 Whirlpool Start Switch
25W10756270 Whirlpool Dryer Timer Knob
25Timer Knob Assembly (Biscuit)
26Bracket, Control
27Panel, Control (Biscuit)
27Panel, Control (White)
28WP8544941 Whirlpool Knob
28350938 Whirlpool Spray Gun
28WPL ARI117607A
2872017 Whirlpool Appliance Touch-Up Paint White
284392901 Whirlpool Biscuit Spray Paint
284392899 Whirlpool Biscuit Touch-Up Paint
284392065 Whirlpool Dryer Maintenance Kit
28W11224254 Whirlpool Test Kit
28350930 Whirlpool White Spray Paint
28WP689790 Whirlpool Dryer Rack
28PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
28799344 Whirlpool Refrigerator Paint
28WP8544939 Whirlpool Knob Assembly
