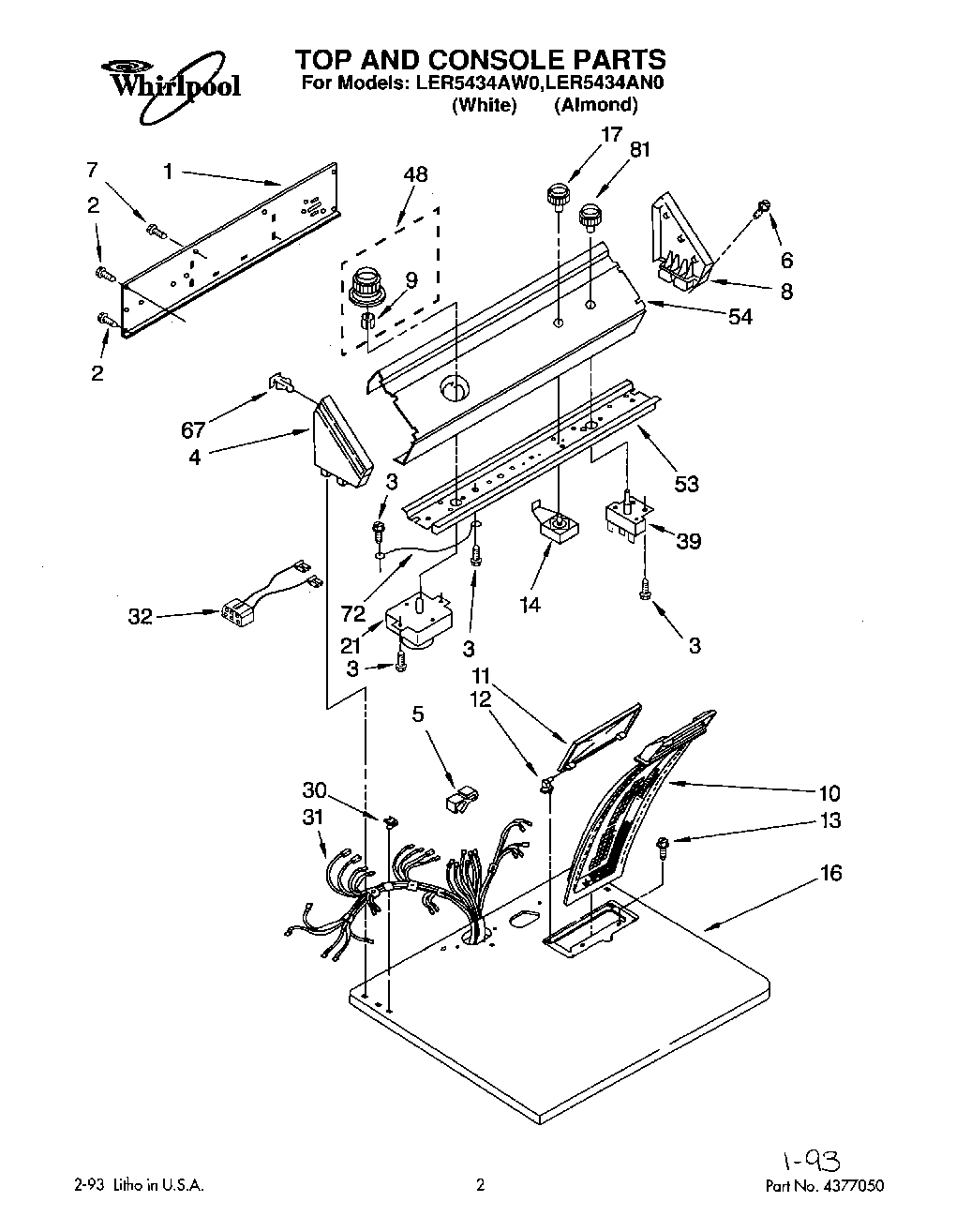

LER5434AW0 01 – SECTION

Products

Position	Product
	List, Service Parts
	Instructions, Installation
	Use & Care Guide
	Dryer
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	350930 Whirlpool White Spray Paint
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
5	Clip, Retainer
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.) (Almond)
9	WP688805 Whirlpool Spring Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Switch, Temperature
16	Top (Almond)
16	Top (White)
17	KNOB
21	WP3396215 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8283286 Whirlpool Wire Harness
39	Switch, Push-To-Start
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
67	WP689559 Whirlpool Nut
72	Wire, Ground
81	Knob, Push To Start
