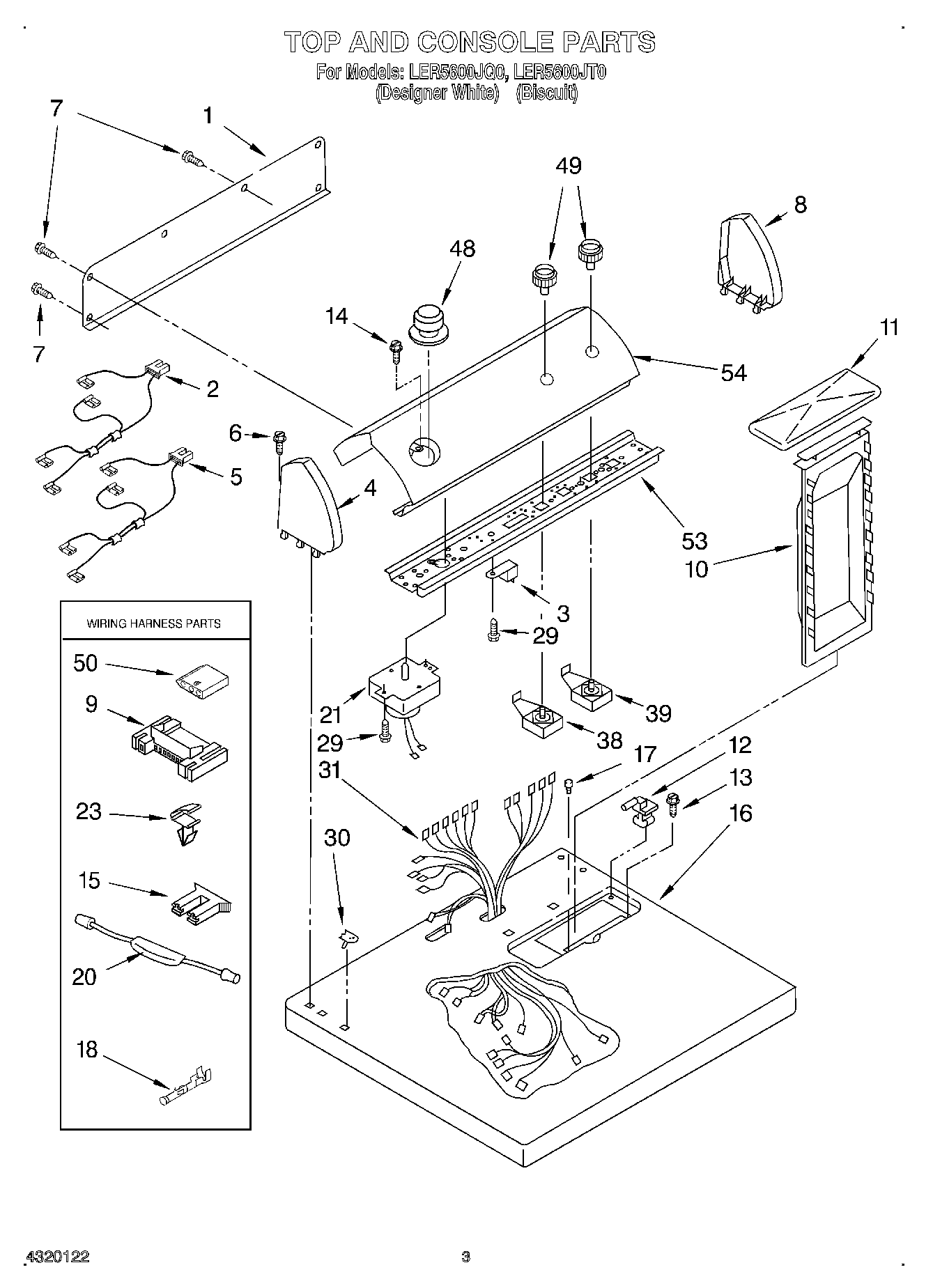

LER5600JT0 02 – SECTION

LER5600JT0 02 – SECTION

Written by

in

LER5600JT0 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
28283286 Whirlpool Wire Harness
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Wire, Jumper
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
8WPL 8271362
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153354925 Whirlpool Connector
16Top (Biscuit)
16Top
17Bumper, Lint Lid
18WP94614 Whirlpool Terminal
20279872 Whirlpool Resistor
21WP3976575 Whirlpool Timer
23WP3394427 Whirlpool Clip
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
383399638 Whirlpool Switch
39Switch, Push-To-Start
48WP3957755 Whirlpool Knob
48WP3957754 Whirlpool Knob Assembly
49WP3957799 Whirlpool Knob
493957797 Whirlpool Knob
503936144 Whirlpool Connector
53Bracket, Control
544392899 Whirlpool Biscuit Touch-Up Paint
54Panel, Control (Biscuit)
54Panel, Control (White)
5472017 Whirlpool Appliance Touch-Up Paint White
54350930 Whirlpool White Spray Paint
54799344 Whirlpool Refrigerator Paint
544392901 Whirlpool Biscuit Spray Paint
54PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
54350938 Whirlpool Spray Gun
