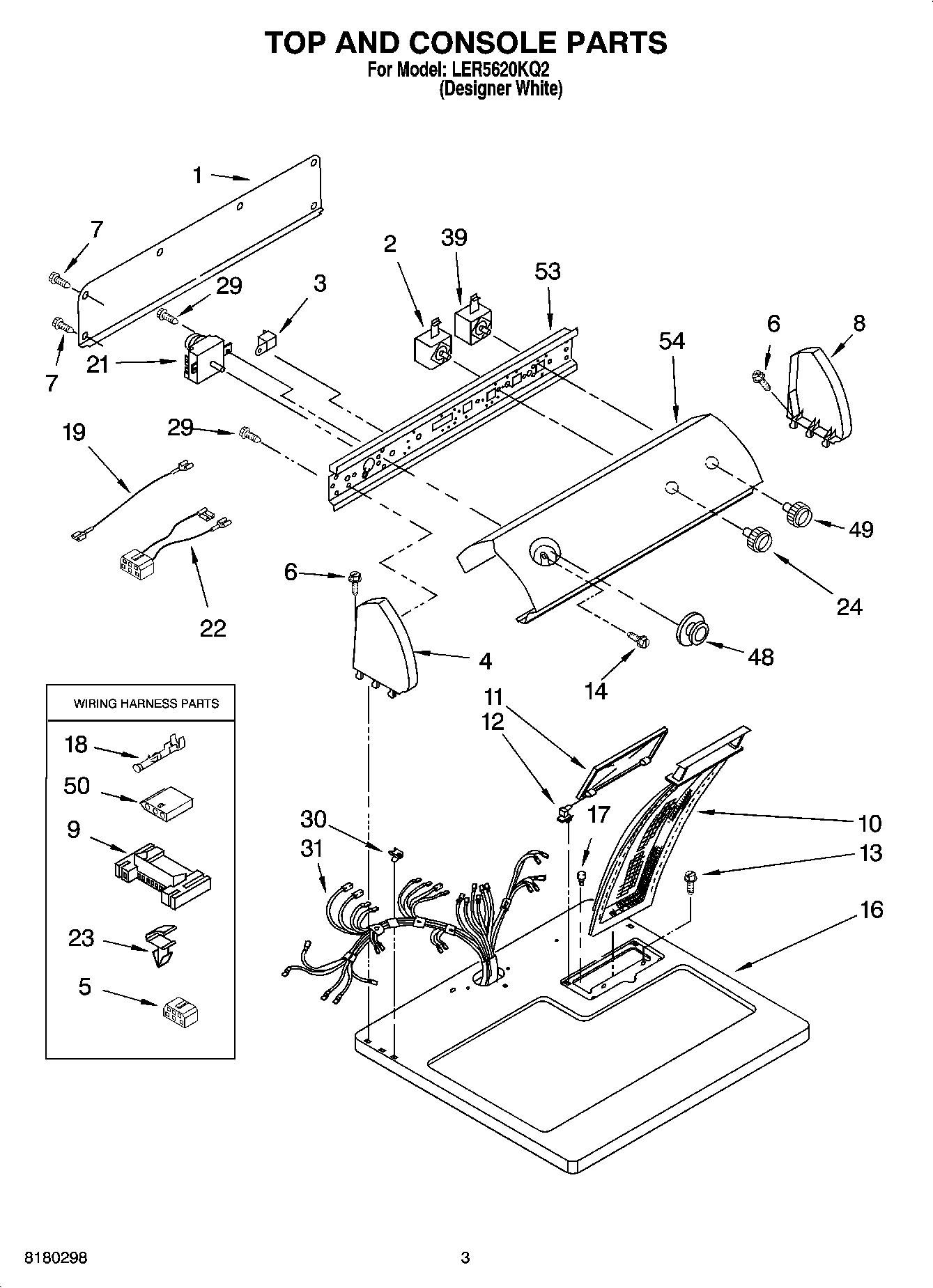

LER5620KQ2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
23405152 Whirlpool Switch Assembly
3WP694419 Whirlpool Buzzer Adjuster
5Block, Disconnect
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
16Top
17Bumper, Lint Lid
18WP94614 Whirlpool Terminal
19Wire, Jumper (Black)
21WP8299778 Whirlpool Timer
22Wire, Jumper (Guard On/Off)
23WP3394427 Whirlpool Clip
24WP3957799 Whirlpool Knob
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3977456 Whirlpool Start Switch
48WP3957754 Whirlpool Knob Assembly
493957804 Whirlpool Knob
503936144 Whirlpool Connector
53Bracket, Control
54Panel, Control
543404351 Whirlpool Dryer Rack
54W11224254 Whirlpool Test Kit
544392065 Whirlpool Dryer Maintenance Kit
54350930 Whirlpool White Spray Paint
54799344 Whirlpool Refrigerator Paint
5472017 Whirlpool Appliance Touch-Up Paint White
54350938 Whirlpool Spray Gun
54ACCESSORY PARTS
