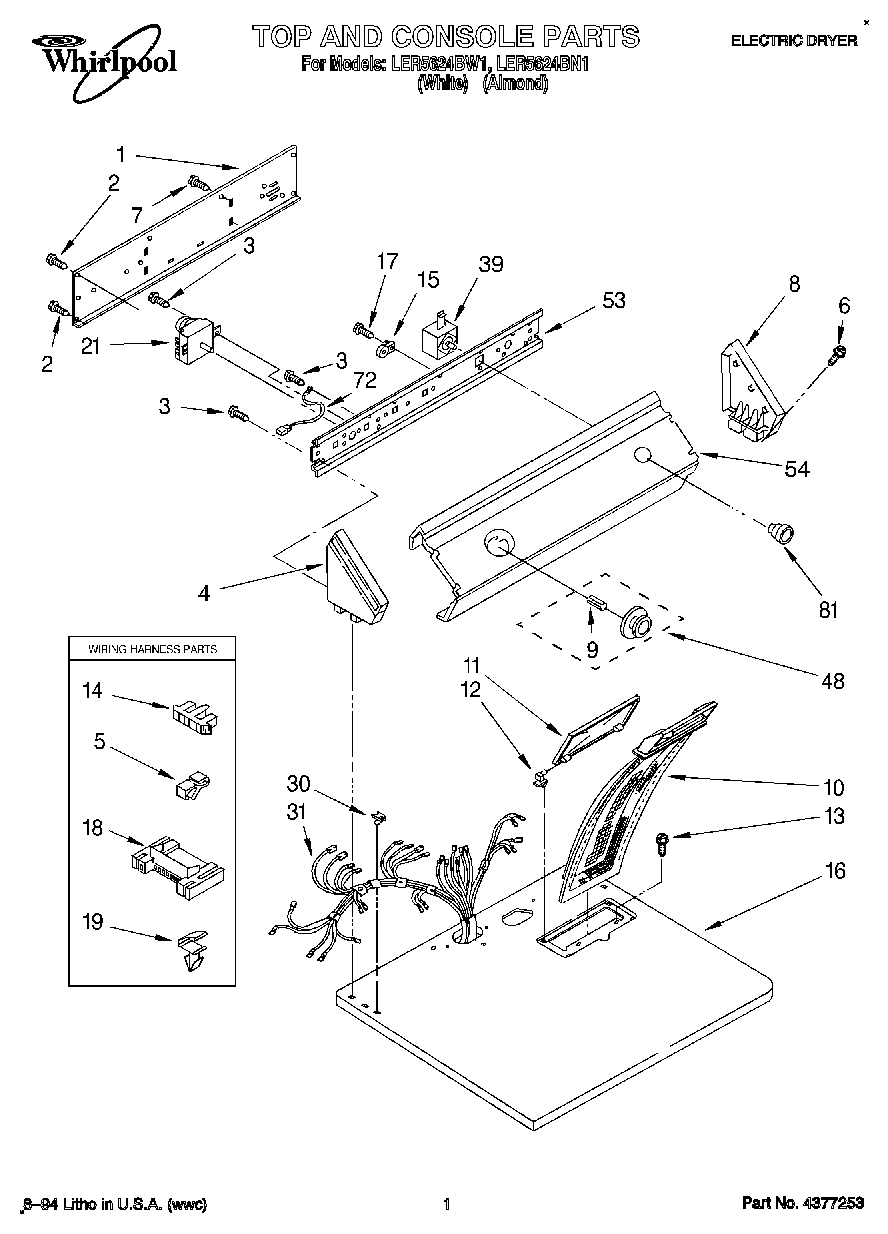

LER5624BW1 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	Label, Wiring Diagram
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Dryer
	72017 Whirlpool Appliance Touch-Up Paint White
	Instructions, Installation
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Guide, Use & Care
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
5	Clip, Retainer
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.) (White)
9	WP688805 Whirlpool Spring Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Connector, Timer
15	279872 Whirlpool Resistor
16	Top (Almond)
16	Top (White)
17	WP488729 Whirlpool Refrigerator Door Screw
18	3395683 Whirlpool Connector
19	WP3394427 Whirlpool Clip
21	WP3976568 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
81	Knob, Push To Start
