LER5624DQ0 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
350938 Whirlpool Spray Gun
Label, Wiring Diagram
Guide, Use & Care
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Dryer
Instructions, Installation

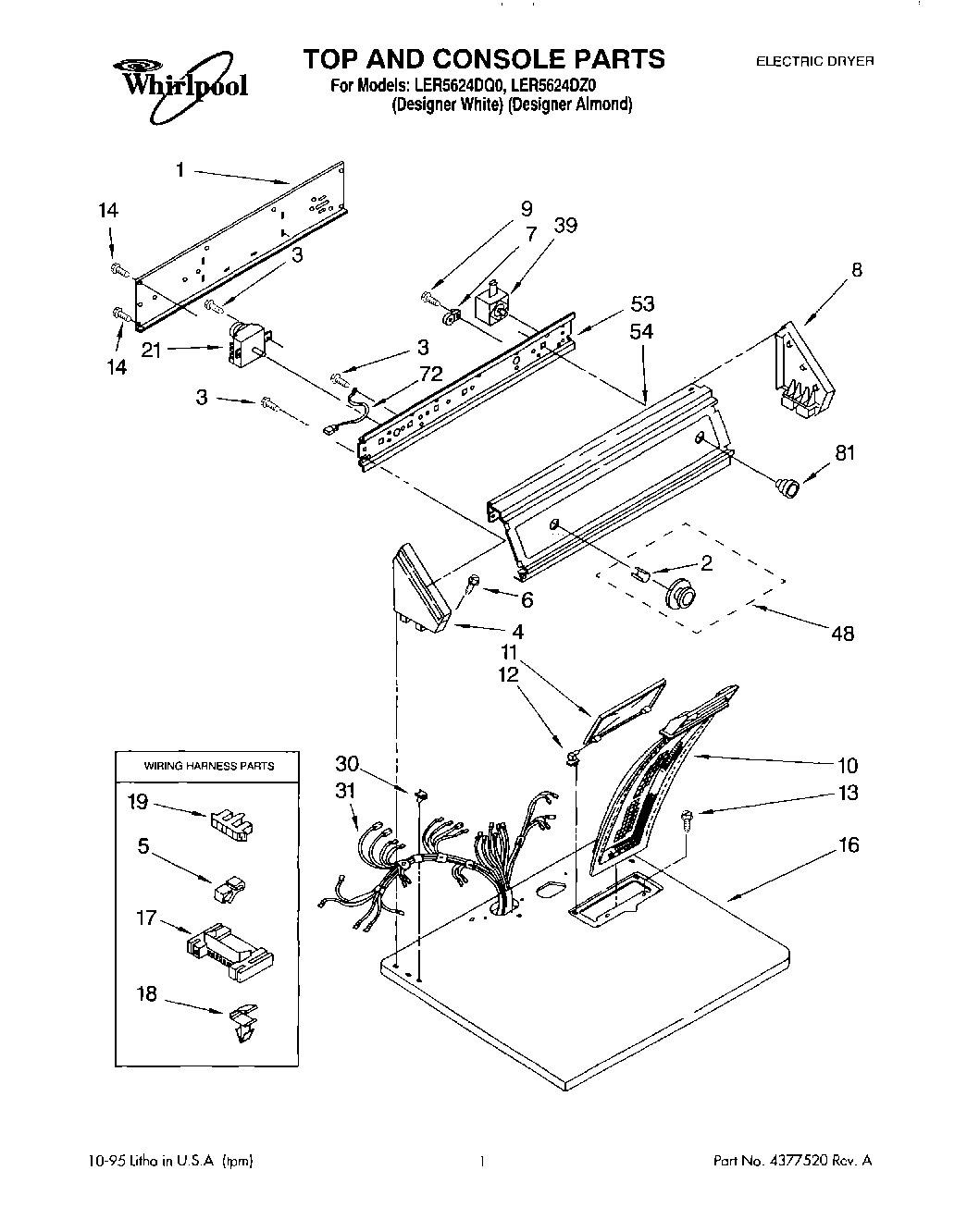

1Panel, Rear Console
2WP688805 Whirlpool Spring Clip
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.)
4Cap, End (L.H.) (Almond)
5Clip, Retainer
6WP388326 Whirlpool Screw
7279872 Whirlpool Resistor
8Cap, End (R.H.) (Almond)
8Cap, End (R.H.)
9WP488729 Whirlpool Refrigerator Door Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP693995 Whirlpool Screw
16Top (Almond)
16Top (White)
173395683 Whirlpool Connector
18WP3394427 Whirlpool Clip
19Connector, Timer
21WP3976568 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
53Bracket, Control
54Panel, Control (LGR5624DQ1)
54Panel, Control (LGR5624DZ1)
72Wire, Ground
81WP3957800 Whirlpool Knob
